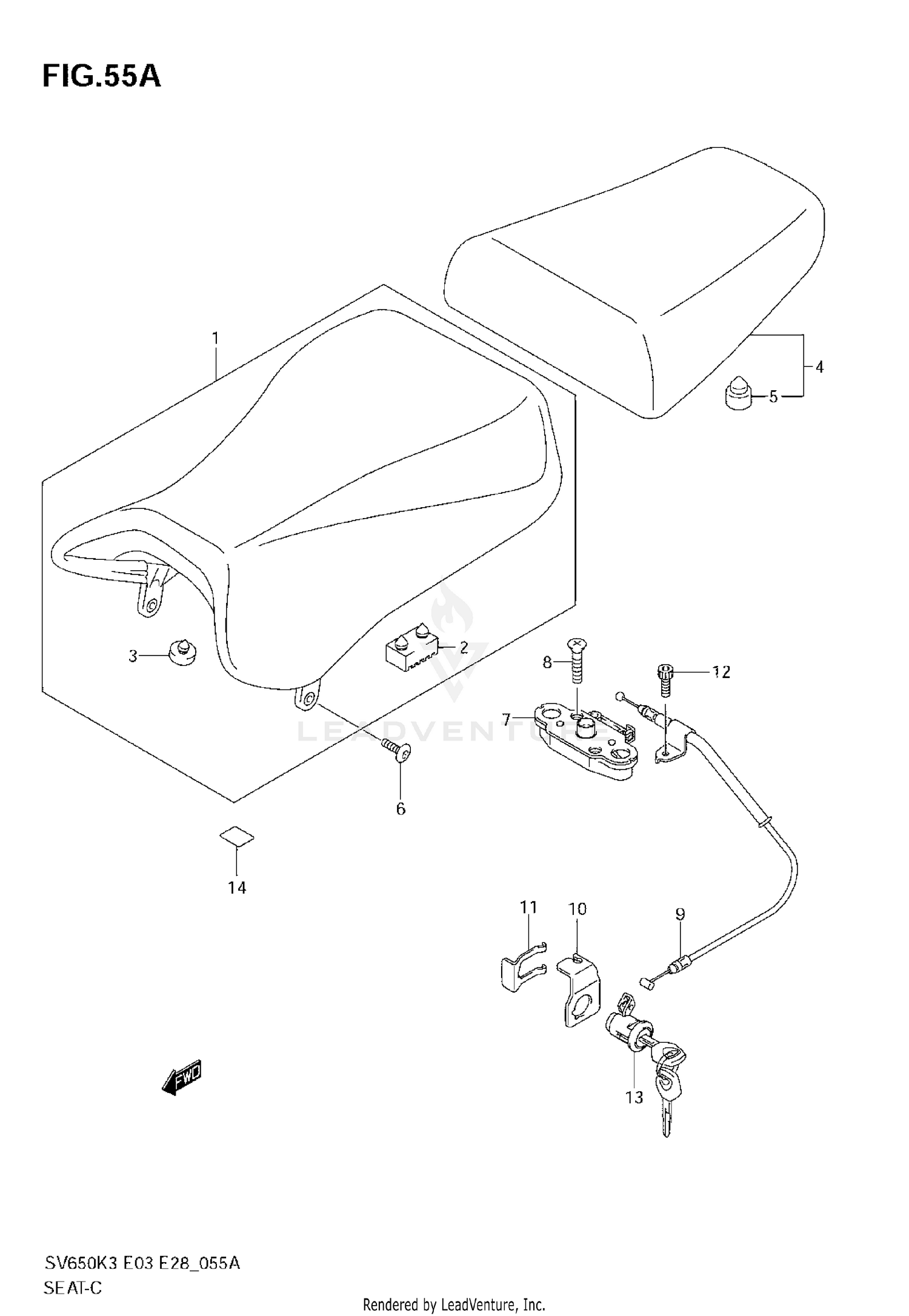

Seat (model K4/k5/k6/k7) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT ASSY
45100-16G40-W05
Superseded by 45100-16G42-W05
|
$225.31 | ||
|
Available to order. Add to View Price |
|||
|
#1
SEAT ASSY
45100-16GA0-W05
|
|||
|
Unavailable |
|||
|
#2
CUSHION
45149-42F00
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#3
.CUSHION (11.5X22X20)
45148-16700
Superseded by 09321-10002
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#4
SEAT ASSY,PILLI
45300-16G00-W05
Superseded by 45300-16G01-W05
|
$232.72 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUSHION
09321-10019
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, SEAT
09106-06064
|
$7.33 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, SEAT SUPPORT
45220-20A01
Superseded by 45220-47H00
|
$149.46 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
02122-06353
Superseded by 02122-0635B
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#9
CABLE,SEAT LOCK
45280-16G00
Superseded by 45280-16G01
|
$31.26 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUIDE, SEAT LOCK CABLE
45288-14F00
|
$6.63 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLATE, SEAT LOCK ASSY
45289-11F00
|
$7.66 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
07130-0616A
Superseded by 07130-0616B
|
$2.87 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
LOCK SET, SEAT
95700-14810
|
$132.54 | ||
|
Available to order. Add to View Price |
|||
|
#14
TAPE (30X40X0.2)
45517-16G20
|
$12.06 | ||
|
Available to order. Add to View Price |
|||
