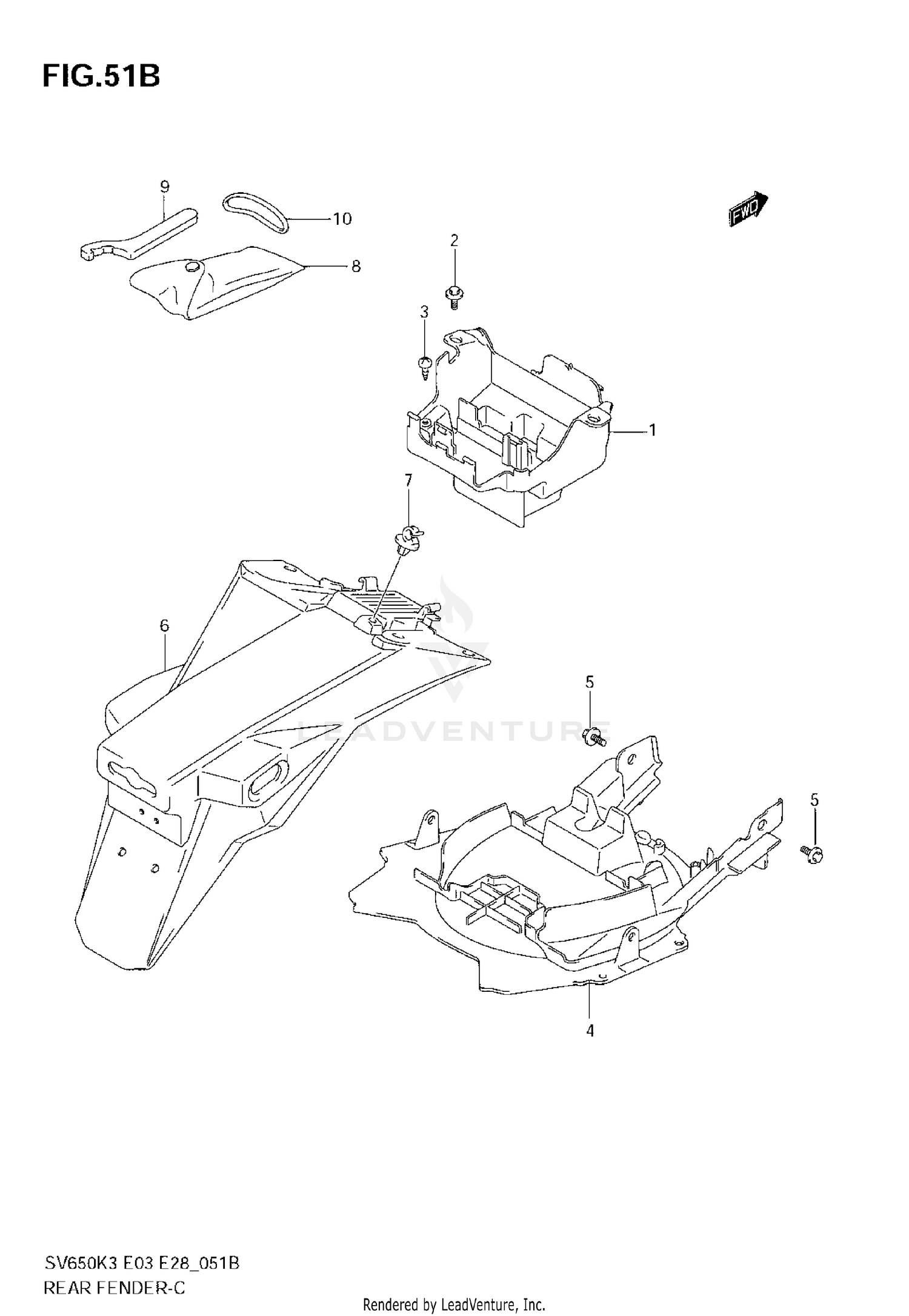

Rear Fender (with Abs) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOLDER, BATTERY
47431-16GC0
|
|||
|
Unavailable |
|||
|
#2
BOLT (6X12)
63161-43E00
Superseded by 09111-06107
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW
03541-05163
Superseded by 03541-0516A
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
FENDER, REAR FRONT
63111-16GC0
|
$148.03 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
09116-06210
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
FENDER, REAR REAR
63112-16GC0
|
$83.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP
09403-07325
|
$3.54 | ||
|
Available to order. Add to View Price |
|||
|
#8
TOOL ASSY
09800-21035
|
$117.48 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP, WRENCH
09822-00004
|
$15.16 | ||
|
Available to order. Add to View Price |
|||
|
#10
O RING(D:3.5,ID
09280-61002
Superseded by 09280-61004
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
