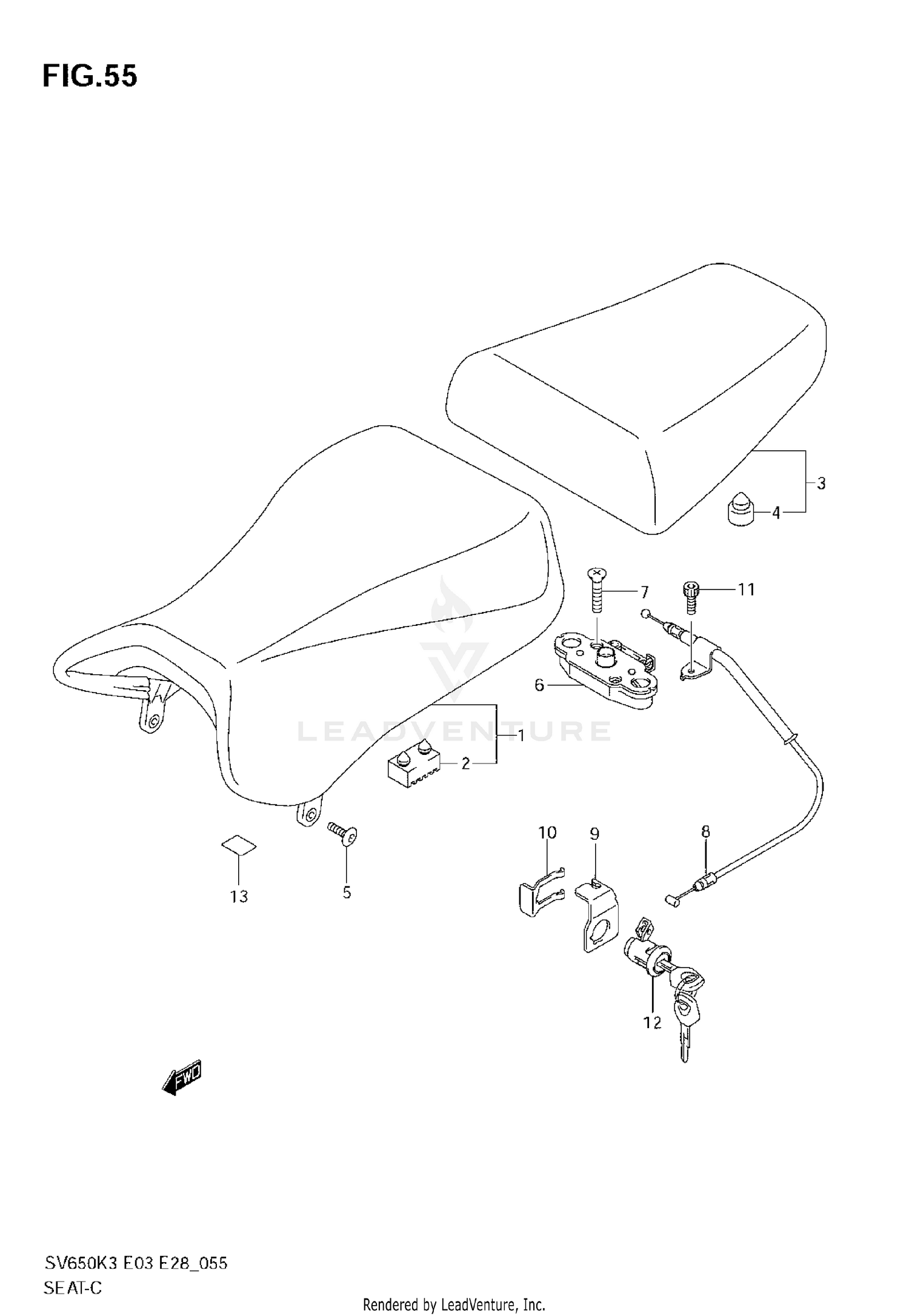

Seat (model K3) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT ASSY(BLACK
45100-16G20-W05
Superseded by 45100-16G21-W05
|
$165.11 | ||
|
Available to order. Add to View Price |
|||
|
#2
CUSHION
45149-42F00
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAT ASSY,PILLI
45300-16G00-W05
Superseded by 45300-16G01-W05
|
$242.03 | ||
|
Available to order. Add to View Price |
|||
|
#4
CUSHION
09321-10019
|
$6.14 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, SEAT
09106-06064
|
$7.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, SEAT SUPPORT
45220-20A01
Superseded by 45220-47H00
|
$155.44 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
02122-06303
Superseded by 02122-0630B
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#8
CABLE,SEAT LOCK
45280-16G00
Superseded by 45280-16G01
|
$32.67 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUIDE, SEAT LOCK CABLE
45288-14F00
|
$6.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, SEAT LOCK ASSY
45289-11F00
|
$8.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
07130-06123
Superseded by 07130-0612A
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#12
LOCK SET, SEAT
95700-14810
|
$137.84 | ||
|
Available to order. Add to View Price |
|||
|
#13
TAPE (30X40X0.2)
45517-16G20
|
$12.60 | ||
|
Available to order. Add to View Price |
|||
