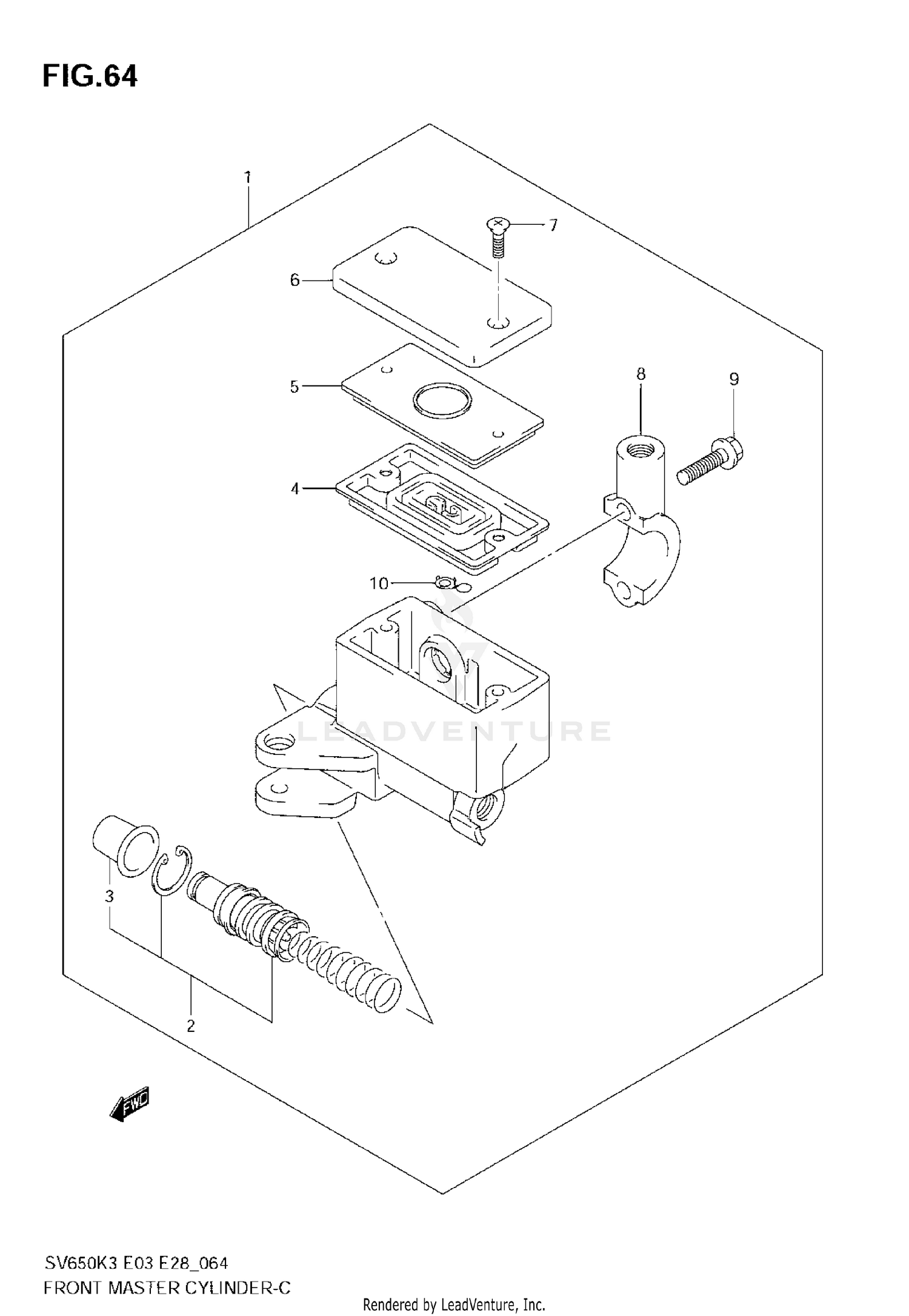

Front Master Cylinder (sv650k3/k4/k5/k6/k7) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER ASSY, FRONT MASTER
59600-42F00
|
$346.29 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON/CUP SET
59600-45860
|
$50.97 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOOT
59666-44300
|
$7.48 | ||
|
Available to order. Add to View Price |
|||
|
#4
DIAPHRAGM
59667-49460
|
$12.63 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, DIAPHRAGM
59668-41C00
|
$12.04 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP
59669-10G00
|
$43.23 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
69689-49300
|
$2.12 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOLDER
59671-32F00
|
$25.21 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (6X22)
59675-02FA0
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#10
PROTECTOR
59664-32F00
|
$13.20 | ||
|
Available to order. Add to View Price |
|||
