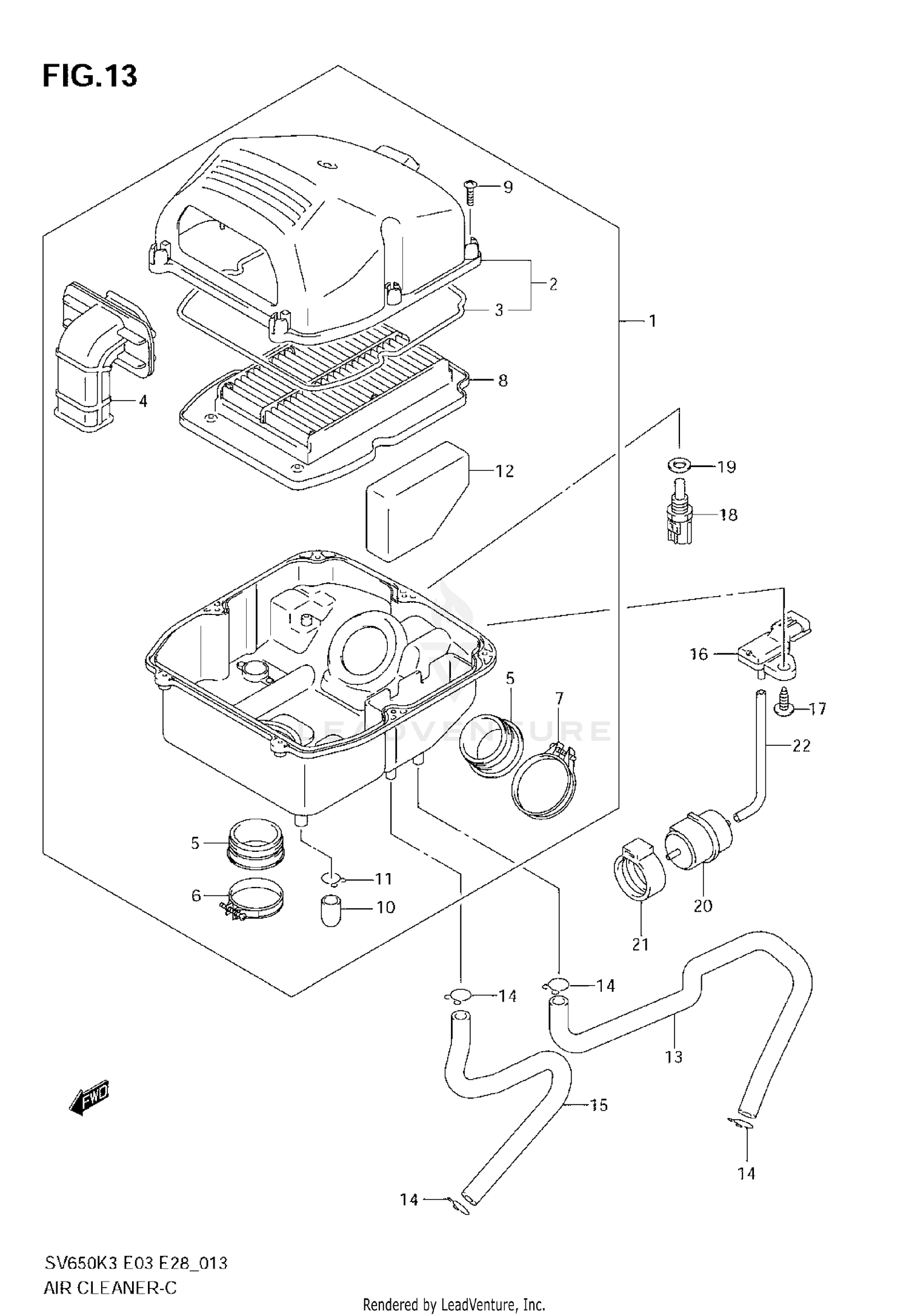

Air Cleaner (model K3/k4/k5/k6) Diagram

Item MSRP Qty
#1 CLEANER ASSY, AIR
13700-17G00
$280.35
Available to order.
Add to View Price
#2 CAP,AIR CLEANER
13740-16G00
Superseded by 13740-16G01
$46.58
Available to order.
Add to View Price
#3 GASKET
13746-16G00
$10.32
Available to order.
Add to View Price
#4 TUBE,INLET
13891-17G00
Superseded by 13891-17G01
$53.16
Available to order.
Add to View Price
#5 TUBE,OUTLET
13881-17G00
Superseded by 13881-17G01
$13.55
Available to order.
Add to View Price
#6 CLAMP, CUTLET TUBE FRONT
13826-17G00
$7.18
Available to order.
Add to View Price
#7 CLAMP, OUTLET TUBE REAR
13826-17G00
$7.18
Unavailable
#8 FILTER, AIR CLEANER
13780-16G00
$41.05
Available to order.
Add to View Price
#9 .SCREW
03541-05203
Superseded by 03541-0520A
$2.20
Available to order.
Add to View Price
#10 .PLUG
13859-41B10
$9.37
Available to order.
Add to View Price
#11 CLIP
09401-14301
$2.45
Available to order.
Add to View Price
#12 FILTER, BREATHER
13788-17G00
$11.97
Available to order.
Add to View Price
#13 TUBE, BREATHER CRANKCASE
13851-17G00
$24.92
Available to order.
Add to View Price
#14 CLIP (ID:15.5)
09401-15101
$2.75
Available to order.
Add to View Price
#15 TUBE, BREATHER CYLINDER
13851-17G10
$20.08
Available to order.
Add to View Price
#16 SENSOR COMP, BOOST
18590-17G01
$408.90
Available to order.
Add to View Price
#17 SCREW
03541-05163
Superseded by 03541-0516A
$1.65
Available to order.
Add to View Price
#18 SENSOR AIR TEMP
13650-57F00
$131.29
Available to order.
Add to View Price
#19 GASKET
09168-12017
$2.37
Available to order.
Add to View Price
#20 CHAMBER, VACUUM
13715-06G00
$17.14
Unavailable
#21 BAND, VACUUM CHAMBER
13912-17G00
$4.56
Unavailable
#22 HOSE (3.5X7.5X600)
09355-35755-600
Superseded by 09355-35007-600
$8.57
Available to order.
Add to View Price
