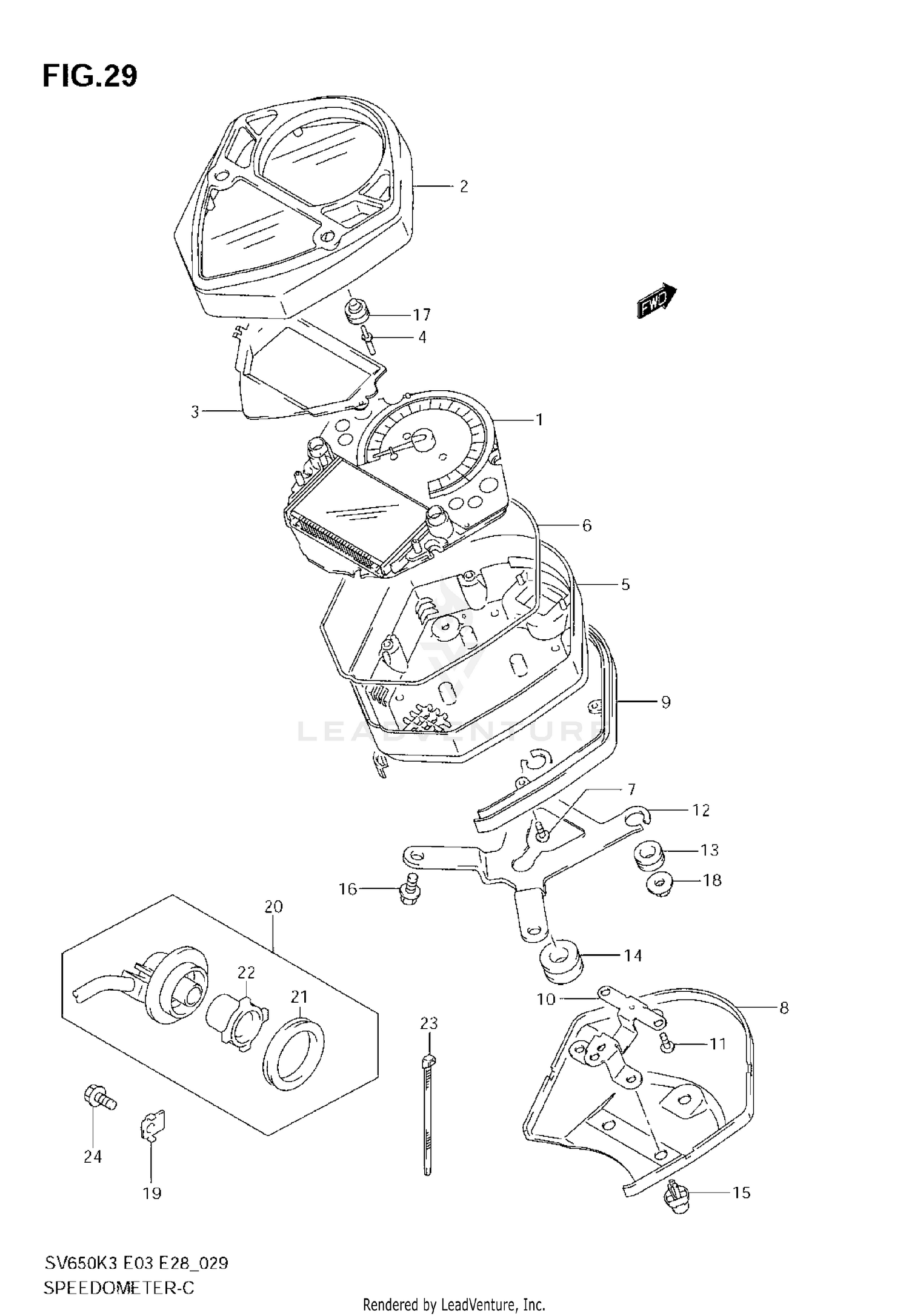

Speedometer (sv650k3/k4) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER (MILE/KILO)
34120-17G20
|
$700.34 | ||
|
Unavailable |
|||
|
#1
SPEEDOMETER (KILO)
34120-17G00
|
|||
|
Unavailable |
|||
|
#2
CASE, SPEEDOMETER UPPER
34150-16G30
|
$178.57 | ||
|
Available to order. Add to View Price |
|||
|
#3
PLATE, SPEEDOMETER
34125-16G00
|
$12.10 | ||
|
Available to order. Add to View Price |
|||
|
#4
KNOB, SPEEDOMETER
34124-16G00
|
$10.63 | ||
|
Available to order. Add to View Price |
|||
|
#5
CASE, SPEEDOMETER LOWER
34152-16G00
|
$63.77 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, METER CASE
34153-16G00
|
$17.23 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, SPEEDOMETER
34183-16G30
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, SPEEDOMETER LOWER
34156-16G30
|
$79.80 | ||
|
Available to order. Add to View Price |
|||
|
#9
DECORATION PLATE, METER CASE
34157-16G30
|
$93.73 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOLDER, SPEEDOMETER
34195-16G30
|
$27.18 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
34149-16B00
|
$2.26 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, SPEEDOMETER CASE
34162-16G30
|
$63.77 | ||
|
Available to order. Add to View Price |
|||
|
#13
.CUSHION
34996-43410
|
$4.93 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION,SPEEDOMETER
34955-13E00
Superseded by 34955-13E01
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP (6.8X16.7)
09409-07332
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT
07120-06163
Superseded by 07120-0616B
|
$3.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
COVER
34126-16G00
|
$8.65 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
09159-05044
Superseded by 09159-05049
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#19
GUIDE,SENSOR LEAD
34938-14F00
|
$7.12 | ||
|
Available to order. Add to View Price |
|||
|
#20
SENSOR,SPEED
34990-17G00
Superseded by 34990-17G20
|
$277.65 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAL, SENSOR OIL
09286-44001
|
$14.93 | ||
|
Available to order. Add to View Price |
|||
|
#22
MAGNET
34983-21E00
|
$40.22 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP (L:145)
09407-14407
|
$3.83 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
01547-06123
Superseded by 01547-0612B
|
$1.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
