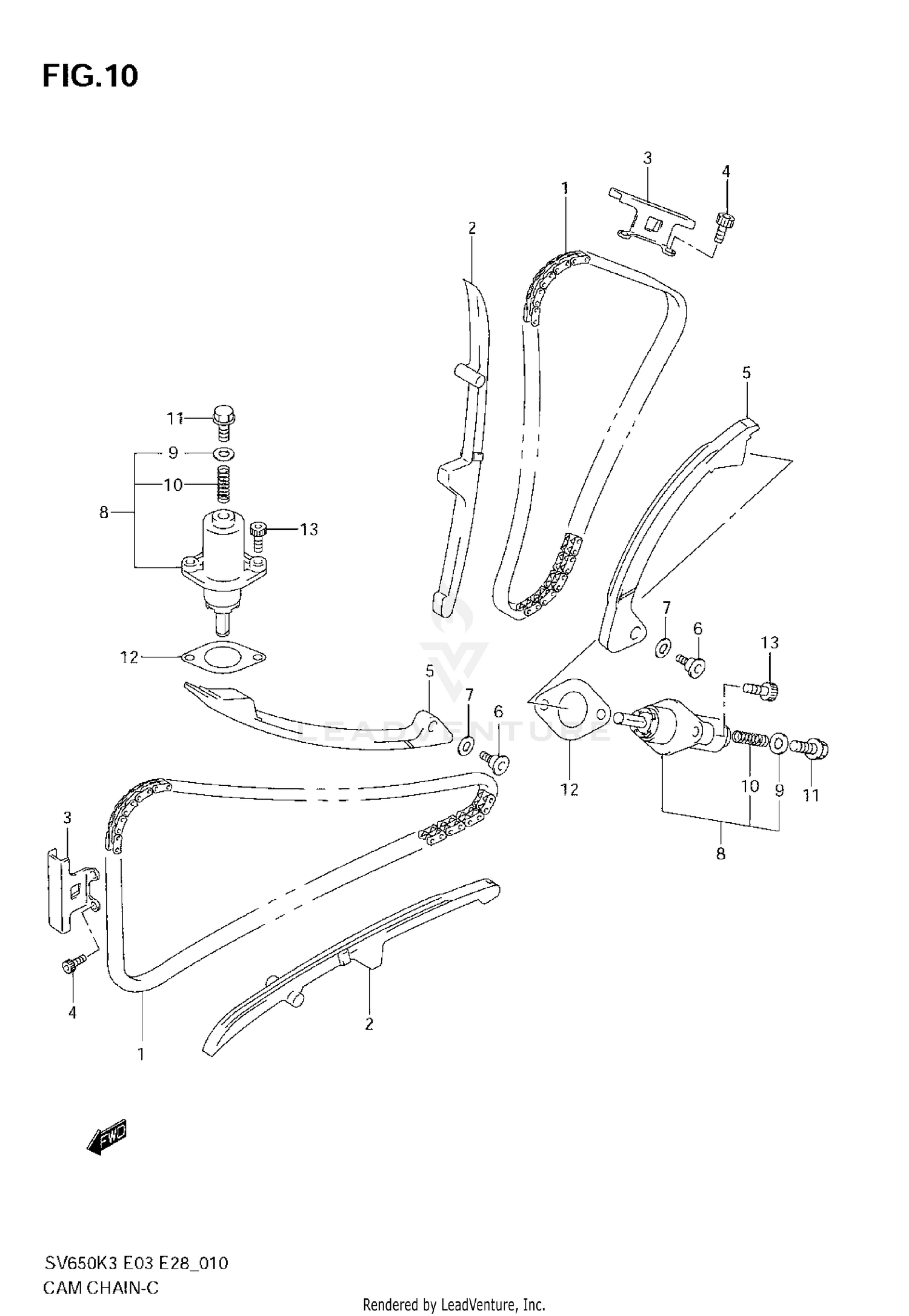

Cam Chain (model K3/k4) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CHAIN, CAMSHAFT DRIVE
12760-19F00
Superseded by 12760-19F01
|
$211.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE,CAM CHAIN
12771-19F00
Superseded by 12771-19F01
|
$54.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE,CAM CHAIN NO.2
12782-19F00
Superseded by 12782-19F01
|
$47.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
07130-06123
Superseded by 07130-0612A
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#5
TENSIONER,CAM CHAIN
12811-17G00
Superseded by 12811-17G01
|
$79.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT,CAM CHAIN TENSIONER
12812-35C00
|
$11.09 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
08211-06181
|
$2.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
ADJUSTER ASSY, TENSIONER
12830-17G00
|
$131.52 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET, TENSIONER ADJUSTER
12837-24F10
|
$5.90 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING
12831-35F00
|
$7.42 | ||
|
Available to order. Add to View Price |
|||
|
#11
PLUG, TENSIONER ADJUSTER
12833-17G00
|
$8.51 | ||
|
Available to order. Add to View Price |
|||
|
#12
.GASKET, TENSIONER ADJUSTER
12837-24A10
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
07130-06253
Superseded by 07130-0625B
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
