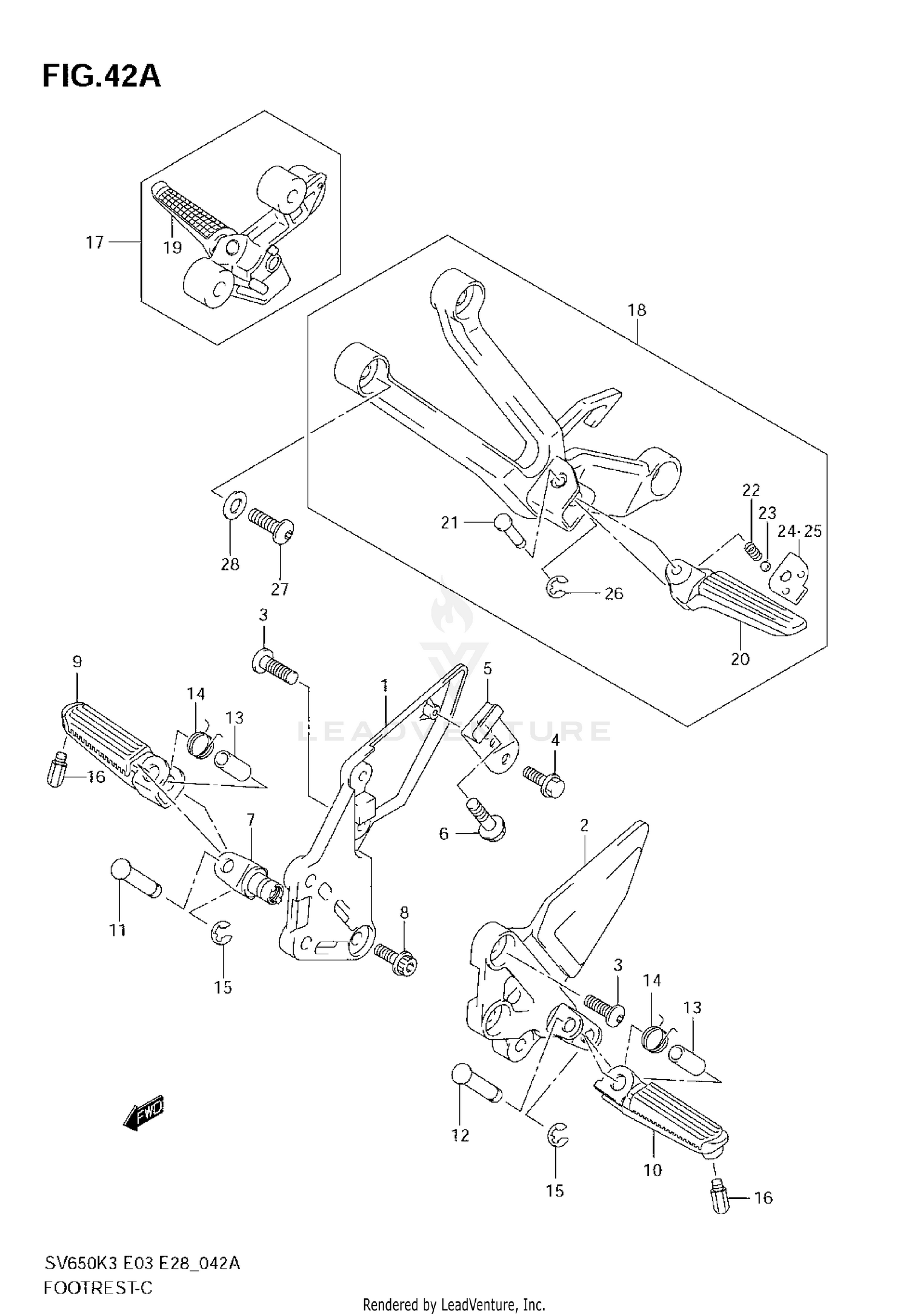

Footrest (model K4/k5/k6/k7) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, FRONT FOOTREST RH
43511-16G20
Superseded by 43511-16G21
|
$148.07 | ||
|
Available to order. Add to View Price |
|||
|
#1
BRACKET, FRONT FOOTREST RH
43511-16G21
|
$148.07 | ||
|
Unavailable |
|||
|
#2
BRACKET, FRONT FOOTREST LH
43521-16G20
Superseded by 43521-16G21
|
$131.80 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, FRONT FOOTREST LH
43521-16G21
|
$131.80 | ||
|
Unavailable |
|||
|
#3
BOLT, PANEL (8X18)
09106-08118
Superseded by 09106-08161
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, BRACKET
09106-08167
|
$4.26 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
01550-06103
Superseded by 01550-0610A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, RH
43571-16G00
|
$15.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, RH
43571-17G20
|
$19.12 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT (8X20)
01550-08203
Superseded by 01550-0820A
|
$2.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOLDER,FOOTREST
43530-16G00
Superseded by 43540-04K00
|
$39.94 | ||
|
Unavailable |
|||
|
#8
BOLT, HOLDER
09106-10064
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAR, FRONT FOOTREST RH
43510-02F11
|
$64.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAR, FRONT FOOTREST LH
43520-02F11
|
$63.88 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIN, RH
09208-08014
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, LH
09208-08016
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER
09180-08149
|
$6.89 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING
09448-18022
|
$4.61 | ||
|
Available to order. Add to View Price |
|||
|
#15
E-RING
08332-11063
Superseded by 08332-1106A
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT,BANK SENSOR
43576-48B02
|
$9.24 | ||
|
Available to order. Add to View Price |
|||
|
#17
FOOTREST ASSY, PILLION RH
43600-17G20
|
$244.31 | ||
|
Available to order. Add to View Price |
|||
|
#18
FOOTREST ASSY, PILLION LH
43700-17G20
|
$244.31 | ||
|
Available to order. Add to View Price |
|||
|
#19
BAR, PILLION RH
43611-35F01
|
$69.45 | ||
|
Available to order. Add to View Price |
|||
|
#20
BAR, PILLION LH
43621-35F01
|
$66.90 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN
87259-85510
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING
09440-05005
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#23
BALL
06111-07004
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#24
PLATE, RH
43816-33E21
|
$11.25 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLATE, LH
43826-33E22
|
$11.25 | ||
|
Available to order. Add to View Price |
|||
|
#26
E RING
08332-11043
Superseded by 08332-1104A
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, BRACKET
09106-08150
|
$4.22 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER
09164-08020
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
