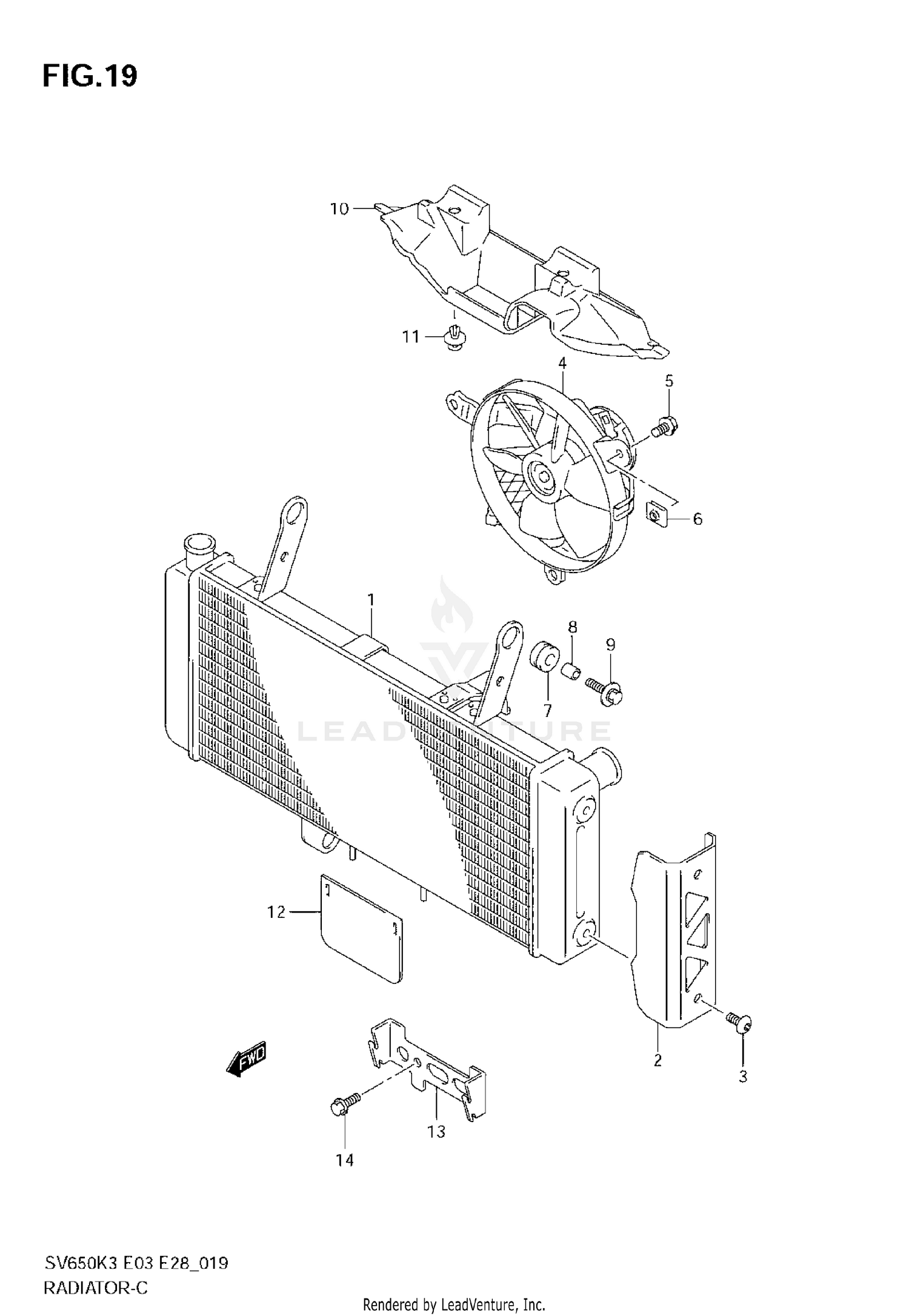

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RADIATOR ASSY, WATER
17710-17G00
Superseded by 17710-17G20
|
$935.00 | ||
|
Available to order. Add to View Price |
|||
|
#1
RADIATOR ASSY, WATER
17710-17G10
Superseded by 17710-17G30
|
$958.38 | ||
|
Available to order. Add to View Price |
|||
|
#1
RADIATOR ASSY, WATER
17710-17G20
|
$935.00 | ||
|
Unavailable |
|||
|
#1
RADIATOR ASSY, WATER
17710-17G30
|
$958.38 | ||
|
Unavailable |
|||
|
#1
RADIATOR ASSY, WATER
17710-17G40
|
$1,073.78 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, RADIATOR
17761-17G00
|
$50.75 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW (6X12)
09139-06027
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
FAN ASSY, RADIATOR
17800-17G00
|
$625.88 | ||
|
Available to order. Add to View Price |
|||
|
#4
FAN ASSY, RADIATOR
17800-17G40
|
$724.34 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
01550-06103
Superseded by 01550-0610A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT,FAN ASSY
17712-40F00
|
$6.22 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION
09320-10042
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#7
CUSHION
09320-10051
|
$3.92 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER (6.5X10X12)
09180-06290
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT (6X25)
09118-06097
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHIELD, RADIATOR HEAT
17771-17G00
|
$14.11 | ||
|
Unavailable |
|||
|
#10
SHIELD, RADIATOR HEAT
17771-17G11
|
$24.85 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP
09409-06313
|
$3.67 | ||
|
Available to order. Add to View Price |
|||
|
#12
RUBBER,RADIATOR UNDER
17781-17G00
|
$11.19 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKET,RDTR UNDER RUBBER
17741-17G00
|
$6.52 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
01550-06103
Superseded by 01550-0610A
|
$2.45 | ||
|
Unavailable |
|||
