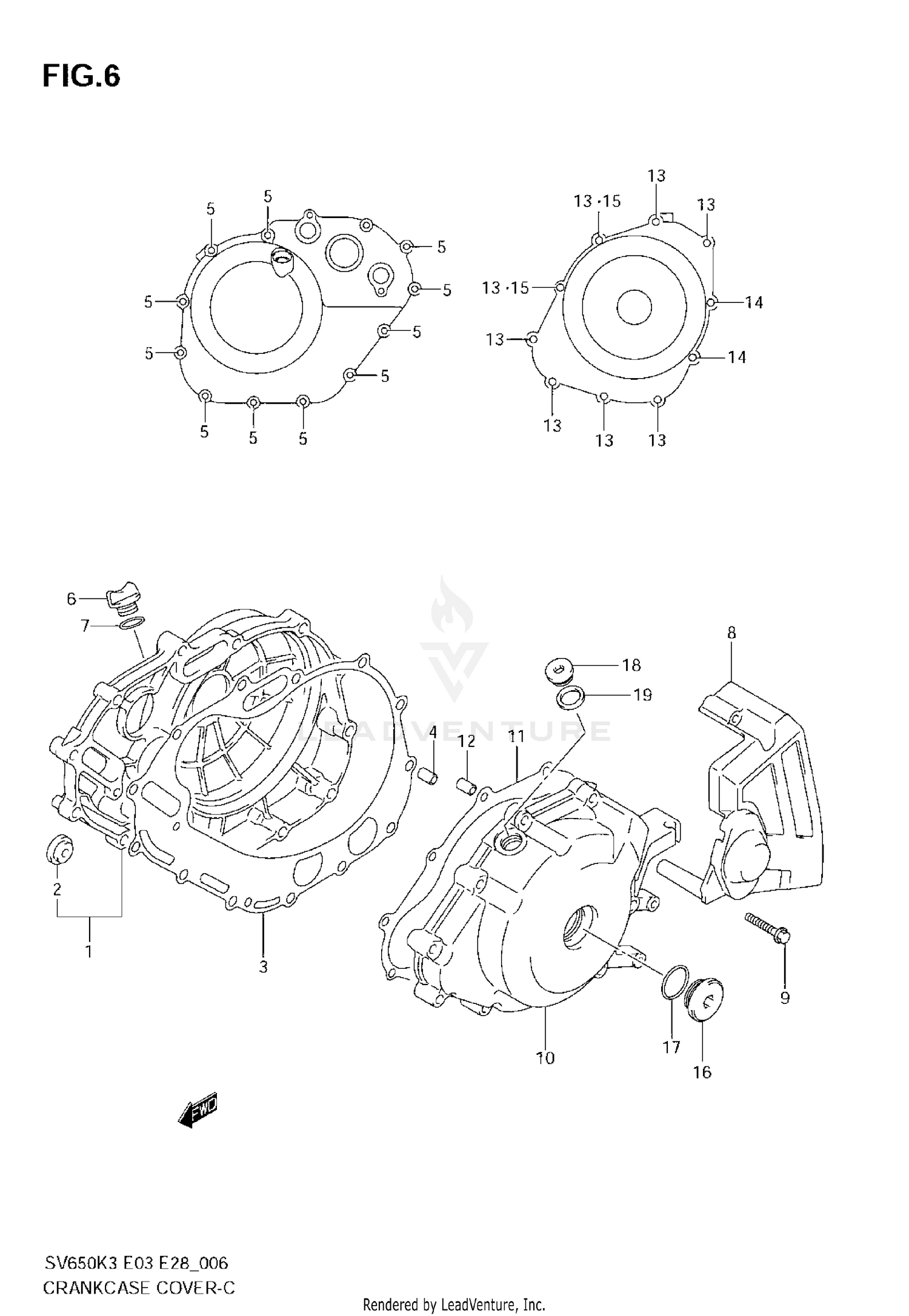

Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CLUTCH
11340-17G00
|
$233.00 | ||
|
Unavailable |
|||
|
#2
.LENS, OIL LEVEL CHECK
11971-33210
|
$22.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
.GASKET,CLUTCH COVER
11482-17G00
Superseded by 11482-44H00
|
$23.17 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN
04211-09149
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT
09103-06214
|
$2.91 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLUG,ENGINE OIL FILLER
11971-25D00
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#7
O RING (D:3.1,ID:16.8)
09280-17003
|
$1.99 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
COVER, ENGINE SPROCKET
11361-17G00
|
$92.98 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
09103-06224
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, MAGNETO
11351-19F50
|
$365.08 | ||
|
Available to order. Add to View Price |
|||
|
#11
.GASKET,MAGNETO COVER
11483-19F00
|
$15.79 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN
04211-09149
|
$1.99 | ||
|
Unavailable |
|||
|
#13
BOLT
09103-06214
|
$2.91 | ||
|
Unavailable |
|||
|
#14
BOLT
09103-06239
|
$3.21 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET (5.8X13X1.2)
09168-06023
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
PLUG
09259-26011
|
$13.44 | ||
|
Available to order. Add to View Price |
|||
|
#17
O RING (D:3.1,ID:22.7)
09280-22008
|
$2.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
PLUG
09248-16012
|
$5.66 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET (13.8X18.8X0.4)
09168-16002
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
