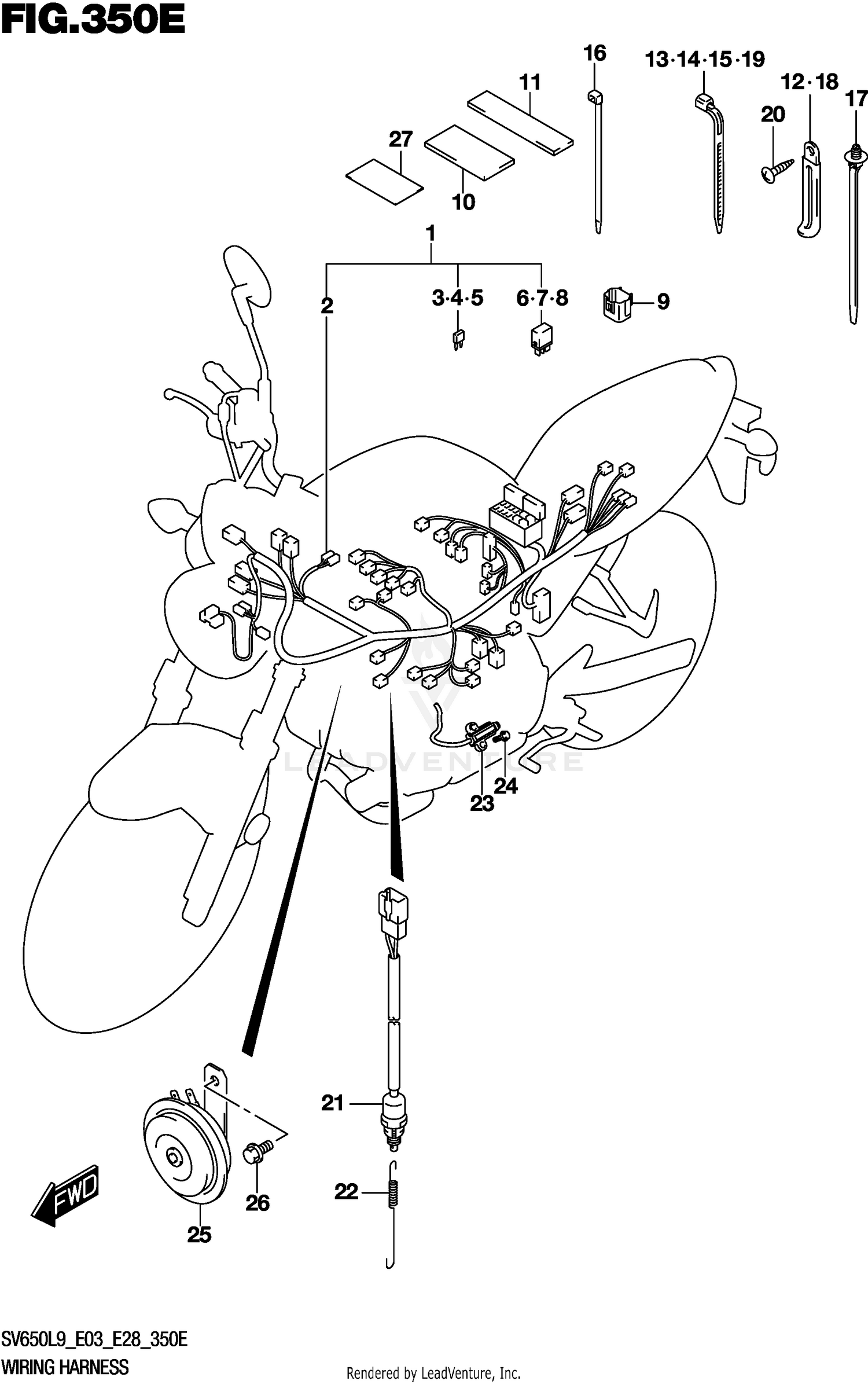

Wiring Harness (sv650xal9 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS,WIRING
36610-18KS0
|
|||
|
Unavailable |
|||
|
#2
.COVER,SPEEDOMETER COUPLER
36618-35F00
|
$11.37 | ||
|
Available to order. Add to View Price |
|||
|
#3
.FUSE (10A)
09481-10504
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
.FUSE (15A)
09481-15504
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#5
.FUSE (20A)
09481-20504
|
$2.09 | ||
|
Unavailable |
|||
|
#6
.RELAY ASSY
38860-76F01
|
$43.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
.RELAY ASSY
38860-76F01
|
$43.75 | ||
|
Unavailable |
|||
|
#8
.RELAY ASSY
38860-76F01
|
$43.75 | ||
|
Unavailable |
|||
|
#9
.CAP, TS
36654-06J00
Superseded by 36654-06J01
|
$15.63 | ||
|
Available to order. Add to View Price |
|||
|
#10
PROTECTOR (30X60X3)
36920-08D00
|
$2.03 | ||
|
Unavailable |
|||
|
#11
PROTECTOR (30X70)
94474-22D00
|
$8.88 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP (L:45)
09404-06429
|
$2.27 | ||
|
Unavailable |
|||
|
#13
CLAMP (L:125)
09407-14403
|
$2.80 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CLAMP (L:165)
09407-18402
|
$2.77 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP (L:190)
09407-19401
|
$3.33 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP (L:145)
09407-14407
|
$3.83 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CLAMP (L:154)
09407-17403
|
$6.46 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLAMP(L:80)
09404-06433
Superseded by 09404-06036
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP (L:235)
09407-25401
|
$5.85 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW
03541-0412A
|
$1.71 | ||
|
Available to order. Add to View Price |
|||
|
#21
SWITCH ASSY,STOP LAMP
37740-44H01
|
$22.48 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING
09443-06016
|
$3.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#23
SWITCH ASSY,SIDE STAND
37840-25D00
Superseded by 37840-25D02
|
$68.14 | ||
|
Unavailable |
|||
|
#24
BOLT (6X20)
01550-0620A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#25
HORN ASSY
38500-18K00
|
$64.81 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT (8X12)
01550-0812A
|
$2.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#27
TAPE, FENDER
36611-16G00
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
