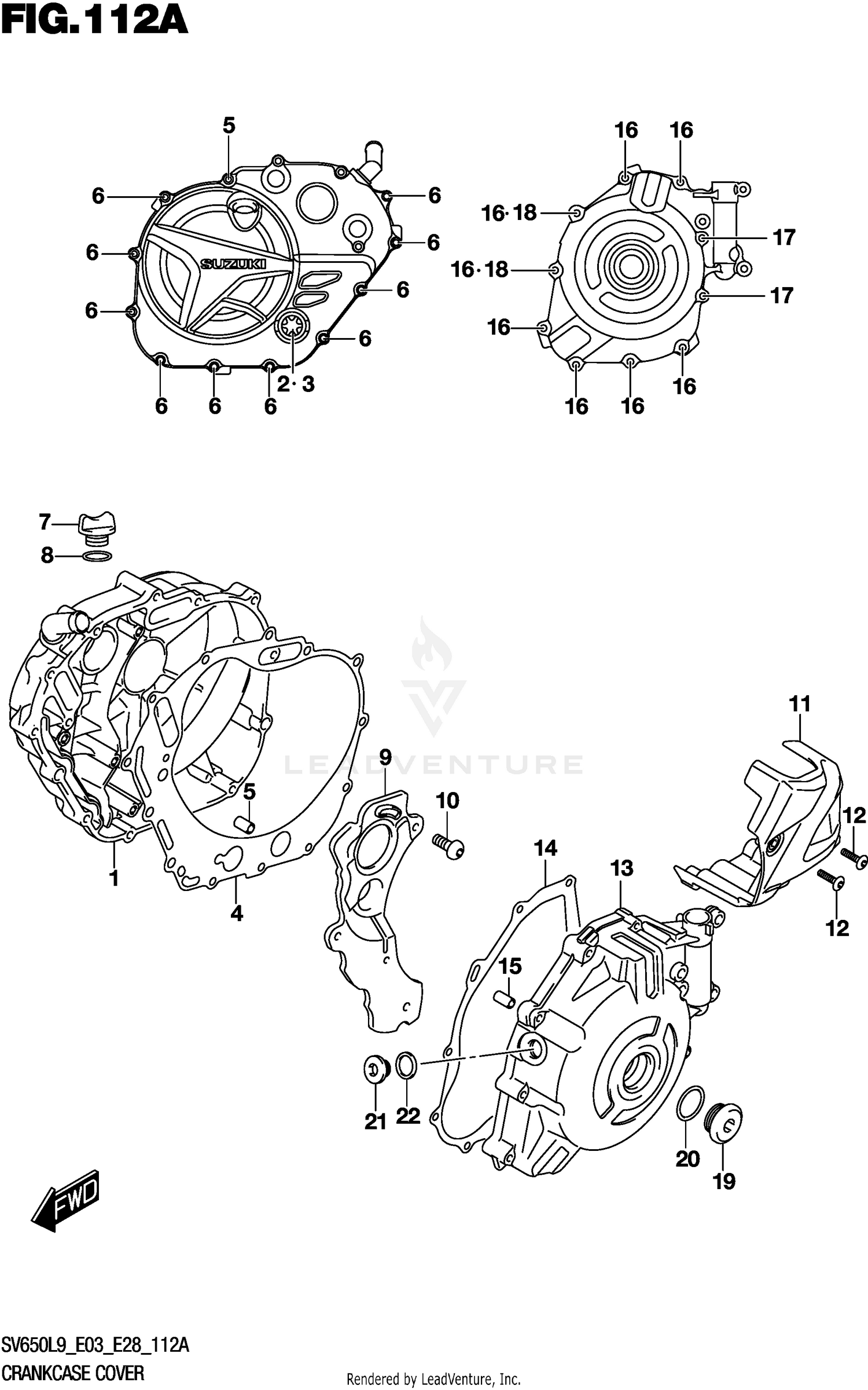

Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER,CLUTCH
11340-18K00
|
$379.28 | ||
|
Available to order. Add to View Price |
|||
|
#2
.LENS, OIL LEVEL CHECK
11971-33210
|
$23.50 | ||
|
Available to order. Add to View Price |
|||
|
#3
.CIRCLIP
08331-4130A
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
.GASKET,CLUTCH COVER
11482-44H00
|
$24.21 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN
04211-09149
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT,CLUTCH COVER (L:35)
09103-06530
|
$2.31 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLUG,ENGINE OIL FILLER
11971-25D00
|
$6.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
O-RING (D:3.1,ID:16.8)
09280-17003
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SEPARATOR,OIL
11343-44H01
|
$58.61 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (6X12)
09106-06098
|
$2.19 | ||
|
Unavailable |
|||
|
#11
COVER,ENG SPROCKET
11360-18K00
|
$47.47 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW (6X25)
09139-06029
|
$6.73 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER,MAGNETO
11351-44H10
|
$316.29 | ||
|
Available to order. Add to View Price |
|||
|
#14
.GASKET,MAGNETO COVER
11483-19F00
|
$16.50 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN
04211-09149
|
$2.05 | ||
|
Unavailable |
|||
|
#16
BOLT,CLUTCH COVER (L:35)
09103-06530
|
$2.31 | ||
|
Unavailable |
|||
|
#17
BOLT,MAGNETO COVER (6X65)
09103-06536
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET (5.8X13X1.2)
09168-06023
|
$2.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
PLUG
09259-26012
|
$14.19 | ||
|
Available to order. Add to View Price |
|||
|
#20
O RING (D:3.1,ID:22.7)
09280-22008
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
PLUG (16X8)
09248-16012
|
$5.83 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET (16X22X2)
09168-16002
|
$2.37 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
