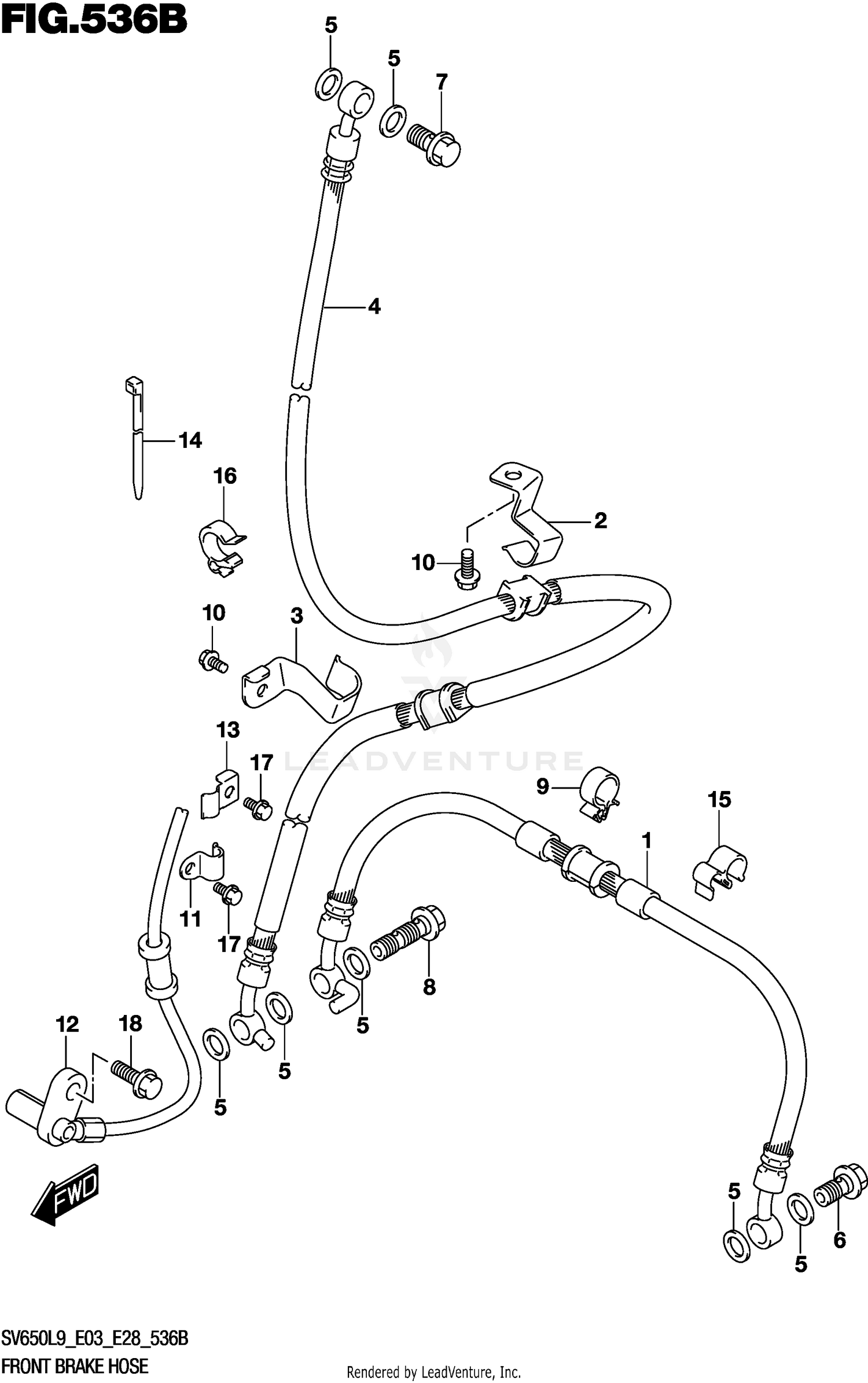

Front Brake Hose (sv650l9 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOSE,FR BK CLPR TO CLPR
59240-18K20
Superseded by 59240-18K21
|
$54.40 | ||
|
Unavailable |
|||
|
#2
CLAMP,FR BRAKE HOSE NO.1
59261-44H00
|
$10.33 | ||
|
Available to order. Add to View Price |
|||
|
#3
CLAMP,FR BRAKE HOSE NO.2
59263-44H10
|
$10.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE,FR BK MASTER TO CLPR
59480-18K20
|
$89.32 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER (10X15X1.5)
09161-10009
|
$2.22 | ||
|
Available to order. Add to View Price |
|||
|
#6
UNION (10X1.25X22)
09360-10062
|
$7.84 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#7
UNION
09360-10042
Superseded by 09360-10062
|
$7.84 | ||
|
Unavailable |
|||
|
#8
UNION (10X1.25X36)
09360-10064
|
$7.84 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP
09403-16412
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (6X12)
09103-06525
|
$1.74 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP, SENSOR LEAD FRONT NO.1
55731-15H00
|
$5.23 | ||
|
Available to order. Add to View Price |
|||
|
#12
SENSOR,FR WHEEL SPEED
55710-18K30
|
$235.22 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP,SENSOR LEAD FR NO.3
55733-44H00
|
$6.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP (L:145)
09407-14407
|
$3.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
CLAMP
09408-00266
|
$3.04 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP
09408-00307
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT (6X12)
09103-06525
|
$1.74 | ||
|
Unavailable |
|||
|
#18
BOLT (6X16)
09103-06526
|
$1.87 | ||
|
Available to order. Add to View Price |
|||
