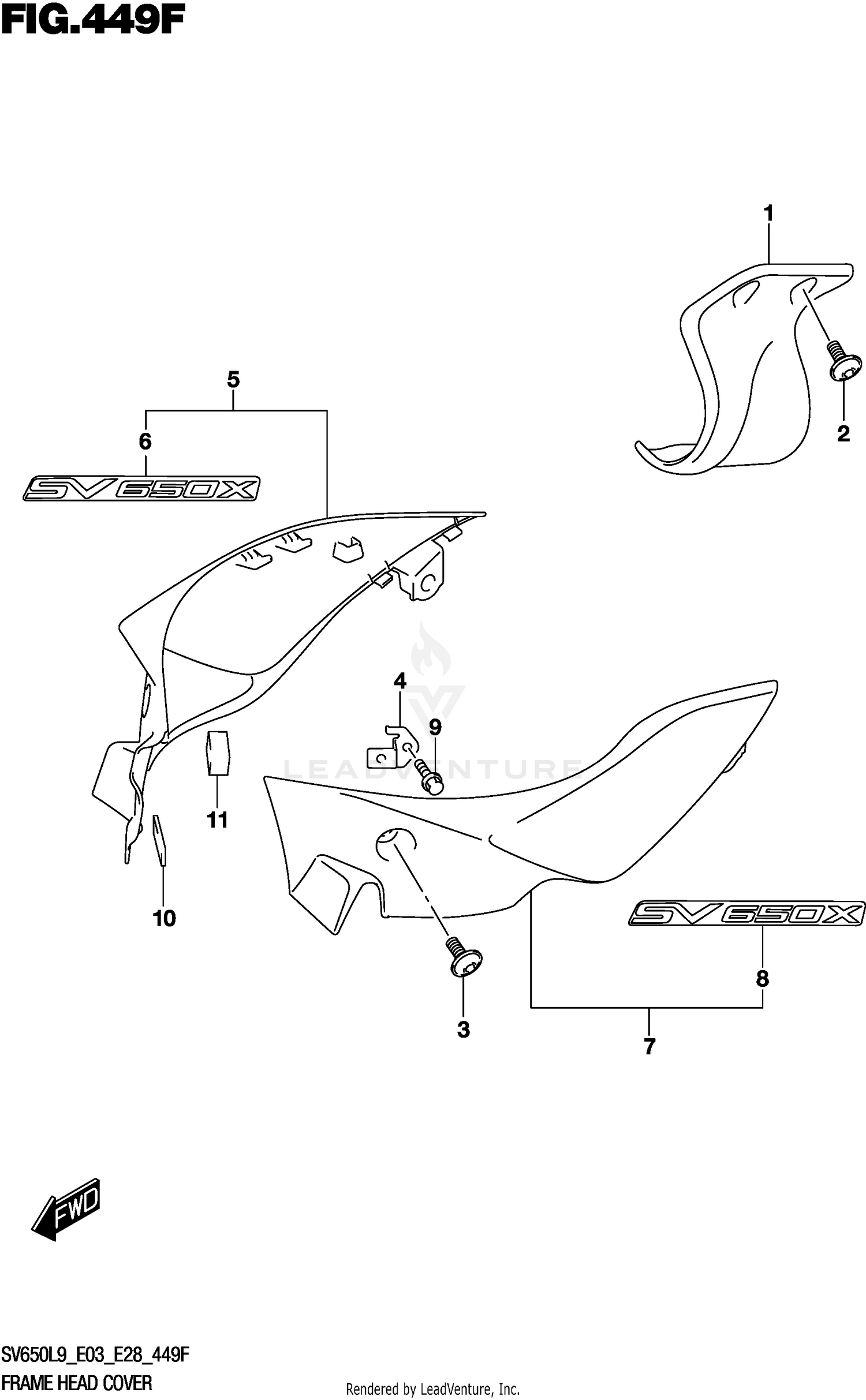

Frame Head Cover (sv650xal9 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER,FRAME BODY REAR LH
47543-44H00
|
$30.60 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT (5X13)
09139-05074
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT (5X13)
09139-05074
|
$3.02 | ||
|
Unavailable |
|||
|
#4
BRACKET,FRAME COVER
47115-18K00
|
$13.87 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, FRAME UPPER RH (WHITE)
47120-18K10-YWW
|
$116.27 | ||
|
Available to order. Add to View Price |
|||
|
#6
(BLACK/RED)
68135-18K10-JSP
|
|||
|
Unavailable |
|||
|
#6
(BLACK/RED)
68135-18K10-JSP
|
|||
|
Unavailable |
|||
|
#7
COVER, FRAME UPPER LH (WHITE)
47220-18K10-YWW
|
$125.58 | ||
|
Available to order. Add to View Price |
|||
|
#8
.TAPE, FRAME COVER LH
68145-18K10-JSP
|
|||
|
Unavailable |
|||
|
#8
.TAPE, FRAME COVER LH
68145-18K10-JSP
|
|||
|
Unavailable |
|||
|
#9
BOLT
01550-0510A
|
$2.56 | ||
|
Available to order. Add to View Price |
|||
|
#10
PROTECTOR (50X50X5)
33652-21G10
Superseded by 33652-20C00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#11
CUSHION (20X30X15)
17798-29E30
|
$8.25 | ||
|
Available to order. Add to View Price |
|||
