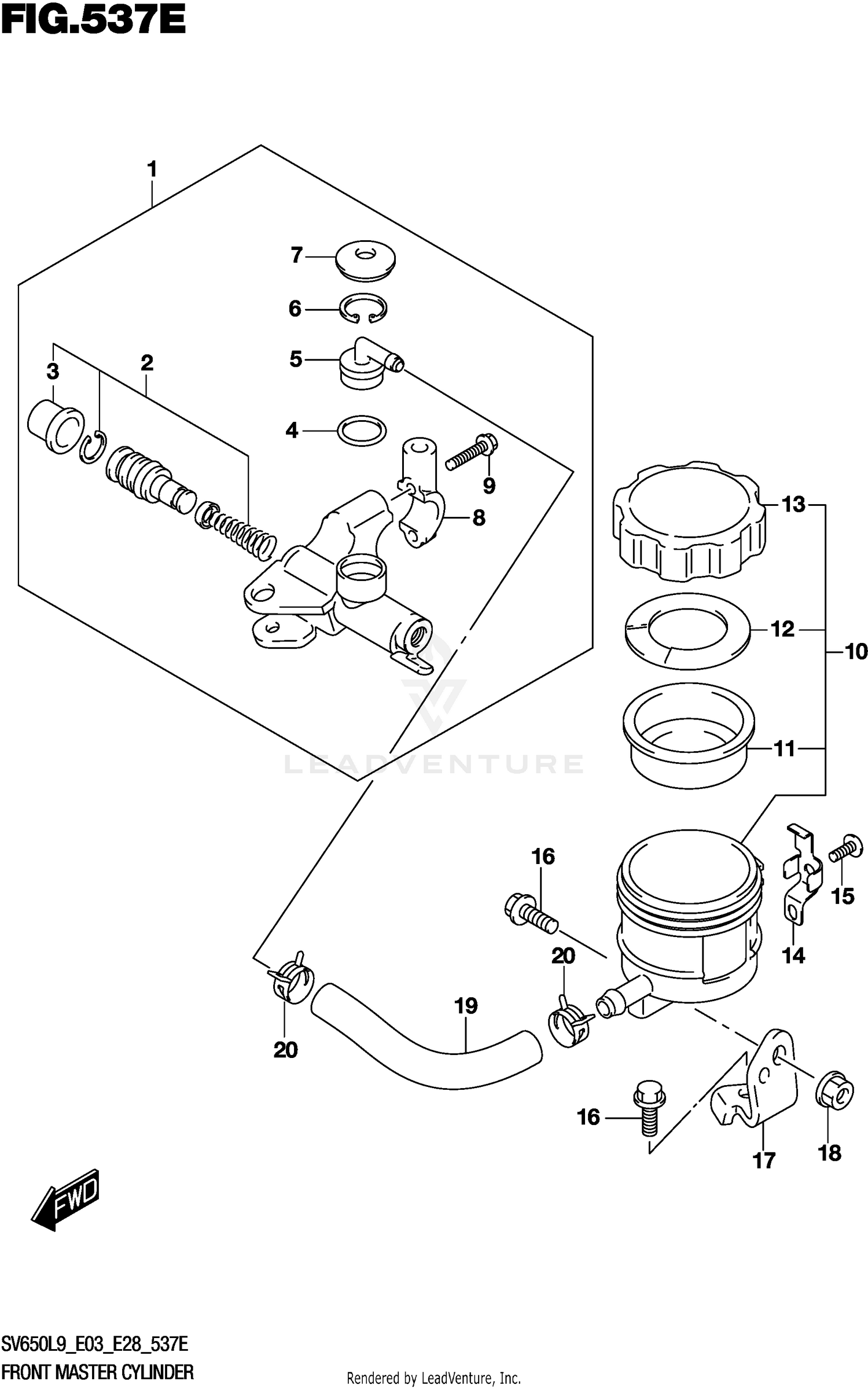

Front Master Cylinder (sv650xal9 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER ASSY,FRONT MASTER
59600-18G10
|
$292.81 | ||
|
Available to order. Add to View Price |
|||
|
#2
.PISTON & CUP SET
59600-45870
|
$56.96 | ||
|
Available to order. Add to View Price |
|||
|
#3
..BOOT
59666-44300
|
$7.16 | ||
|
Available to order. Add to View Price |
|||
|
#4
.O-RING
69686-34200
|
$3.62 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
.CONNECTOR
69672-00B20
|
$8.67 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#6
.CIRCLIP
69674-00B20
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#7
.COVER,DUST
59673-17C00
|
$10.69 | ||
|
Available to order. Add to View Price |
|||
|
#8
.HOLDER
59671-32F00
|
$24.12 | ||
|
Available to order. Add to View Price |
|||
|
#9
.BOLT (6X22)
59675-02FA0
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#10
TANK ASSY,FR RESERVOIR
59740-47H10
|
$60.54 | ||
|
Available to order. Add to View Price |
|||
|
#11
.DIAPHRAGM
59667-18441
|
$12.71 | ||
|
Available to order. Add to View Price |
|||
|
#12
.PLATE
59668-18441
|
$5.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
.CAP
59669-47H00
|
$25.70 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE,RESERVOIR TANK CAP
59743-17C00
|
$11.50 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#15
SCREW
02142-0410A
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT (6X16)
09103-06526
|
$1.87 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET,FR RESERVOIR TANK
59751-18K00
|
$14.16 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT (6X12)
08316-1006A
|
$2.64 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#19
HOSE, RESERVOIR TANK
59731-01H00
Superseded by 59731-47H00
|
$20.41 | ||
|
Available to order. Add to View Price |
|||
|
#20
CLAMP,RESERVOIR TANK,FRONT
59735-17C00
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
