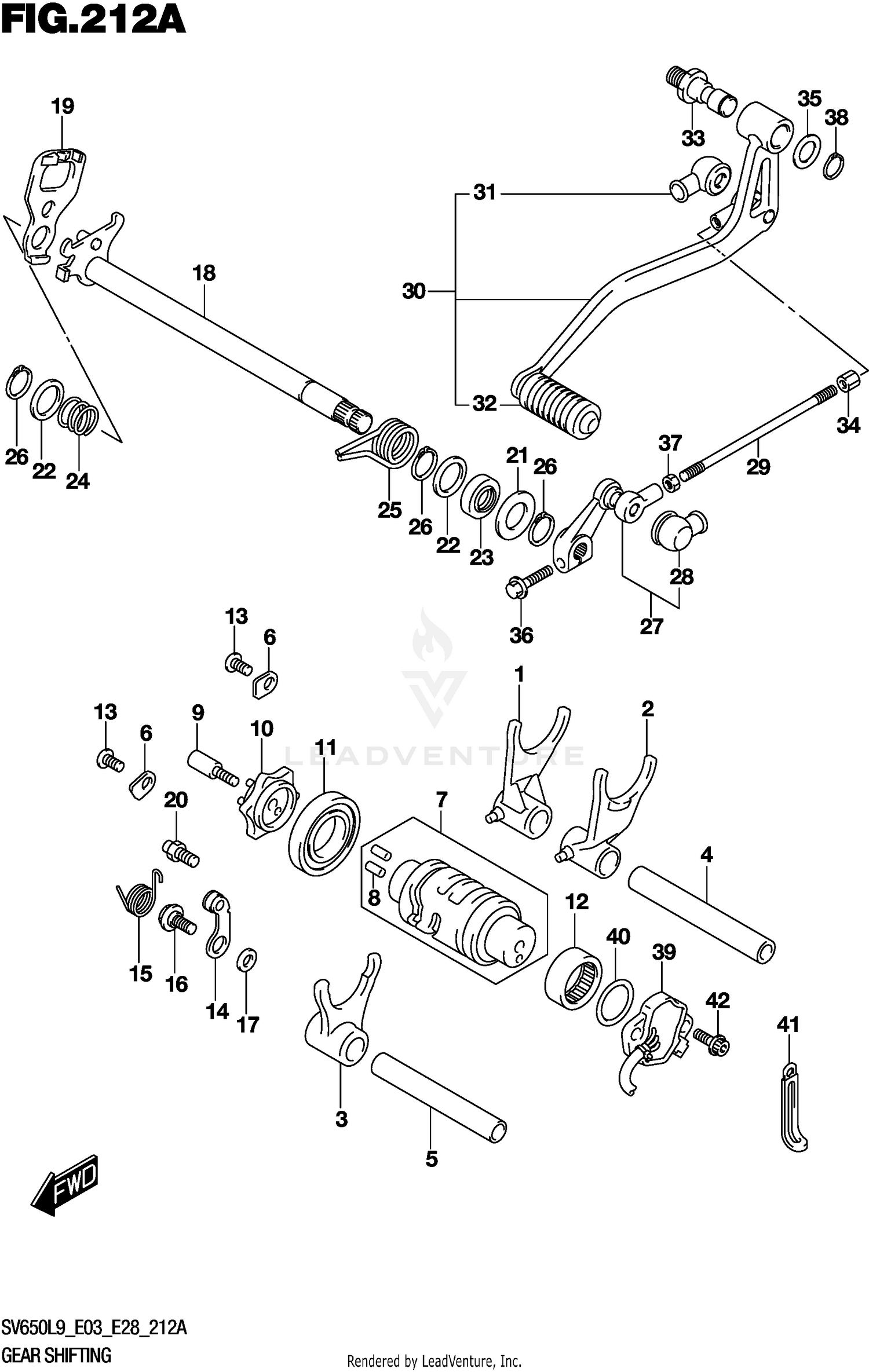

Gear Shifting (sv650l9 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK,GEAR SHIFT NO.1
25211-42E20
|
$66.14 | ||
|
Unavailable |
|||
|
#2
FORK,GEAR SHIFT NO.2
25221-42E20
|
$66.14 | ||
|
Unavailable |
|||
|
#3
FORK,GEAR SHIFT NO.3
25231-42E20
|
$88.56 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHAFT,GEAR SHIFT FORK
25411-26D01
|
$29.00 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHAFT,GEAR SHIFT FORK,NO.1
25411-44B00
|
$35.79 | ||
|
Available to order. Add to View Price |
|||
|
#6
RETAINER
24741-21A00
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAM,GEAR SHIFT
25310-19F00
|
$135.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
.PIN
04221-04089
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT,GEAR SHIFT CAM PLATE
25312-42F01
|
$10.26 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE,GEAR SHIFT CAM
25381-19F20
|
$65.20 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING (25X47X8)
09262-25006
|
$32.19 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING (25X32X12)
09263-25018
|
$26.83 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW
02112-0612A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#14
STOPPER, SHIFT CAM
25350-35F00
Superseded by 25350-35F10
|
$19.63 | ||
|
Unavailable |
|||
|
#15
SPRING, SHIFT CAM STOPPER
25355-35F01
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT (6X14.3)
09111-06041
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER
08211-06141
|
$2.01 | ||
|
Available to order. Add to View Price |
|||
|
#18
SHAFT,GEAR SHIFT
25510-19F10
|
$131.03 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLATE,GEAR SHIFT CAM DRIVE
25512-06G10
Superseded by 25512-06G20
|
$31.47 | ||
|
Available to order. Add to View Price |
|||
|
#20
STOPPER,GEAR SHIFT ARM
25671-01011
|
$5.78 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER (14X29X0.8)
09160-14016
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#22
SHIM (14X22X1.0)
09181-14167
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#23
SEAL, SHIFT SHAFT (14X22X6)
09283-14005
Superseded by 09283-14006
|
$8.41 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#24
SPRING
09440-17009
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
|
#25
SPRING
09444-20001
|
$6.70 | ||
|
Available to order. Add to View Price |
|||
|
#26
CIRCLIP
08331-3114A
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#27
ARM,GEAR SHIFT LINK
25520-22A10
Superseded by 25520-22A11
|
$71.45 | ||
|
Available to order. Add to View Price |
|||
|
#28
.COVER,DUST
25526-47000
Superseded by 25526-47001
|
$7.02 | ||
|
Available to order. Add to View Price |
|||
|
#29
ROD,GEAR SHIFT LINK
25525-44H00
|
$16.31 | ||
|
Available to order. Add to View Price |
|||
|
#30
LEVER ASSY,GEAR SHIFT
25600-44H01
Superseded by 25600-44H02
|
$85.61 | ||
|
Available to order. Add to View Price |
|||
|
#31
.COVER,DUST
25526-47000
Superseded by 25526-47001
|
$7.02 | ||
|
Unavailable |
|||
|
#32
.RUBBER,GEAR SHIFT PEDAL
25652-20C00
|
$7.02 | ||
|
Available to order. Add to View Price |
|||
|
#33
SHAFT,GEAR SHIFT LEVER
25617-03F10
|
$15.92 | ||
|
Available to order. Add to View Price |
|||
|
#34
.NUT
09140-06025
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER (12.5X20X1.0)
09160-12011
|
$1.78 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#36
BOLT (6X20)
09103-06527
|
$2.08 | ||
|
Available to order. Add to View Price |
|||
|
#37
NUT
08310-0006A
|
$2.29 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#38
CIRCLIP
08331-3112A
|
$2.21 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#39
SENSOR ASSY,GEAR POSITION
37730-44H01
Superseded by 37730-44H11
|
$140.60 | ||
|
Unavailable |
|||
|
#40
O-RING (D:2.4,ID:26.2)
09280-26005
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#41
.CLAMP (L:65)
09404-08418
Superseded by 09404-08421
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT (5X16)
09106-05023
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
