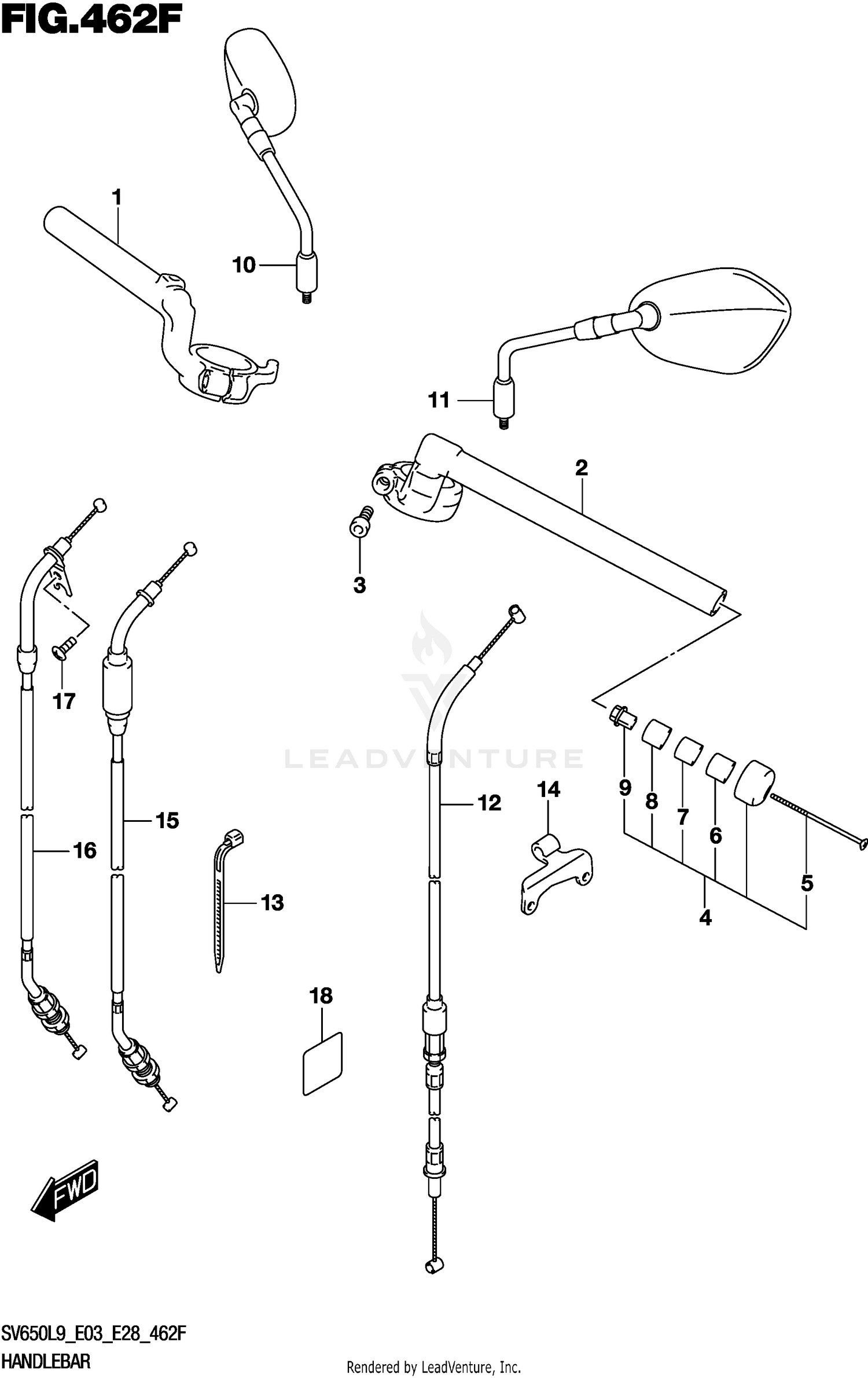

Handlebar (sv650xal9 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR RH
56111-17G20
|
$222.29 | ||
|
Available to order. Add to View Price |
|||
|
#2
HANDLEBAR LH
56151-17G20
|
$230.77 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
07130-0830B
|
$5.28 | ||
|
Available to order. Add to View Price |
|||
|
#4
BALANCER SET,HANDLEBAR
56200-41830
Superseded by 56200-41831
|
$48.18 | ||
|
Available to order. Add to View Price |
|||
|
#5
.SCREW
02122-0670B
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
EXPANDER, HANDLE BALANCER
56272-42F00
|
$6.17 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER (6.5X16X15)
09180-06161
|
$7.11 | ||
|
Unavailable |
|||
|
#8
EXPANDER, HANDLE BALANCER
56272-10G00
Superseded by 56272-10G01
|
$6.26 | ||
|
Available to order. Add to View Price |
|||
|
#9
.NUT,HANDLE BALANCER
56273-10G10
|
$11.17 | ||
|
Available to order. Add to View Price |
|||
|
#10
MIRROR ASSY,REAR VIEW,R
56500-08J11
Superseded by 56500-08J12
|
$130.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
MIRROR ASSY,REAR VIEW,L
56600-08J11
Superseded by 56600-08J12
|
$125.59 | ||
|
Available to order. Add to View Price |
|||
|
#12
CABLE ASSY,CLUTCH
58200-18K00
|
$49.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP (L:165)
09407-18402
|
$2.77 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
STOPPER,CLUTCH CABLE
58634-44H00
|
$17.41 | ||
|
Available to order. Add to View Price |
|||
|
#15
CABLE ASSY,THROTTLE NO.1
58300-18K01
Superseded by 58300-18K02
|
$49.29 | ||
|
Available to order. Add to View Price |
|||
|
#16
CABLE ASSY,THROTTLE NO.2
58300-18K11
Superseded by 58300-18K12
|
$44.88 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW
02142-0510B
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#18
PROTECTOR (25X25X0.2)
87873-56K50
|
$11.19 | ||
|
Available to order. Add to View Price |
|||
