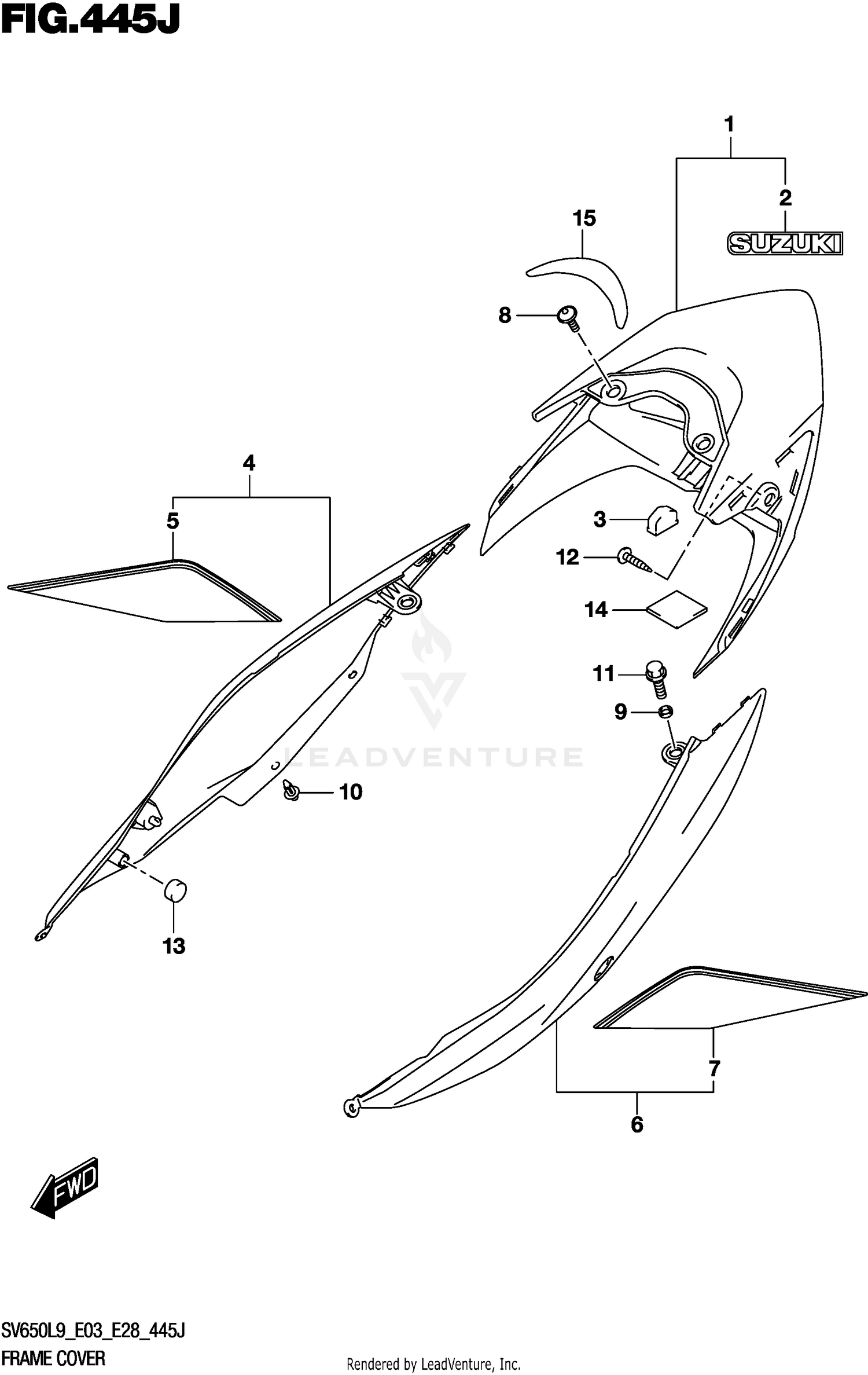

Frame Cover (sv650xal9 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER,FRAME RR CTR (BLACK)
47310-18KA0-YVB
Superseded by 47310-18KA1-YVB
|
$204.98 | ||
|
Available to order. Add to View Price |
|||
|
#2
.EMBLEM,"SUZUKI" (SILVER,BLAC
68171-28H10-APT
|
$8.93 | ||
|
Available to order. Add to View Price |
|||
|
#2
.EMBLEM,"SUZUKI" (SILVER,BLAC
68171-28H10-APT
|
$8.93 | ||
|
Unavailable |
|||
|
#3
CUSHION,FRAME COVER CTR
47315-18K00
|
$13.76 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER,FRAME REA
47410-18KC0-YWW
Superseded by 47410-18KC1-YWW
|
$128.81 | ||
|
Available to order. Add to View Price |
|||
|
#5
.TAPE SET, FRAME COVER RH
68135-18K30-BQ4
|
|||
|
Unavailable |
|||
|
#6
COVER,FRAME REA
47510-18KC0-YWW
Superseded by 47510-18KC1-YWW
|
$120.61 | ||
|
Available to order. Add to View Price |
|||
|
#7
.TAPE SET, FRAME COVER LH
68145-18K30-BQ4
|
|||
|
Unavailable |
|||
|
#8
BOLT (5X13)
09139-05074
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER (8.5X12X2.5)
09180-08052
|
$1.25 | ||
|
Unavailable |
|||
|
#10
CLIP
09409-06314
Superseded by 09409-06314-5PK
|
$3.23 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT (8X12)
01550-0812A
|
$2.79 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#12
SCREW
03541-0510A
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#13
CUSHION (14X20X9)
09329-14002
Superseded by 09329-14003
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#14
PROTECTOR (50X50X5)
33652-20C00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#15
TAPE,FRAME COVER RR CTR
47312-18K00
|
$12.46 | ||
|
Available to order. Add to View Price |
|||
