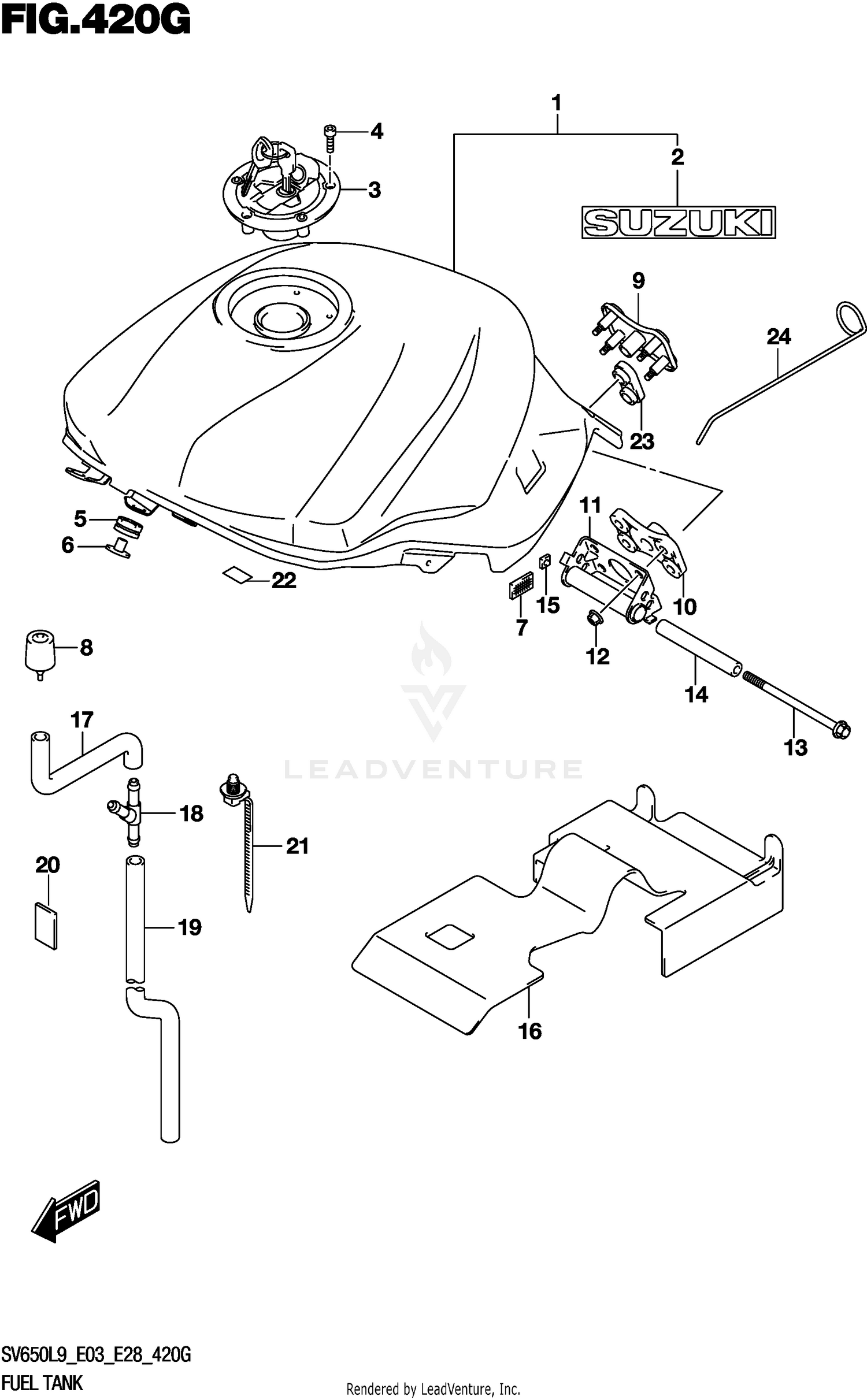

Fuel Tank (sv650al9 E33) (for Yvb,qeb) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1-1
TANK ASSY,FUEL
44100-18K60-QEB
Superseded by 44100-18K61-QEB
|
$939.46 | ||
|
Unavailable |
|||
|
#1-2
TANK ASSY,FUEL (BLACK)
44100-18K60-YVB
Superseded by 44100-18K61-YVB
|
$1,030.41 | ||
|
Available to order. Add to View Price |
|||
|
#2-1
.EMBLEM,"SUZUKI" (BLACK)
68111-47C10-YVB
|
$16.89 | ||
|
Available to order. Add to View Price |
|||
|
#2-2
.EMBLEM,"SUZUKI" (GRAY)
68111-47C10-YLF
|
$17.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP SET, FUEL TANK
44200-17820
|
$242.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT,FUEL TANK FILLER CAP
44244-11J00
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUSHION,FUEL TANK FRONT
44511-18K00
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPACER,FUEL TANK FRONT
44512-04K00
|
$7.97 | ||
|
Available to order. Add to View Price |
|||
|
#7
.FASTENER,FUEL TANK (33X25X3.
44572-13G00
|
$14.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION,FUEL TANK RR
44542-29G00
Superseded by 44542-29G01
|
$10.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET,FUEL TANK REAR UP
44570-16G00
|
$23.90 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION,FUEL TANK RR LWR
44542-18K00
|
$20.26 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET,FUEL TANK REAR
44530-44H00
|
$34.58 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT
08319-3106A
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT (6X100)
09103-06060
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPACER,FUEL TANK
44561-35F00
|
$18.42 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
08318-1106A
|
|||
|
Unavailable |
|||
|
#16
SHEET,HEAT SHIELD RUBBER
44191-18K00
|
$64.62 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE,FUEL TANK DRAIN NO.1
44423-18K01
|
$10.87 | ||
|
Available to order. Add to View Price |
|||
|
#18
JOINT,DRAIN HOSE
09367-08010
|
$3.52 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE,FUEL TANK DRAIN NO.2
44423-18K11
|
$26.24 | ||
|
Available to order. Add to View Price |
|||
|
#20
SHIELD,DRAIN HOSE HEAT
44427-18K10
|
$19.41 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLAMP (L:154)
09407-17403
|
$6.46 | ||
|
Available to order. Add to View Price |
|||
|
#22
TAPE, FENDER
36611-16G00
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#23
CUSHION,FUEL TANK RR UPR
44541-18K00
|
$13.47 | ||
|
Available to order. Add to View Price |
|||
|
#24
STAY,FUEL TANK
44560-23H00
|
$50.75 | ||
|
Available to order. Add to View Price |
|||
