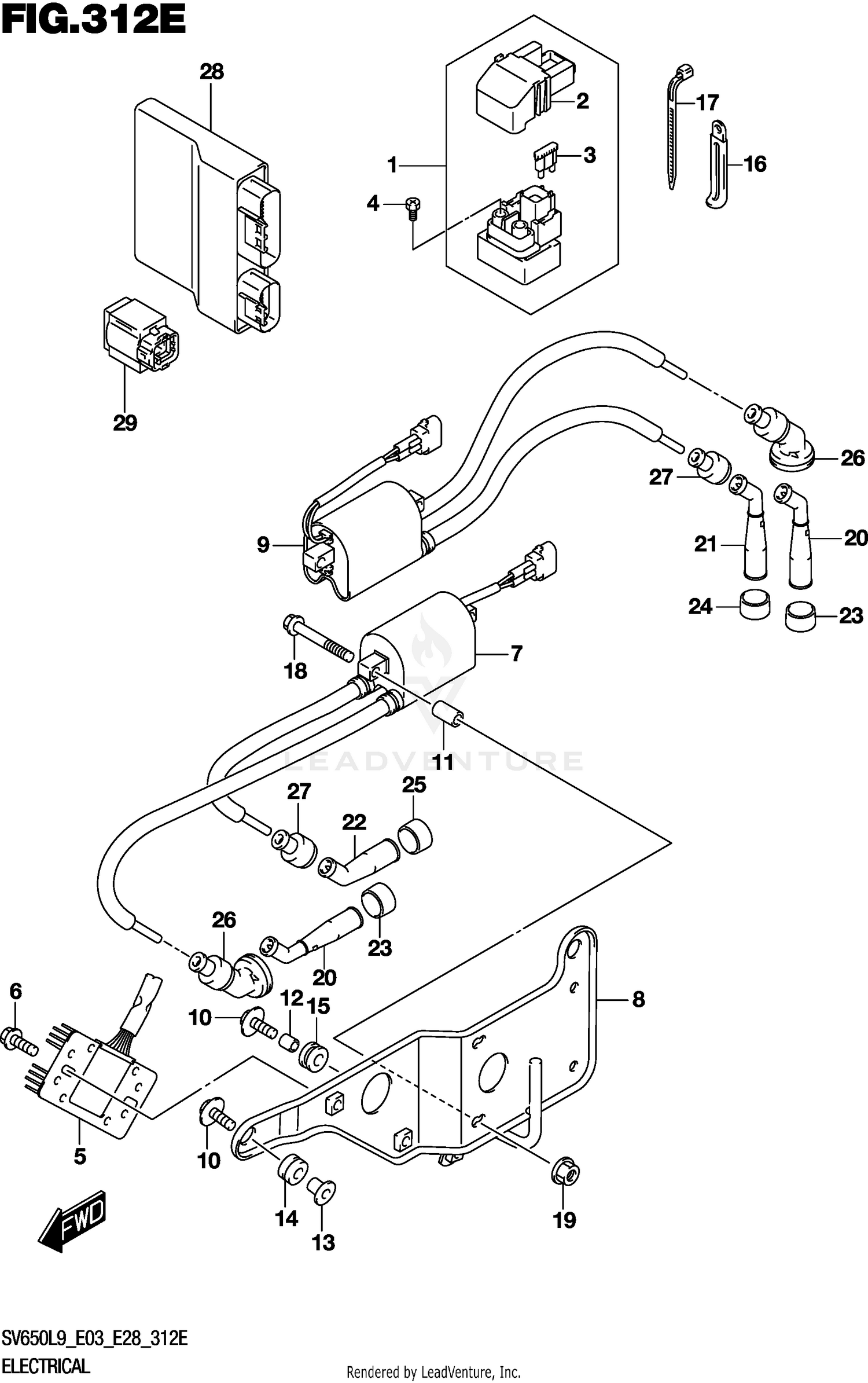

Electrical (sv650xal9 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RELAY ASSY,STARTING MOTOR
31800-06G00
Superseded by 31800-06G02
|
$86.90 | ||
|
Available to order. Add to View Price |
|||
|
#2
.COVER
31861-47E00
|
$18.25 | ||
|
Available to order. Add to View Price |
|||
|
#3
.FUSE (30A)
09481-30101
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW (6X8)
09128-06013
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
RECTIFIER ASSY
32800-47H00
|
$338.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW (6X16)
02162-0616A
Superseded by 02162-0616B
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#7
COIL ASSY,IGNITION FRONT
33410-18K00
|
$148.85 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRACKET,IGN COIL REAR
33414-44H01
|
$34.58 | ||
|
Available to order. Add to View Price |
|||
|
#9
COIL ASSY,IGNITION REAR
33420-18K00
|
$148.85 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (6X20)
09116-06188
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER (6.4X10X18)
09180-06195
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER (6.5X9X9)
09180-06263
|
$2.57 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER (6.2X8.4X10.9)
09180-06331
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#14
CUSHION (8X18X10)
09320-08501
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION
09320-09016
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
CLAMP(L:80)
09404-06433
Superseded by 09404-06036
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP (L:165)
09407-18402
|
$2.77 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
BOLT,MAGNETO COVER (6X40)
09103-06531
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT (6X12)
08316-1006A
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#20
CAP ASSY,SPARK PLUG
33510-17G00
|
$43.19 | ||
|
Available to order. Add to View Price |
|||
|
#21
CAP ASSY,SPARK PLUG
33510-17G00
|
$43.19 | ||
|
Unavailable |
|||
|
#22
CAP ASSY, SPARK PLUG
33510-20E00
|
$39.06 | ||
|
Available to order. Add to View Price |
|||
|
#23
SEAL,SPARK PLUG
33541-23E10
|
$8.70 | ||
|
Available to order. Add to View Price |
|||
|
#24
SEAL,SPARK PLUG
33541-23E10
|
$8.70 | ||
|
Unavailable |
|||
|
#25
SEAL, SPARK PLUG
33541-47D00
|
$10.11 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#26
SEAL,HIGH TENSION CORD
33542-17G01
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#27
SEAL,HIGH TENSION CORD
33542-38B00
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#28
CONTROL UNIT,FI
32920-18K51
|
|||
|
Unavailable |
|||
|
#29
SENSOR ASSY,FUEL CUT
33960-06G10
|
$116.08 | ||
|
Available to order. Add to View Price |
|||
