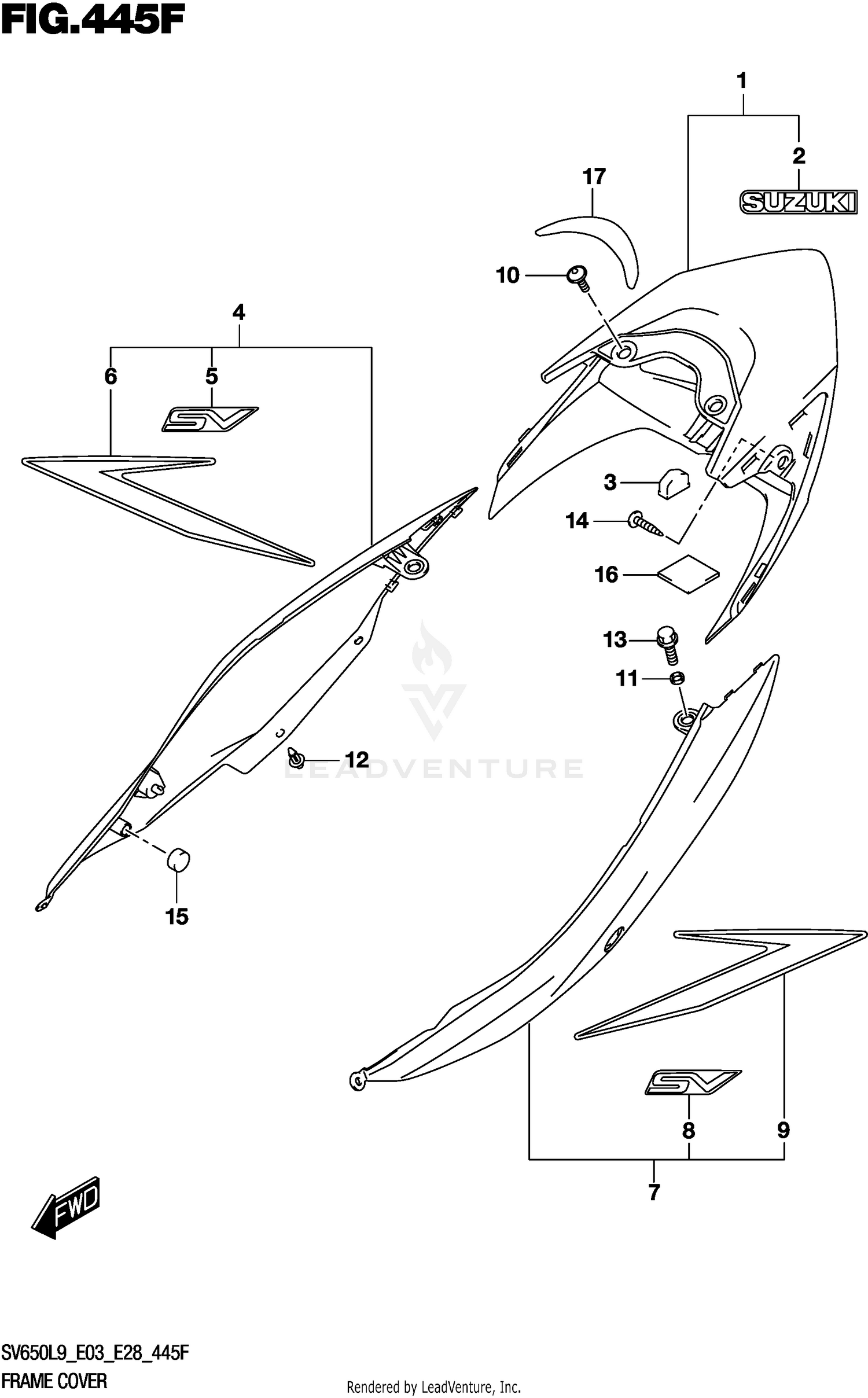

Frame Cover (sv650al9 E28) (for Agt) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER,FRAME RR CTR (BLACK)
47310-18K00-4TX
Superseded by 47310-18K01-4TX
|
$205.37 | ||
|
Available to order. Add to View Price |
|||
|
#2
.EMBLEM,"SUZUKI" (BLACK)
68171-28H10-KGL
|
$9.27 | ||
|
Available to order. Add to View Price |
|||
|
#3
CUSHION,FRAME COVER CTR
47315-18K00
|
$14.38 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER,FRAME REA
47410-18K30-YVB
Superseded by 47410-18K31-YVB
|
$112.76 | ||
|
Unavailable |
|||
|
#5
.EMBLEM, "SV" (WHITE)
68111-18K00-YWW
|
$16.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
.TAPE, FRAME COVER RH
68135-18K20-BBD
|
$16.89 | ||
|
Available to order. Add to View Price |
|||
|
#6
.TAPE, FRAME COVER RH
68135-18K20-BBD
|
$16.89 | ||
|
Unavailable |
|||
|
#7
COVER,FRAME REA
47510-18K30-YVB
Superseded by 47510-18K31-YVB
|
$121.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
.EMBLEM, "SV" (WHITE)
68111-18K00-YWW
|
$16.89 | ||
|
Unavailable |
|||
|
#9
.TAPE, FRAME COVER LH
68145-18K20-BBD
|
$16.89 | ||
|
Available to order. Add to View Price |
|||
|
#9
.TAPE, FRAME COVER LH
68145-18K20-BBD
|
$16.89 | ||
|
Unavailable |
|||
|
#10
BOLT (5X13)
09139-05074
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER (8.5X12X2.5)
09180-08052
|
$1.25 | ||
|
Unavailable |
|||
|
#12
CLIP
09409-06314
Superseded by 09409-06314-5PK
|
$3.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#13
BOLT (8X12)
01550-0812A
|
$2.88 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
SCREW
03541-0510A
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#15
CUSHION (14X20X9)
09329-14002
Superseded by 09329-14003
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#16
PROTECTOR (50X50X5)
33652-20C00
|
$3.86 | ||
|
Available to order. Add to View Price |
|||
|
#17
TAPE,FRAME COVER RR CTR
47312-18K00
|
$13.02 | ||
|
Available to order. Add to View Price |
|||
