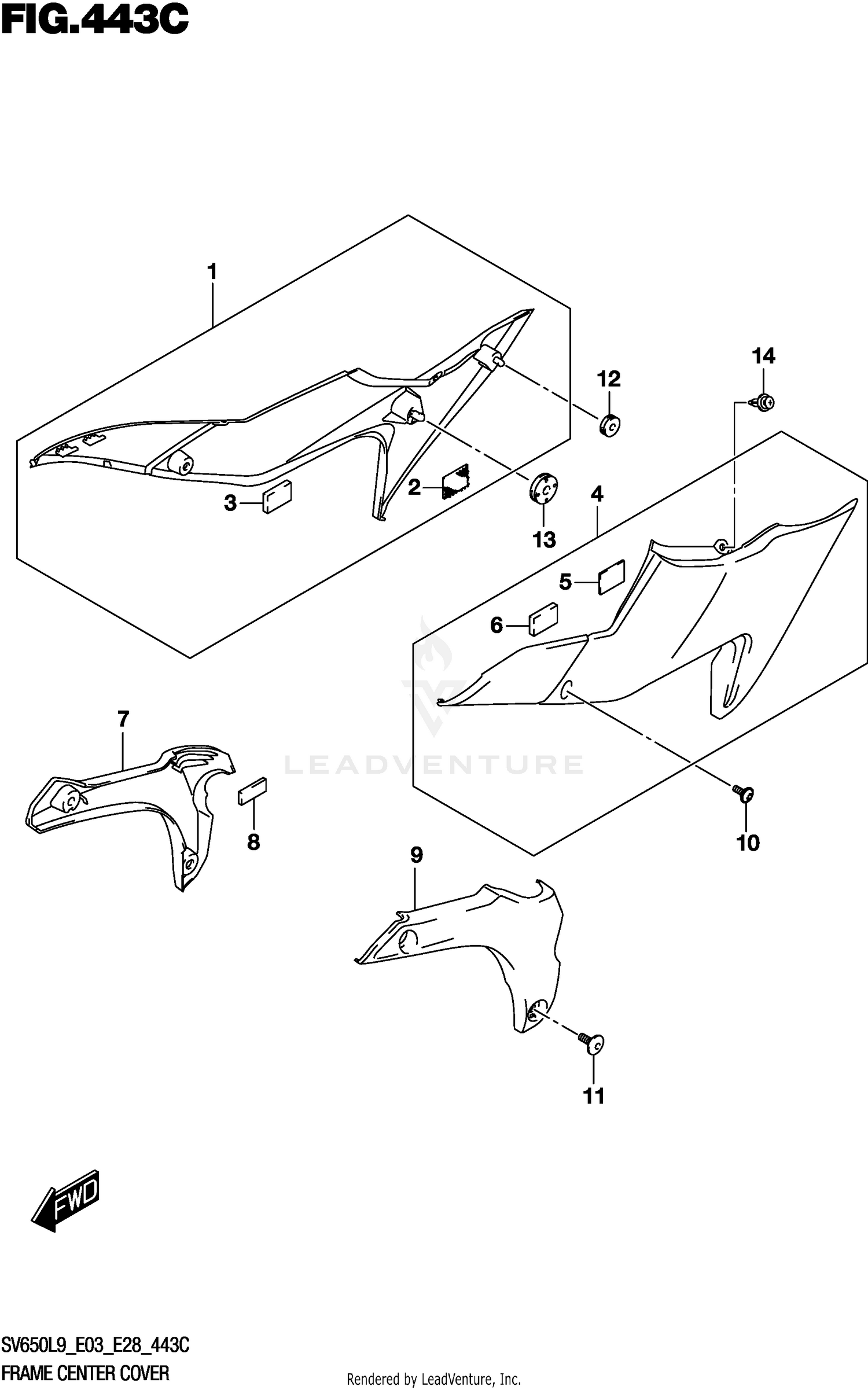

Frame Center Cover (sv650al9 E28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER,FRAME FRONT RH
47110-18K00
|
$122.22 | ||
|
Available to order. Add to View Price |
|||
|
#2
.FASTENER,FUEL TANK (33X25X3.
44572-13G00
|
$13.67 | ||
|
Available to order. Add to View Price |
|||
|
#3
CUSHION
63411-35B00
Superseded by 51827-01A00
|
$6.66 | ||
|
Available to order. Add to View Price |
|||
|
#4
COVER,FRAME LH
47210-18K00
|
$122.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
.FASTENER,FUEL TANK (33X25X3.
44572-13G00
|
$13.67 | ||
|
Unavailable |
|||
|
#6
CUSHION
63411-35B00
Superseded by 51827-01A00
|
$6.66 | ||
|
Unavailable |
|||
|
#7
COVER,FRAME LOWER RH (BLACK)
47611-18K00-YKV
|
$142.63 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION,FRAME COVER LWR NO.2
47613-44H00
|
$7.35 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER,FRAME LOWER LH (BLACK)
47711-18K00-YKV
|
$142.63 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (5X13)
09139-05074
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW (6X16)
47915-31J00
|
$3.61 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION
09320-06504
|
$6.04 | ||
|
Available to order. Add to View Price |
|||
|
#13
CUSHION
09320-08028
|
$3.70 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
CLIP (BLACK)
09409-06322
Superseded by 09409-06322-5PK
|
$3.83 | ||
|
Available to order. Add to View Price |
|||
