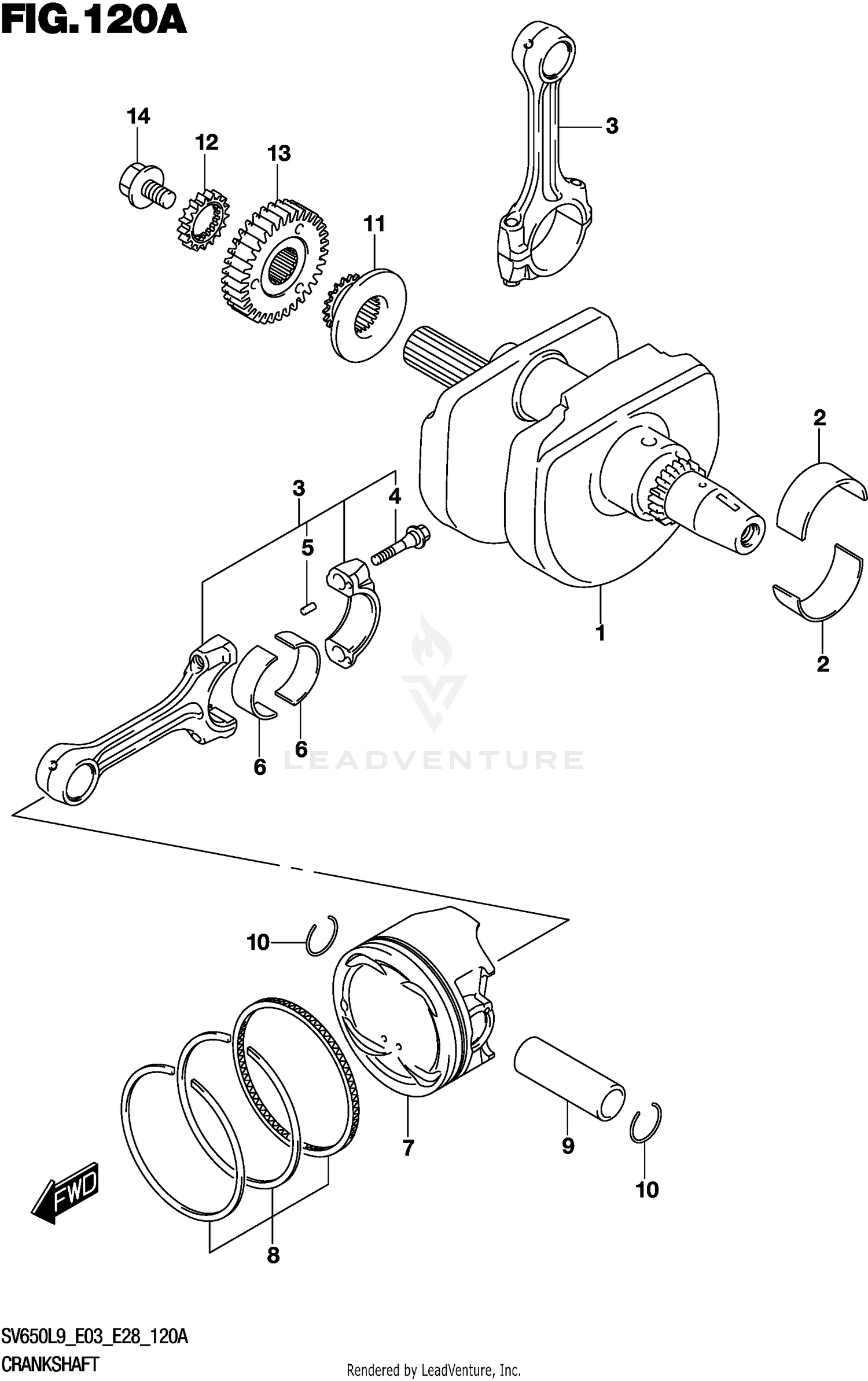

Crankshaft Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKSHAFT
12220-44H20
|
$1,267.58 | ||
|
Available to order. Add to View Price |
|||
|
#2-1
BEARING,CRANKSHAFT
12229-44H10-0A0
|
$21.47 | ||
|
Available to order. Add to View Price |
|||
|
#2-2
BEARING,CRANKSHAFT
12229-44H10-0B0
|
$21.47 | ||
|
Available to order. Add to View Price |
|||
|
#2-3
BEARING,CRANKSHAFT
12229-44H10-0C0
|
$17.08 | ||
|
Available to order. Add to View Price |
|||
|
#3
CONNROD ASSY
12160-17G20
|
$186.91 | ||
|
Available to order. Add to View Price |
|||
|
#4
.BOLT,CONNROD
12163-24F10
|
$21.22 | ||
|
Available to order. Add to View Price |
|||
|
#5
.PIN
04221-04089
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#6-1
BEARING,CRANK PIN
12164-46E10-0A0
|
$20.26 | ||
|
Available to order. Add to View Price |
|||
|
#6-2
BEARING,CRANK PIN
12164-46E10-0B0
|
$20.64 | ||
|
Available to order. Add to View Price |
|||
|
#6-3
BEARING,CRANK PIN
12164-46E10-0C0
|
$20.64 | ||
|
Available to order. Add to View Price |
|||
|
#6-4
BEARING,CRANK P
12164-46E10-0D0
Superseded by 12164-46E30-0D0
|
$20.64 | ||
|
Unavailable |
|||
|
#7
PISTON
12111-18K01-0F0
|
$124.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING SET,PISTON
12140-15H10
|
$125.30 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN,PISTON
12151-05A10
|
$14.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP
09381-20004
|
$2.05 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SPROCKET,CAM CHAIN DRIVE (NT:
12731-19F00
|
$62.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPROCKET,CAM CHAIN DRIVE (NT:
12731-19F00
|
$62.60 | ||
|
Unavailable |
|||
|
#12
GEAR,WATER PUMP DRIVE (NT:17)
17451-17G00
|
$35.77 | ||
|
Available to order. Add to View Price |
|||
|
#13
GEAR ASSY,PRIMARY DRIVE (NT:3
21100-44H00
|
$236.56 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT (10X19)
09103-10338
|
$9.09 | ||
|
Available to order. Add to View Price |
|||
