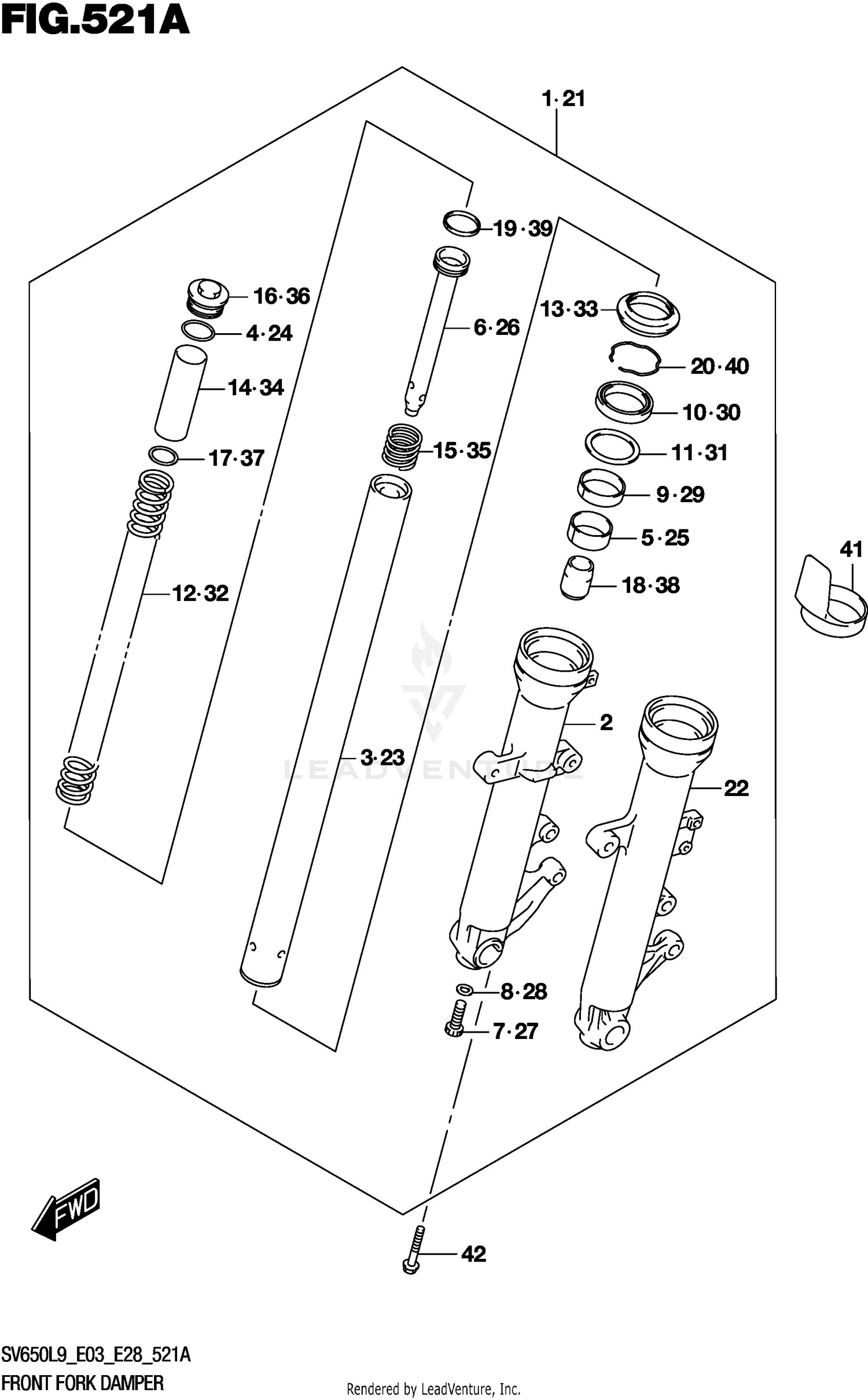

Front Fork Damper (sv650l9 E03) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DAMPER ASSY,FR RH (BLACK)
51103-18K00-291
|
$890.01 | ||
|
Available to order. Add to View Price |
|||
|
#1
DAMPER ASSY,FR RH (BLACK)
51103-18K00-291
|
$890.01 | ||
|
Unavailable |
|||
|
#2
.TUBE,OUTER RH (BLACK)
51130-18K00-291
|
$445.72 | ||
|
Available to order. Add to View Price |
|||
|
#3
.TUBE,INNER
51110-18K00
|
$327.86 | ||
|
Available to order. Add to View Price |
|||
|
#4
.O RING
51117-12C00
|
$5.17 | ||
|
Available to order. Add to View Price |
|||
|
#5
.BUSH, SLIDE
51121-44H00
|
$25.74 | ||
|
Available to order. Add to View Price |
|||
|
#6
.CYLINDER
51146-17G20
|
$72.65 | ||
|
Unavailable |
|||
|
#7
.BOLT (8X18)
51147-06F10
|
$6.76 | ||
|
Available to order. Add to View Price |
|||
|
#8
.GASKET (8.2X13X1.5)
51148-36011
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
.BUSH,GUIDE
51152-01H10
|
$23.56 | ||
|
Available to order. Add to View Price |
|||
|
#10
.SEAL,OIL
51153-01H10
|
$34.74 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
.SPACER,SEAL
51168-38B00
|
$8.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
.SPRING,FRONT
51171-18K00
|
$33.24 | ||
|
Available to order. Add to View Price |
|||
|
#13
.SEAL,DUST
51173-01H00
|
$15.03 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#14
.COLLAR,SPRING
51176-18K00
|
$8.21 | ||
|
Available to order. Add to View Price |
|||
|
#15
.SPRING,REBOUND
51177-17G50
|
$5.63 | ||
|
Unavailable |
|||
|
#16
.BOLT,FORK
51189-47D50
|
$58.96 | ||
|
Available to order. Add to View Price |
|||
|
#17
.JOINT,SPRING
51192-19C00
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
|
#18
.PIECE,OIL LOCK
51195-48B31
|
$34.12 | ||
|
Available to order. Add to View Price |
|||
|
#19
.RING,PISTON
51196-12C00
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#20
.RING,STOPPER
51556-38B00
|
$9.32 | ||
|
Available to order. Add to View Price |
|||
|
#21
DAMPER ASSY,FR LH (BLACK)
51104-18K00-291
|
$890.01 | ||
|
Available to order. Add to View Price |
|||
|
#21
DAMPER ASSY,FR LH (BLACK)
51104-18K00-291
|
$890.01 | ||
|
Unavailable |
|||
|
#22
.TUBE,OUTER LH (BLACK)
51140-18K00-291
|
$462.72 | ||
|
Available to order. Add to View Price |
|||
|
#23
.TUBE,INNER
51110-18K00
|
$327.86 | ||
|
Unavailable |
|||
|
#24
.O RING
51117-12C00
|
$5.17 | ||
|
Unavailable |
|||
|
#25
.BUSH, SLIDE
51121-44H00
|
$25.74 | ||
|
Unavailable |
|||
|
#26
.CYLINDER
51146-17G20
|
$72.65 | ||
|
Unavailable |
|||
|
#27
.BOLT (8X18)
51147-06F10
|
$6.76 | ||
|
Unavailable |
|||
|
#28
.GASKET (8.2X13X1.5)
51148-36011
|
$4.60 | ||
|
Unavailable |
|||
|
#29
.BUSH,GUIDE
51152-01H10
|
$23.56 | ||
|
Unavailable |
|||
|
#30
.SEAL,OIL
51153-01H10
|
$34.74 | ||
|
Unavailable |
|||
|
#31
.SPACER,SEAL
51168-38B00
|
$8.62 | ||
|
Unavailable |
|||
|
#32
.SPRING,FRONT
51171-18K00
|
$33.24 | ||
|
Unavailable |
|||
|
#33
.SEAL,DUST
51173-01H00
|
$15.03 | ||
|
Unavailable |
|||
|
#34
.COLLAR,SPRING
51176-18K00
|
$8.21 | ||
|
Unavailable |
|||
|
#35
.SPRING,REBOUND
51177-17G50
|
$5.63 | ||
|
Unavailable |
|||
|
#36
.BOLT,FORK
51189-47D50
|
$58.96 | ||
|
Unavailable |
|||
|
#37
.JOINT,SPRING
51192-19C00
|
$5.67 | ||
|
Unavailable |
|||
|
#38
.PIECE,OIL LOCK
51195-48B31
|
$34.12 | ||
|
Unavailable |
|||
|
#39
.RING,PISTON
51196-12C00
|
$9.51 | ||
|
Unavailable |
|||
|
#40
.RING,STOPPER
51556-38B00
|
$9.32 | ||
|
Unavailable |
|||
|
#41
PROTECTOR
51201-32F00
|
$27.82 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT
51321-10F00
Superseded by 07130-08307
|
$4.98 | ||
|
Available to order. Add to View Price |
|||
