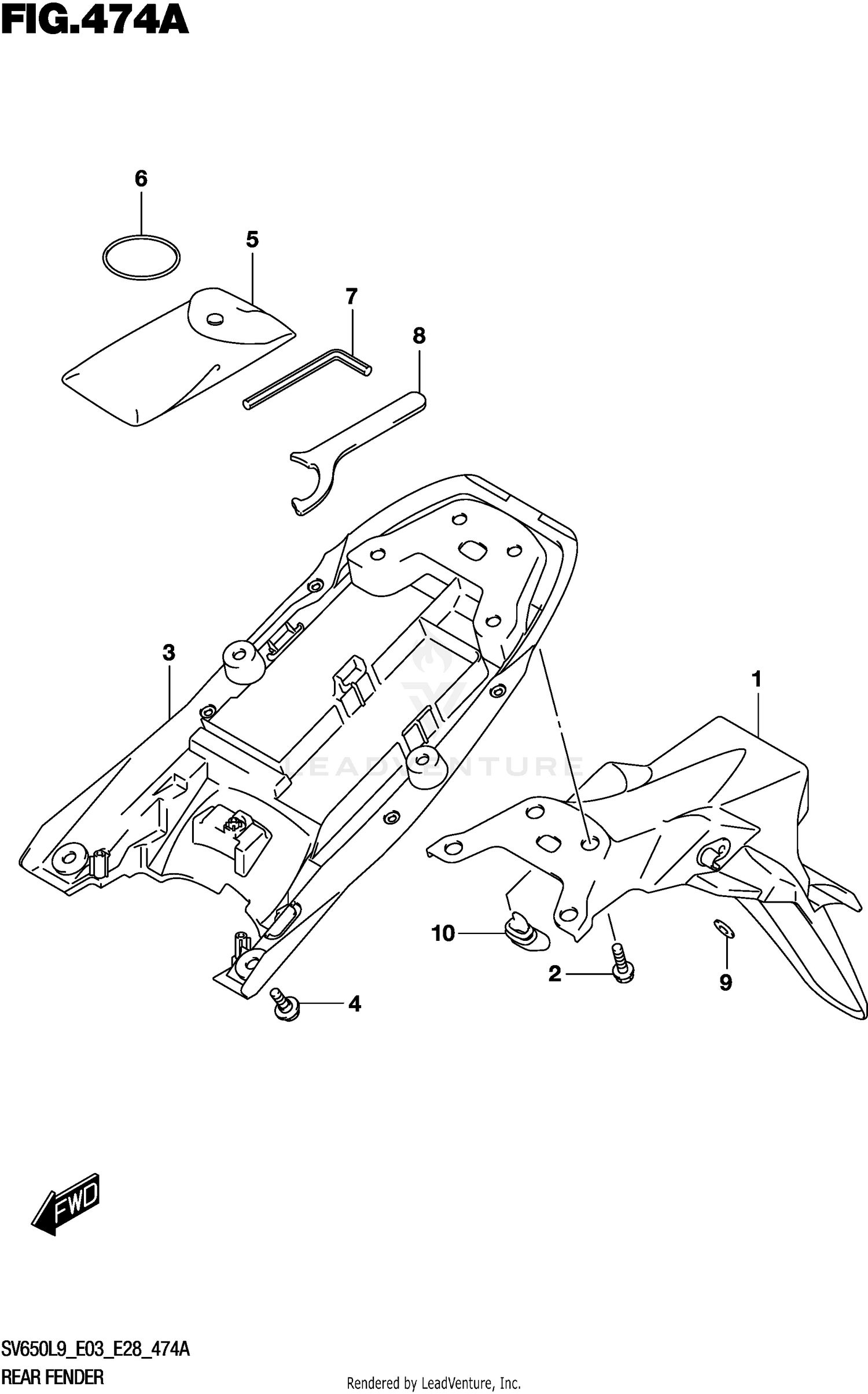

Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER,REAR REAR
63112-18K00
|
$71.77 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT
01550-0612A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#3
FENDER,REAR FRONT
63111-18K00
|
$58.23 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT (6X12)
09111-06107
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#5
TOOL ASSY
09800-21058
Superseded by 09800-21101
|
$26.84 | ||
|
Available to order. Add to View Price |
|||
|
#6
O RING (D:3.5,ID:56.5)
09280-57003
|
$5.54 | ||
|
Unavailable |
|||
|
#7
SPANNER,HEXAGON (5)
09816-00059
|
$9.20 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP, WRENCH
09822-00003
|
$13.21 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER (6.5X20X1.2)
09160-06077
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION,REAR FENDER
63118-18K01
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
