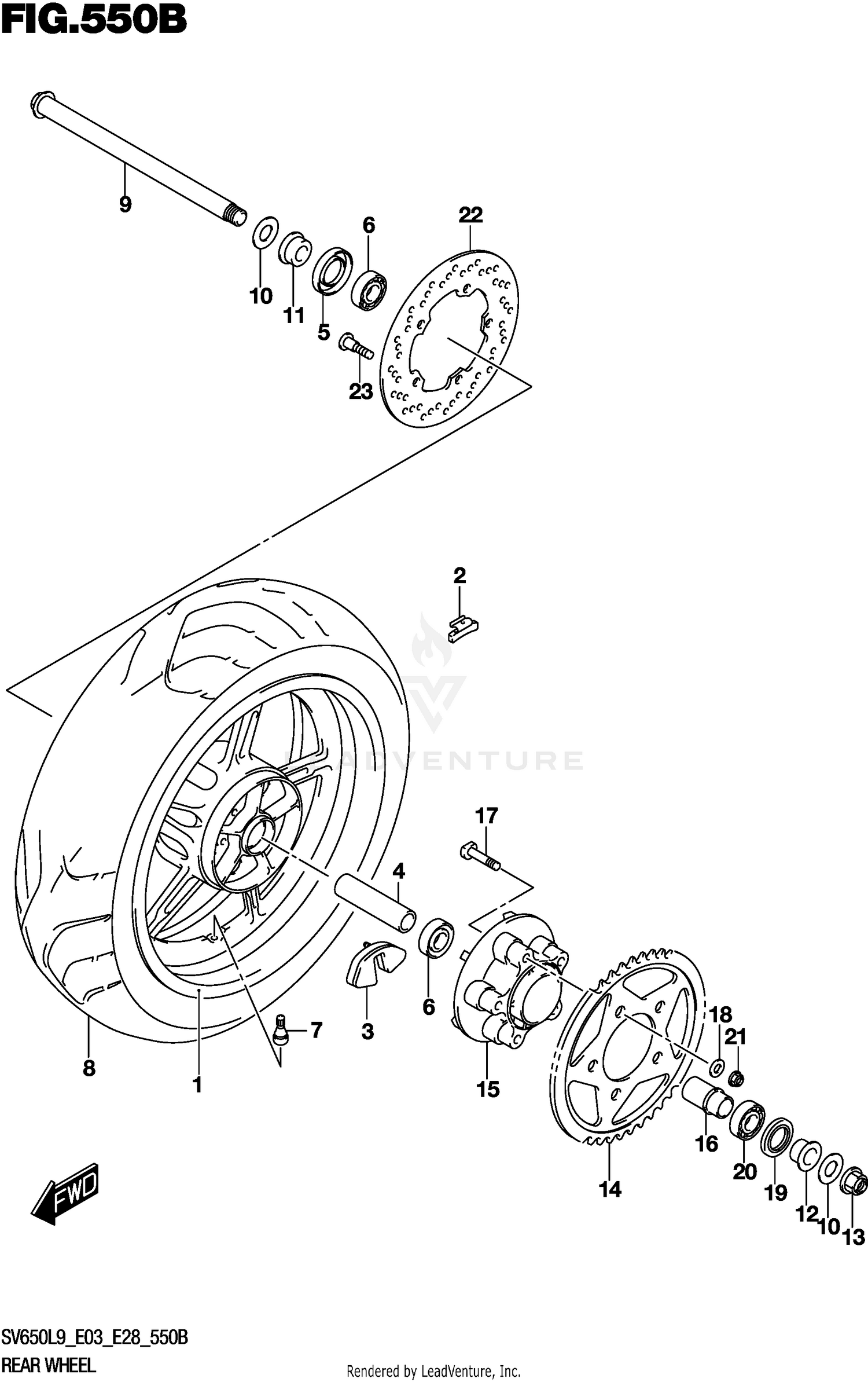

Rear Wheel (sv650l9 E33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1-1
WHEEL,REAR (17M/CXMT5.0,RED)
64111-44H00-QGY
|
$930.17 | ||
|
Available to order. Add to View Price |
|||
|
#1-1
WHEEL,REAR (17M/CXMT5.0,RED)
64111-44H00-QGY
|
$930.17 | ||
|
Unavailable |
|||
|
#1-2
WHEEL,REAR(17M/
64111-44H00-YLY
Superseded by 64111-18K00-YLY
|
$772.37 | ||
|
Unavailable |
|||
|
#1-2
WHEEL,REAR(17M/
64111-44H00-YLY
Superseded by 64111-18K00-YLY
|
$772.37 | ||
|
Unavailable |
|||
|
#2-1
BALANCER,WHEEL NO.1 (10G)
55411-22H00
|
$9.30 | ||
|
Available to order. Add to View Price |
|||
|
#2-2
BALANCER,WHEEL NO.2 (20G)
55412-22H00
|
$10.88 | ||
|
Available to order. Add to View Price |
|||
|
#2-3
BALANCER,WHEEL NO.3 (30G)
55413-22H00
|
$12.39 | ||
|
Available to order. Add to View Price |
|||
|
#3
ABSORBER,SHOCK REAR HUB
64651-27A01
|
$12.08 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER (20.5X28X88)
09180-20062
|
$20.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
SEAL,OIL (27X47X7)
09285-28001
Superseded by 09285-28004
|
$15.20 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
08123-62047
Superseded by 08123-6204B
|
$21.50 | ||
|
Available to order. Add to View Price |
|||
|
#7
VALVE ASSY, WHEEL RIM (TR412)
43130-24A00
|
$10.93 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
TIRE,REAR (160/60ZR17 M/C 69W
65110-18K00
Superseded by 65110-18K02
|
$252.59 | ||
|
Unavailable |
|||
|
#8
TIRE,REAR (160/60ZR17 M/C 69W
65110-18K00
Superseded by 65110-18K02
|
$252.59 | ||
|
Unavailable |
|||
|
#8
TIRE,REAR (160/60ZR17 M/C 69W
65110-18K00
Superseded by 65110-18K02
|
$252.59 | ||
|
Unavailable |
|||
|
#9
AXLE,REAR
64711-17E40
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER,REAR AXLE
64723-44H00
|
$5.59 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPACER,REAR AXLE RH
64741-22D00
|
$25.00 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPACER,REAR AXLE LH
64751-44H00
|
$40.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
09159-20013
|
$34.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPROCKET,RR (46T-520)
64511-44H20
|
$87.50 | ||
|
Available to order. Add to View Price |
|||
|
#15
DRUM,REAR SPROCKET MTG
64611-19F10
|
$179.61 | ||
|
Available to order. Add to View Price |
|||
|
#16
RETAINER,REAR HUB BEARING
64733-27A00
|
$29.10 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT (10X47)
09119-10043
|
$5.26 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER (10.5X22X2.3)
09160-10039
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#19
OIL SEAL (35X62X8)
09285-35001
|
$12.59 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING (25X62X17)
09262-25073
|
$31.56 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
08319-3110A
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#22
DISC,RR BRAKE
69211-38G00
|
$324.63 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT (8X21)
09106-08160
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLOR:KEL=YVB(BLACK)/YSF(BLUE)
SPECIAL NOTE
|
|||
|
Unavailable |
|||
|
#24
COLOR:KEL=YVB(BLACK)/YSF(BLUE)
SPECIAL NOTE
|
|||
|
Unavailable |
|||
