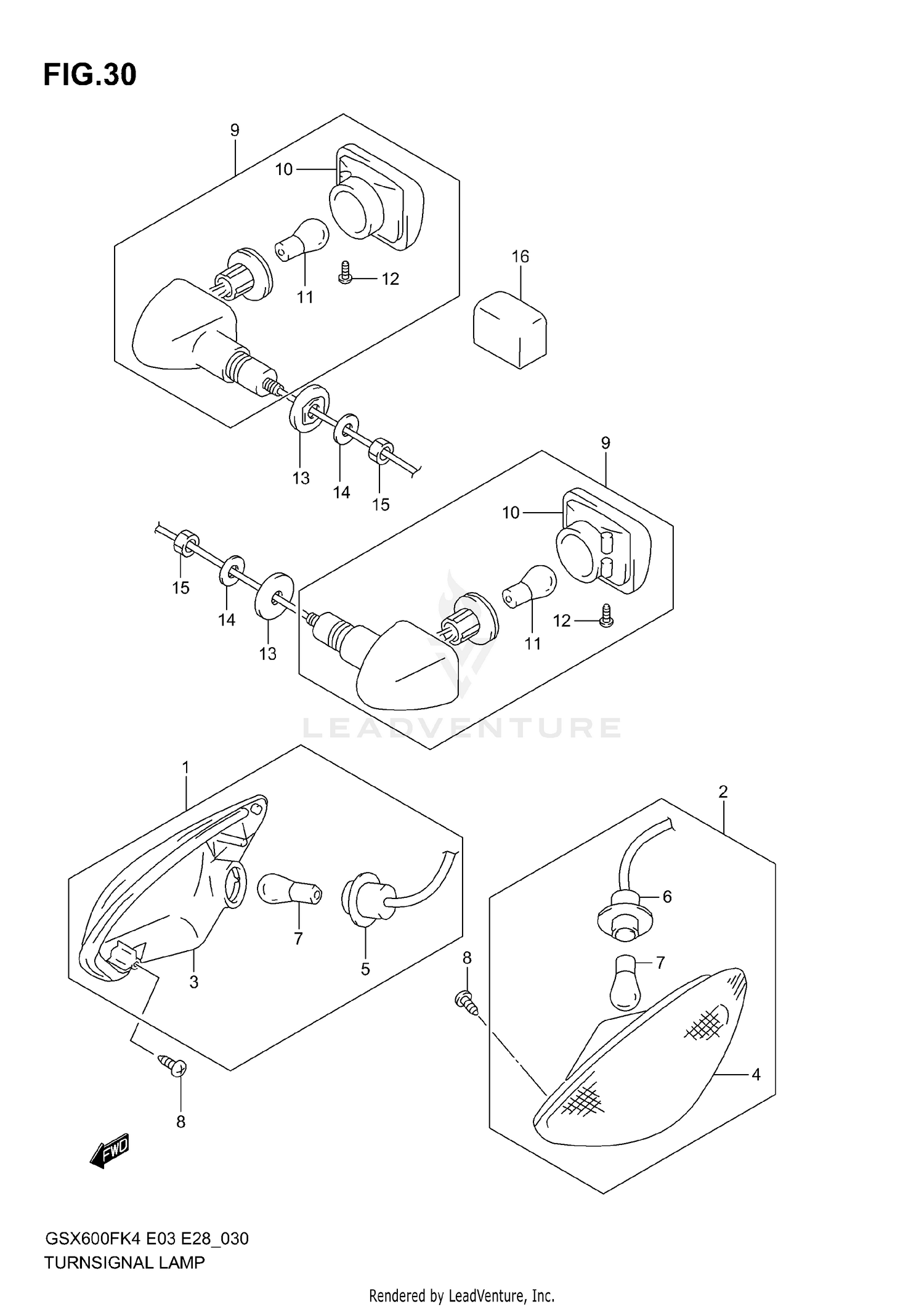

Turnsignal Lamp (model K4/k5) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY, FRONT RH
35601-08F00
|
$95.19 | ||
|
Available to order. Add to View Price |
|||
|
#2
LAMP ASSY, FRONT LH
35602-08F00
|
$95.19 | ||
|
Available to order. Add to View Price |
|||
|
#3
LAMP UNIT, RH
35610-08F00
|
$66.69 | ||
|
Available to order. Add to View Price |
|||
|
#4
LAMP UNIT, LH
35630-08F00
|
$65.46 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#5
SOCKET & CORD, RH
35618-08F00
|
$29.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
SOCKET & CORD, LH
35618-08F00
|
$29.35 | ||
|
Unavailable |
|||
|
#7
BULB (12V,21W)
09471-12045
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
03541-05163
Superseded by 03541-0516A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#9
LAMP ASSY, REAR RH
35603-33E30
|
$125.57 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
LAMP ASSY, REAR LH
35604-33E30
|
$125.57 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
LAMP UNIT
35610-33E00
|
$36.97 | ||
|
Available to order. Add to View Price |
|||
|
#11
BULB (12V,21W)
09471-12045
|
$4.13 | ||
|
Unavailable |
|||
|
#12
SCREW
03242-04123
Superseded by 03242-0412B
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPACER, REAR
35695-17C00
|
$5.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, REAR (10.5X30X2.3)
09160-10501
|
$2.81 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
08310-00103
Superseded by 08310-0010A
|
$2.33 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
RELAY ASSY,TURNSIGNAL LAMP
38610-03F00
Superseded by 38610-03F01
|
$115.08 | ||
|
Available to order. Add to View Price |
|||
