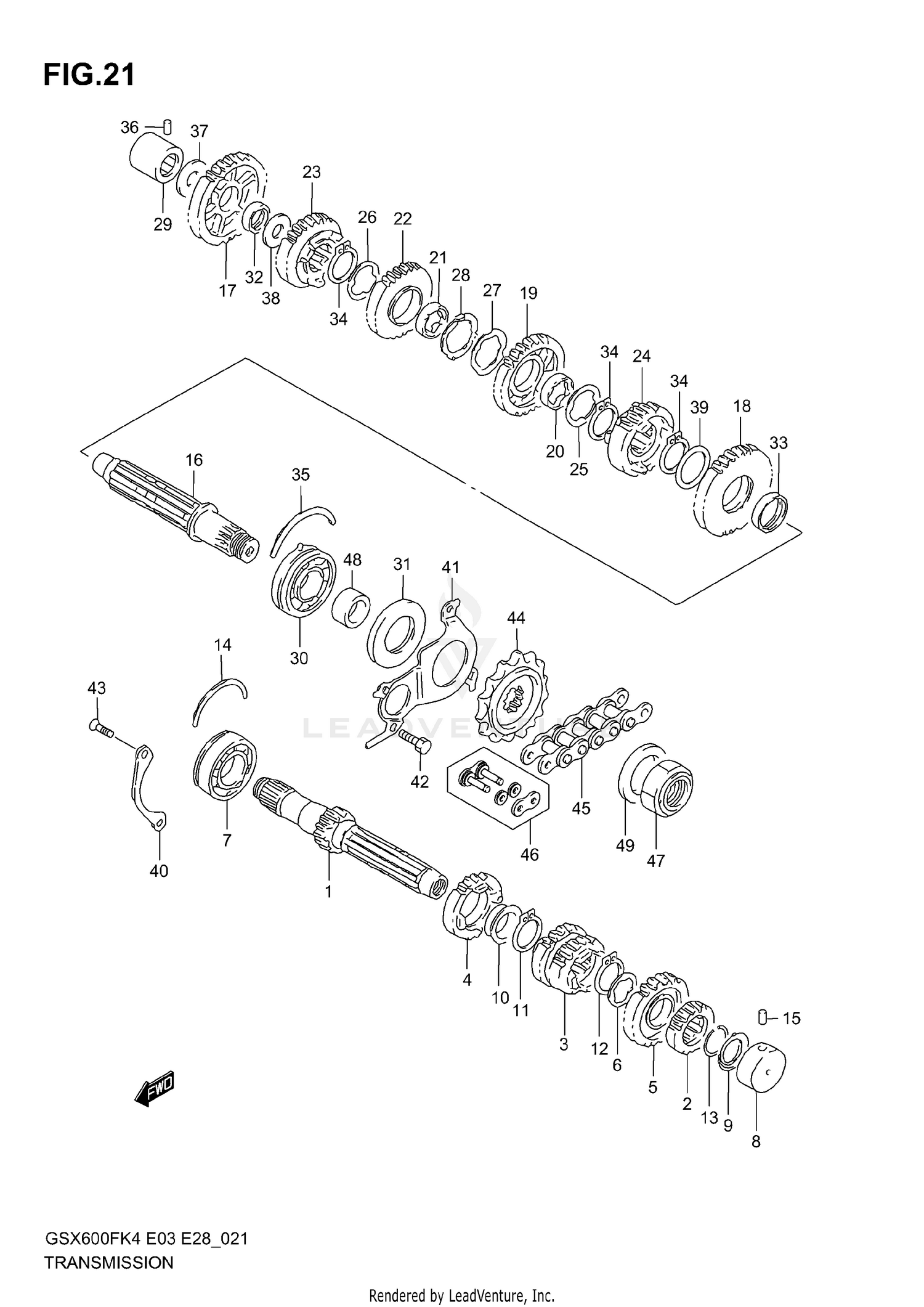

Transmission Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHAFT, CNTR (NT:12)
24121-19C01
|
$276.47 | ||
|
Available to order. Add to View Price |
|||
|
#2
GEAR, 2ND DRIVE (NT:16)
24221-27A01
|
$105.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
GEAR, 3/4TH DRIVE (NT:17/20)
24231-27A00
|
$174.68 | ||
|
Available to order. Add to View Price |
|||
|
#4
GEAR, 5TH DRIVE (NT:22)
24251-27A01
|
$102.69 | ||
|
Unavailable |
|||
|
#5
GEAR, 6TH DRIVE (NT:21)
24261-17C02
|
$94.17 | ||
|
Unavailable |
|||
|
#6
WASHER,LOCK (25.1X31X1.0)
09167-25012
|
$4.03 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING, LH
09262-25051
Superseded by 09262-25105
|
$74.02 | ||
|
Available to order. Add to View Price |
|||
|
#8
BEARING(20X34X1
09263-20049
Superseded by 09263-20119
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL, OIL (20X31.2X2.7)
09285-20006
|
$8.17 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
BUSH, 5TH DRIVE GEAR
24322-19F00
|
$26.86 | ||
|
Available to order. Add to View Price |
|||
|
#11
RING,SNAP
09380-25003
|
$3.89 | ||
|
Available to order. Add to View Price |
|||
|
#12
RING,SNAP
09380-25003
|
$3.89 | ||
|
Unavailable |
|||
|
#13
CIRCLIP, 2ND GEAR
09380-25013
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
C RING
09390-62012
|
$9.35 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIN, CNTR BRG, LH
04221-07129
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
SHAFT, DRIVE
24131-20C31
|
$215.12 | ||
|
Unavailable |
|||
|
#17
GEAR, 1ST DRIVEN (NT:37)
24311-19C10
|
$140.97 | ||
|
Available to order. Add to View Price |
|||
|
#18
GEAR, 2ND DRIVEN (NT:33)
24321-20C00
|
$124.57 | ||
|
Available to order. Add to View Price |
|||
|
#19
GEAR, 3RD DRIVEN (NT:28)
24331-27A00
|
$140.97 | ||
|
Available to order. Add to View Price |
|||
|
#20
BUSH, 3RD DRIVEN
24332-27A00
|
$12.12 | ||
|
Available to order. Add to View Price |
|||
|
#21
BUSH, 4TH DRIVEN
24332-27A00
|
$12.12 | ||
|
Unavailable |
|||
|
#22
GEAR, 4TH DRIVEN (NT:28)
24341-27A01
|
$118.55 | ||
|
Available to order. Add to View Price |
|||
|
#23
GEAR, 5TH DRIVEN (NT:27)
24351-27A00
|
$94.17 | ||
|
Unavailable |
|||
|
#24
GEAR, 6TH DRIVEN (NT:23)
24361-20C01
|
$128.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, 3RD LH (28.1X38X1)
09167-28001
|
$5.00 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, 4TH RH (28.1X38X1)
09167-28001
|
$5.00 | ||
|
Unavailable |
|||
|
#27
WASHER, 3RD RH (28.1X43X1.5)
09167-28002
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, 3RD RH (28.1X40X1)
09169-28001
|
$4.19 | ||
|
Available to order. Add to View Price |
|||
|
#29
BEARING (20X34X20)
09263-20040
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BEARING, DRIVE SHAFT LH
09267-25011
|
$169.92 | ||
|
Available to order. Add to View Price |
|||
|
#31
SEAL, DRIVE SHAFT OIL
09283-34005
|
$15.81 | ||
|
Available to order. Add to View Price |
|||
|
#32
BUSH, 1ST DRIVEN GEAR
09300-22008
|
$16.04 | ||
|
Available to order. Add to View Price |
|||
|
#33
BUSH, 2ND DRIVEN GEAR
09300-28003
|
$15.81 | ||
|
Available to order. Add to View Price |
|||
|
#34
CIRCLIP
08331-31286
Superseded by 08331-31289
|
$2.67 | ||
|
Available to order. Add to View Price |
|||
|
#35
C RING
09390-62012
|
$9.35 | ||
|
Unavailable |
|||
|
#36
PIN, DRIVE SHAFT BRG, RH
04221-07209
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, 1ST, RH (20X34X1.0)
09181-20251
|
$3.48 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER, 1ST, LH (22X34X1.0)
09181-22223
|
$3.97 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER, 2ND (28X38X1.0)
09181-28195
|
$5.18 | ||
|
Available to order. Add to View Price |
|||
|
#40
RETAINER, CNTR SHAFT
24741-27A00
|
$11.37 | ||
|
Available to order. Add to View Price |
|||
|
#41
RETAINER, DRIVE SHAFT
24751-40C01
|
$9.64 | ||
|
Available to order. Add to View Price |
|||
|
#42
BOLT
01500-06123
Superseded by 01500-0612A
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#43
SCREW, CNTR SHAFT (6X12)
09126-06011
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#44
SPROCKET, ENGINE (NT:15)
27510-17C10
|
$99.96 | ||
|
Available to order. Add to View Price |
|||
|
#45
CHAIN ASSY (RK50SM0Z1.118LE)
27600-16G00-118
|
$286.88 | ||
|
Available to order. Add to View Price |
|||
|
#46
JOINT SET, DRIVE
27620-16G00
|
$24.75 | ||
|
Available to order. Add to View Price |
|||
|
#47
NUT, ENGINE SPROCKET
09159-20004
|
$19.66 | ||
|
Available to order. Add to View Price |
|||
|
#48
SPACER, ENGINE SPROCKET
09180-25091
|
$21.60 | ||
|
Available to order. Add to View Price |
|||
|
#49
WASHER, SPROCKET (25X40X1.5)
09181-25268
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
