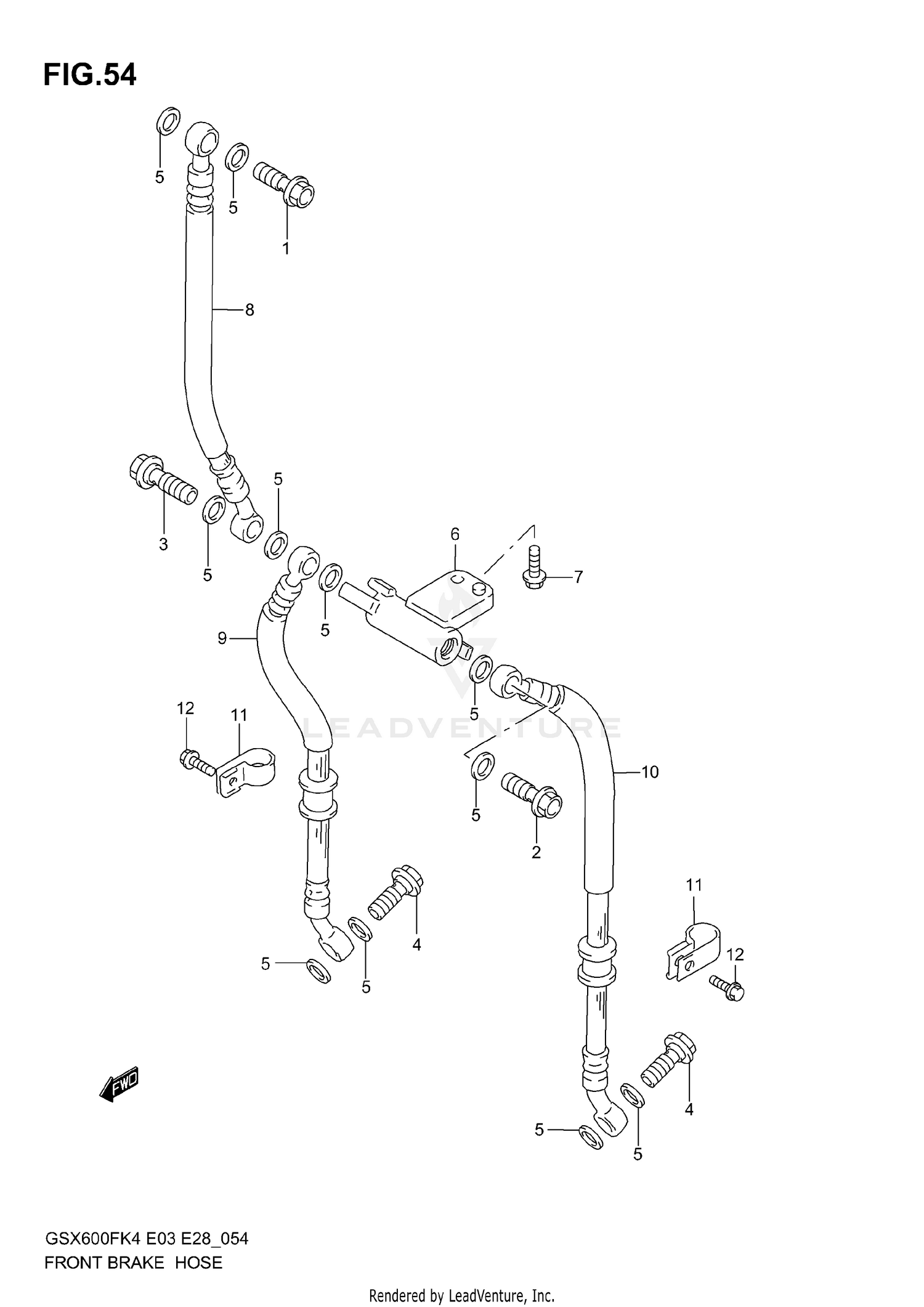

Front Brake Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
UNION (10X1.00X22)
09360-10041
Superseded by 09360-10061
|
$8.19 | ||
|
Available to order. Add to View Price |
|||
|
#2
UNION (10X1.00X22)
09360-10041
Superseded by 09360-10061
|
$8.19 | ||
|
Unavailable |
|||
|
#3
UNION
09360-10043
Superseded by 09360-10063
|
$8.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
UNION
09360-10042
Superseded by 09360-10062
|
$8.08 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER (10X15X1.5)
09161-10009
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#6
JOINT, BRAKE HOSE
59491-17E00
|
$70.30 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
01550-06163
Superseded by 01550-0616A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOSE COMP,FR,BR
59480-08F00
Superseded by 59480-08F01
|
$52.11 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE
59240-08F00
Superseded by 59240-08F02
|
$70.88 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE
59440-08F00
Superseded by 59440-08F02
|
$53.50 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP, BRAKE HOSE NO.2
59268-45D00
|
$12.76 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, CLAMP
01550-06123
Superseded by 01550-0612A
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
