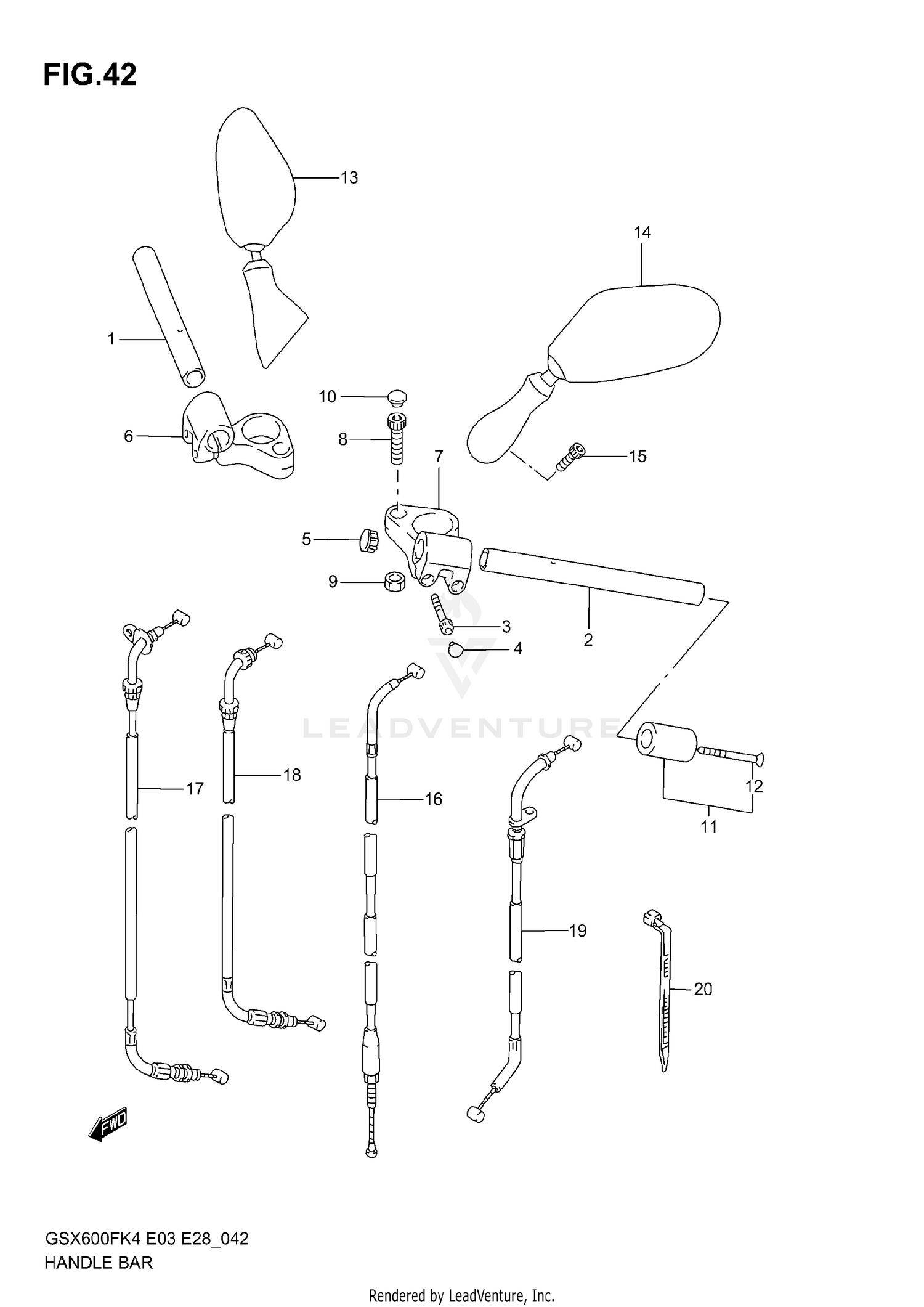

2004 Suzuki KATANA 600 HANDLEBAR OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR, RH
56110-08F01
|
$54.86 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
HANDLEBAR, LH
56150-08F01
|
$54.86 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BOLT
07130-06303
Superseded by 07130-0630B
|
$3.23 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
CAP
09250-05009
|
$1.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
CAP
57215-33400
|
$4.65 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
HOLDER, RH
56211-19C12
|
$152.50 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
HOLDER, LH
56221-19C12
|
$121.36 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
BOLT
09106-10023
|
$4.72 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
NUT
08319-31107
|
$2.59 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CAP
09250-08010
|
$1.90 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
BALANCER SET, HANDLEBAR
56200-04821
|
$39.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
SCREW
02122-06603
Superseded by 02122-0660B
|
$2.92 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
MIRROR ASSY, REAR VIEW, RH
56500-08F00
Superseded by 56500-08F10
|
$137.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
MIRROR ASSY, REAR VIEW, RH
56500-08F10
|
$137.12 | ||
|
Unavailable |
|||
|
#14
MIRROR ASSY, REAR VIEW, LH
56600-08F00
Superseded by 56600-08F10
|
$137.12 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
MIRROR ASSY, REAR VIEW, LH
56600-08F10
|
$137.12 | ||
|
Unavailable |
|||
|
#15
BOLT
07130-06163
Superseded by 07130-0616A
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
CABLE ASSY,CLUT
58200-08F00
Superseded by 58200-08F01
|
$25.86 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#17
CABLE ASSY, THROTTLE NO.1
58300-08F00
|
$30.54 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#18
CABLE ASSY, THROTTLE NO.2
58300-08F10
|
$29.27 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
CABLE, STARTER
58410-08F20
|
$31.86 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
CLAMP
09407-11401
|
$2.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
CLAMP
09407-25401
|
$4.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
