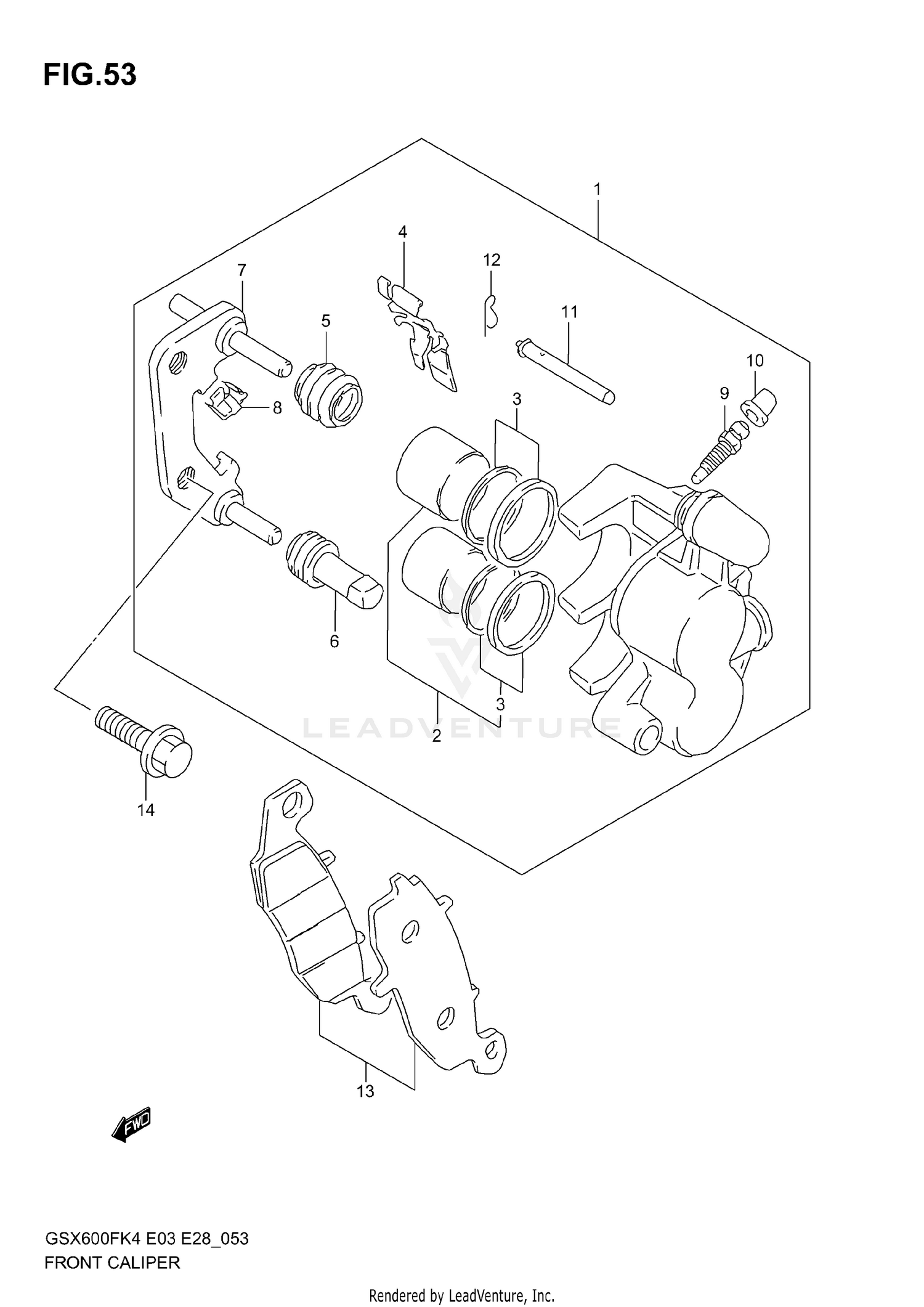

Front Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CALIPER ASSY, FRONT RH
59100-33D90-999
Superseded by 59100-33D81-999
|
$643.46 | ||
|
Available to order. Add to View Price |
|||
|
#1
CALIPER ASSY, FRONT
59300-33D90-999
Superseded by 59300-33D81-999
|
$628.44 | ||
|
Available to order. Add to View Price |
|||
|
#2
PISTON SET
59300-33831
Superseded by 59301-20820
|
$49.91 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAL SET, PISTON
59300-33841
|
$19.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
.SPRING,PAD RH
59115-33D00
|
$19.78 | ||
|
Available to order. Add to View Price |
|||
|
#4
.SPRING,PAD LH
59315-33D00
|
$19.78 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOOT
59112-44B00
|
$11.50 | ||
|
Available to order. Add to View Price |
|||
|
#6
.INSULATOR,AXLE
59313-36500
|
$7.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
.CARRIER,CALIPER RH
59150-33D01
|
$123.98 | ||
|
Available to order. Add to View Price |
|||
|
#7
.CARRIER,CALIPER LH
59350-33D01
|
$123.98 | ||
|
Available to order. Add to View Price |
|||
|
#8
.GUIDE,PAD
59116-33D00
|
$10.59 | ||
|
Available to order. Add to View Price |
|||
|
#9
BLEEDER
59121-18410
|
$11.27 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAP
55156-66310
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#11
.PIN,PAD
59141-44B01
|
$12.07 | ||
|
Available to order. Add to View Price |
|||
|
#12
.CLIP,PAD PIN
69142-45000
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
PAD SET, RH
59101-33830
|
$61.69 | ||
|
Available to order. Add to View Price |
|||
|
#13
PAD SET, LH
59301-33830
|
$64.15 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
01550-10303
Superseded by 01550-1030A
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
