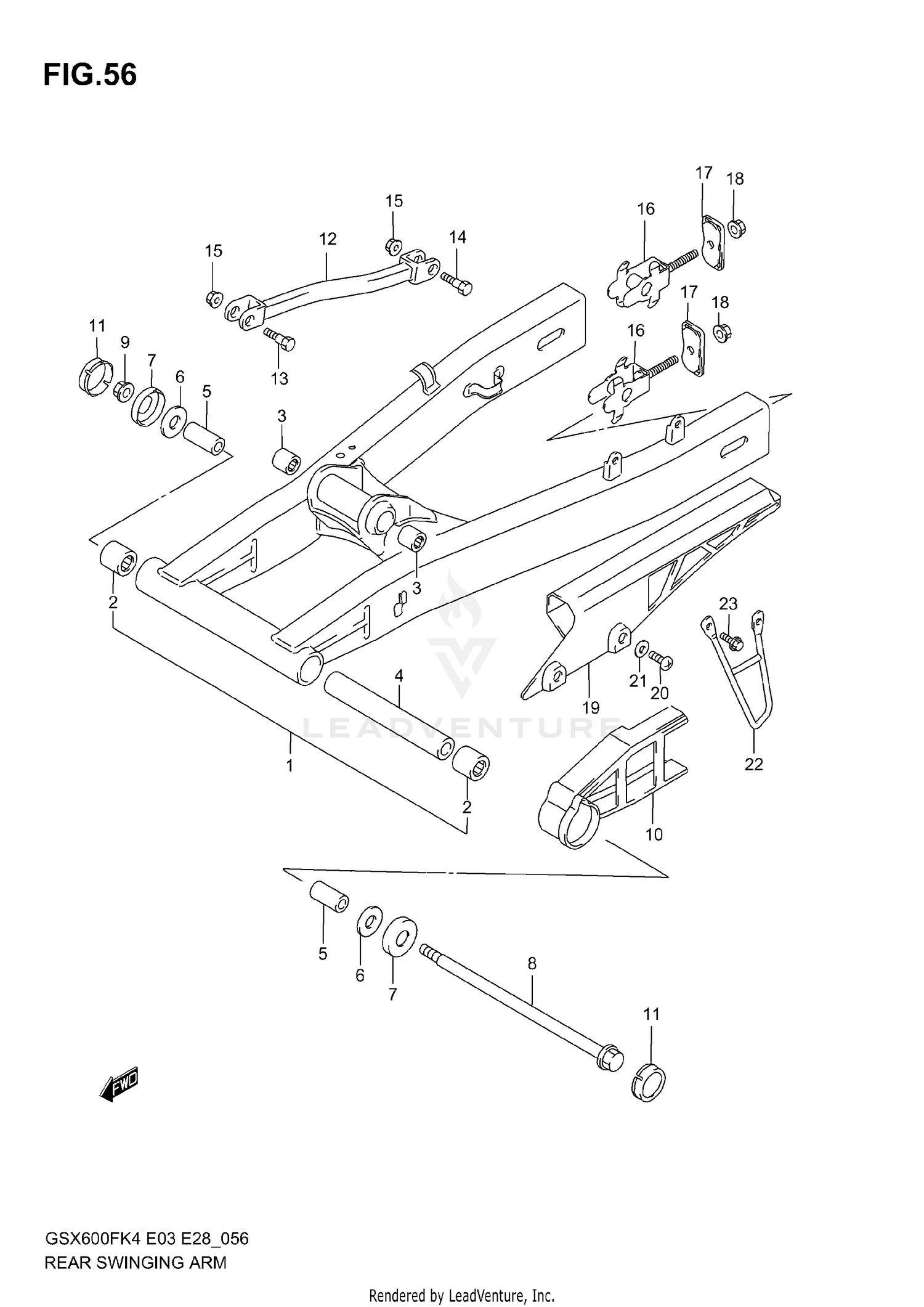

Rear Swinging Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWINGING ARM ASSY, REAR (BLACK)
61000-08F10-019
|
$774.25 | ||
|
Unavailable |
|||
|
#1
SWINGING ARM ASSY, REAR (SILVER)
61000-08F10-13L
|
$758.76 | ||
|
Unavailable |
|||
|
#2
.BEARING (22X29X30)
09263-22017
|
$28.46 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING, ROD (20X27X23.5)
09263-20071
|
$32.97 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER, PIVOT CENTER
61282-08F00
|
$23.90 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER, PIVOT
61251-38B00
|
$26.33 | ||
|
Available to order. Add to View Price |
|||
|
#6
THRUST WASHER
08211-16341
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER DUST SEAL
61262-32410
Superseded by 61262-32411
|
$10.97 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHAFT, PIVOT
61211-08F00
|
$44.46 | ||
|
Unavailable |
|||
|
#9
NUT
08319-31143
Superseded by 08319-3114B
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BUFFER,CHAIN TO
61273-20C00
Superseded by 61273-20C01
|
$45.50 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP, PIVOT
61222-43400
|
$6.96 | ||
|
Available to order. Add to View Price |
|||
|
#12
TORQUE LINK, REAR (BLACK)
64310-08F00
|
$60.38 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FRONT (10X39)
09111-10051
|
$7.39 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, REAR (10X34)
09100-10187
|
$4.92 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
08319-31107
|
$3.38 | ||
|
Available to order. Add to View Price |
|||
|
#16
ADJUSTER, CHAIN
61410-08F00
|
$46.52 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE, ADJUSTER GUIDE
61420-08F00
|
$28.62 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
08319-31088
Superseded by 08319-3108A
|
$2.88 | ||
|
Available to order. Add to View Price |
|||
|
#19
CASE, CHAIN
61310-08F00
|
$102.36 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW
02142-06123
Superseded by 02142-0612A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER
09169-06026
|
$2.41 | ||
|
Available to order. Add to View Price |
|||
|
#22
GUARD, CHAIN
61390-08F00
|
$44.02 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
01547-06123
Superseded by 01547-0612B
|
$1.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
