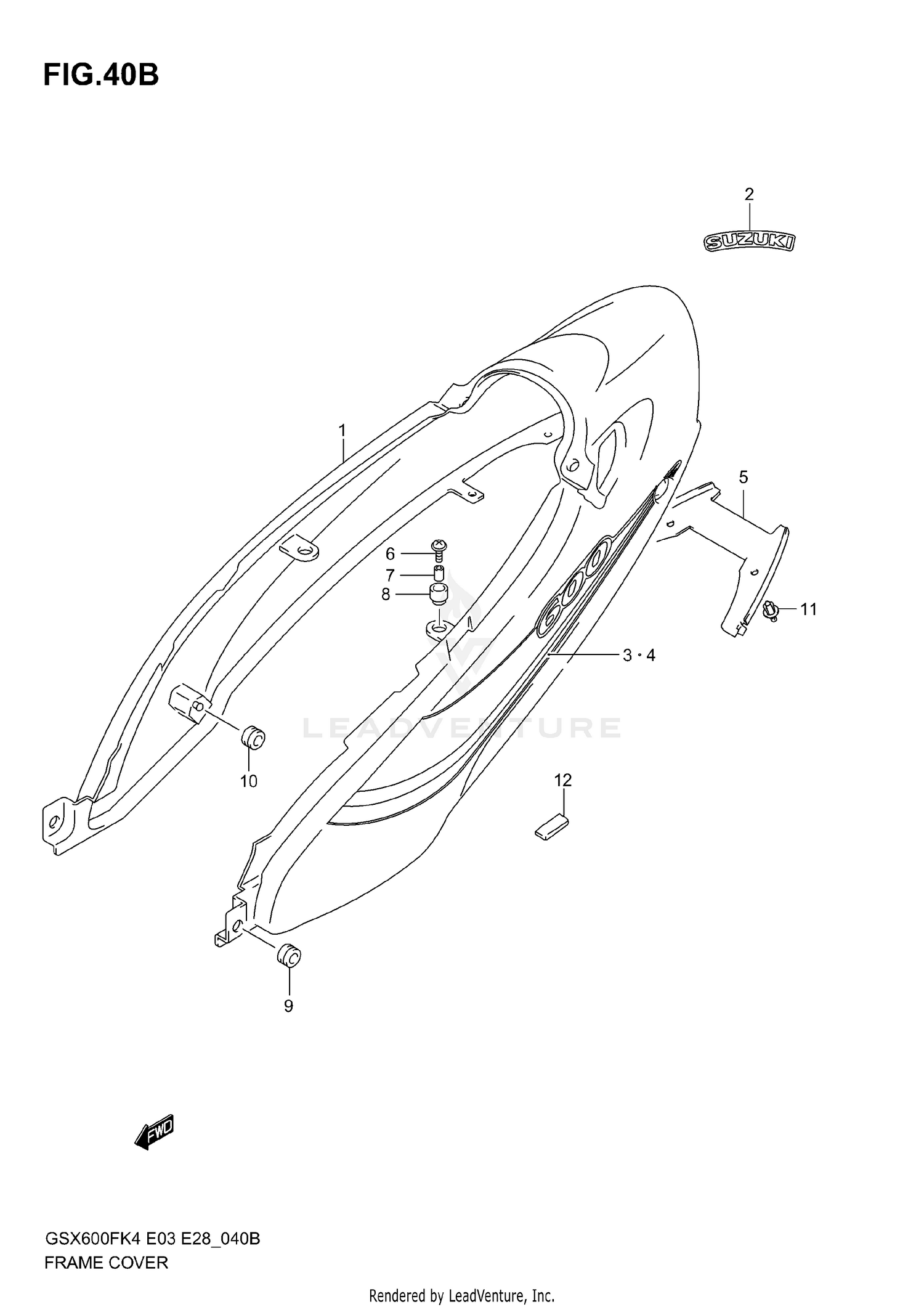

Frame Cover (model K6) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER,FRAME,R
47110-08FA0-019
Superseded by 47111-08FA0
|
$222.77 | ||
|
Available to order. Add to View Price |
|||
|
#1
COVER,FRAME,R
47110-08FA0-YBD
Superseded by 47111-08FA0
|
$222.77 | ||
|
Unavailable |
|||
|
#2
EMBLEM,FRAME CO
68131-39F00-YD8
Superseded by 68131-39F01-YD8
|
$9.69 | ||
|
Available to order. Add to View Price |
|||
|
#2
EMBLEM (BLACK)
68131-39F00-019
|
$12.27 | ||
|
Available to order. Add to View Price |
|||
|
#3
TAPE, FRAME COVER RH
68135-08F30-DBJ
|
$86.59 | ||
|
Unavailable |
|||
|
#3
TAPE, FRAME COVER RH
68135-08F30-DBK
|
$86.59 | ||
|
Available to order. Add to View Price |
|||
|
#4
TAPE, FRAME COVER LH
68145-08F30-DBJ
|
$84.85 | ||
|
Unavailable |
|||
|
#4
TAPE, FRAME COVER LH
68145-08F30-DBK
|
$80.81 | ||
|
Unavailable |
|||
|
#5
COVER, FRAME LOWER
47321-08FA0
|
$17.58 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, UPPER
09136-06105
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER
09180-06286
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
CUSHION
09320-10045
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#9
CUSHION
09320-08028
|
$3.81 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CUSHION
09320-08018
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLIP (7.6X25.7,BLACK)
09409-08308-5ES
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
CUSHION (10X30X2)
44894-24A00
|
$2.18 | ||
|
Available to order. Add to View Price |
|||
