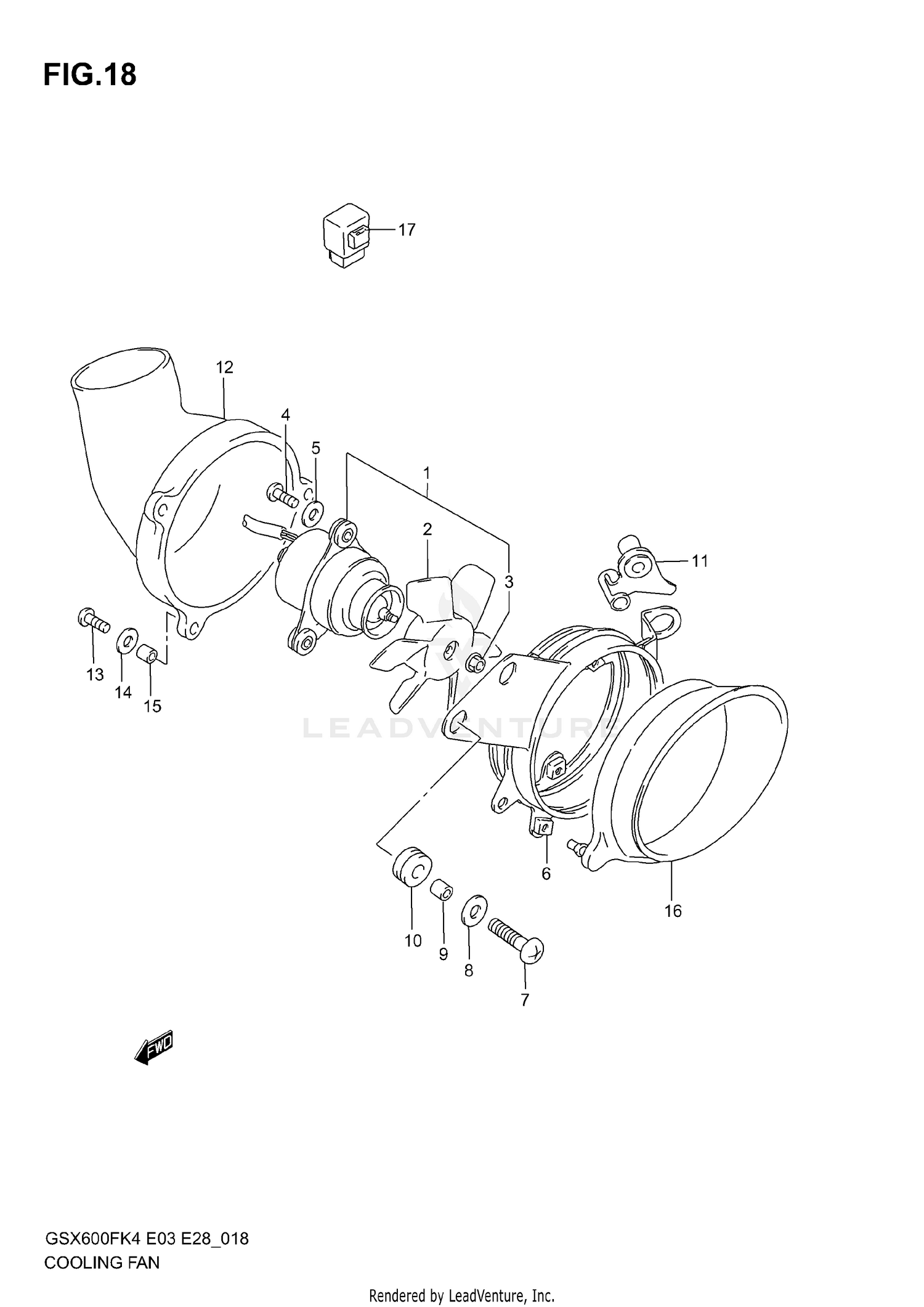

Cooling Fan (e33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FAN ASSY, COOLING
17100-48B00
|
$308.83 | ||
|
Available to order. Add to View Price |
|||
|
#2
FAN
17120-48B00
|
$37.05 | ||
|
Unavailable |
|||
|
#3
NUT
08316-10033
|
$1.67 | ||
|
Unavailable |
|||
|
#4
SCREW
02112-04163
Superseded by 02112-0416A
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER
09160-04022
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHROUD, FAN
17250-20C00
|
$32.97 | ||
|
Unavailable |
|||
|
#7
SCREW
02142-06203
Superseded by 02142-0620A
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER (6.5X18X1)
09160-06056
|
$2.09 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
SPACER
09180-06257
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#10
CUSHION
09320-09036
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, FAN SHROUD
17260-20C00
|
$10.35 | ||
|
Unavailable |
|||
|
#12
DUCT, FAN COOLING, NO.1
17271-20C00
|
$32.13 | ||
|
Unavailable |
|||
|
#13
SCREW
02112-04123
Superseded by 02112-0412A
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
09160-04022
|
$2.35 | ||
|
Unavailable |
|||
|
#15
SPACER
09180-04301
|
$2.77 | ||
|
Unavailable |
|||
|
#16
DUCT, FAN COOLING, NO.2
17272-08F00
|
$25.70 | ||
|
Unavailable |
|||
|
#17
CONTROLLER ASSY, FAN MOTOR
38870-48B00
|
$210.82 | ||
|
Available to order. Add to View Price |
|||
