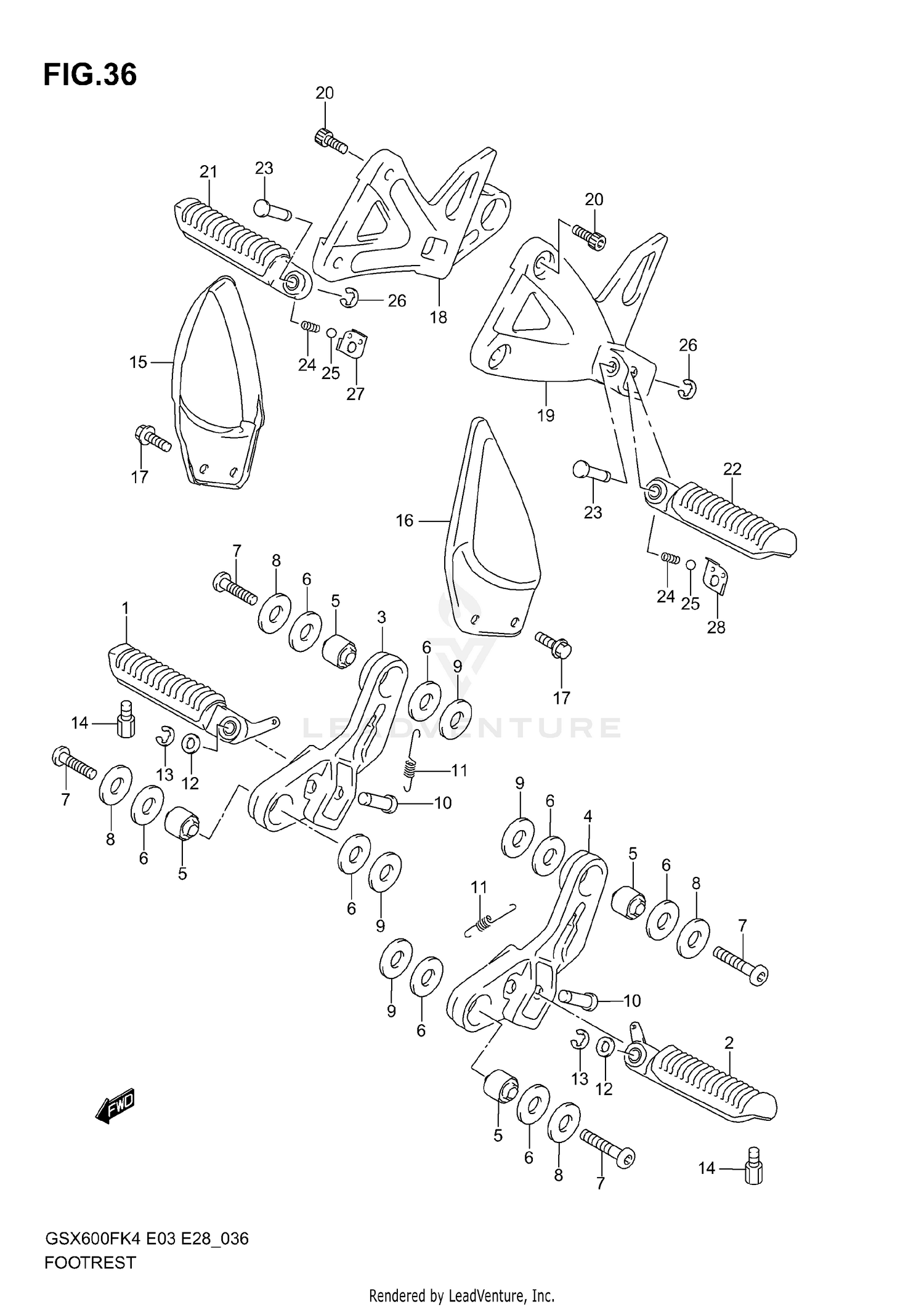

Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BAR,FR FOOTREST
43510-19C31
Superseded by 43510-19C22
|
$122.03 | ||
|
Available to order. Add to View Price |
|||
|
#2
BAR,FR FOOTREST
43520-19C31
Superseded by 43520-19C22
|
$124.32 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER, FRONT FOOTREST RH
43531-19C00
|
$86.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOLDER, FRONT FOOTREST LH
43541-19C00
|
$81.90 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH, HOLDER
09319-08033
|
$12.93 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, HOLDER
09161-12006
|
$2.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
09106-08137
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, MUFFLER SUPPORT
09160-08138
Superseded by 09160-08503
|
$3.17 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, INNER
09160-08503
|
$3.17 | ||
|
Unavailable |
|||
|
#10
PIN
09208-08010
|
$3.53 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
SPRING
09443-08049
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER,LOCK
08322-01083
Superseded by 08322-0108A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
E-RING
08332-11063
Superseded by 08332-1106A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, BANK SENSOR
43576-48B20
|
$16.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
GUARD, FRONT FOOTREST RH
43571-08F00
|
$31.99 | ||
|
Unavailable |
|||
|
#16
GUARD, FRONT FOOTREST LH
43581-08F00
|
$31.99 | ||
|
Unavailable |
|||
|
#17
BOLT
09106-08128
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRACKET, PILLION RH
43811-08F10
|
$104.56 | ||
|
Available to order. Add to View Price |
|||
|
#19
BRACKET, PILLION LH
43821-08F10
|
$97.00 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, BRACKET
09106-08150
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAR, PILLION FOOTREST RH
43610-08F00
|
$110.05 | ||
|
Available to order. Add to View Price |
|||
|
#22
BAR, PILLION FOOTREST LH
43710-08F00
|
$110.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN
09208-08011
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPRING
09440-05005
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#25
BALL
06111-07004
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#26
E-RING
08332-11063
Superseded by 08332-1106A
|
$1.78 | ||
|
Unavailable |
|||
|
#27
PLATE, PILLION RH
43816-23E00
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLATE, PILLION LH
43826-23E00
|
$7.58 | ||
|
Available to order. Add to View Price |
|||
