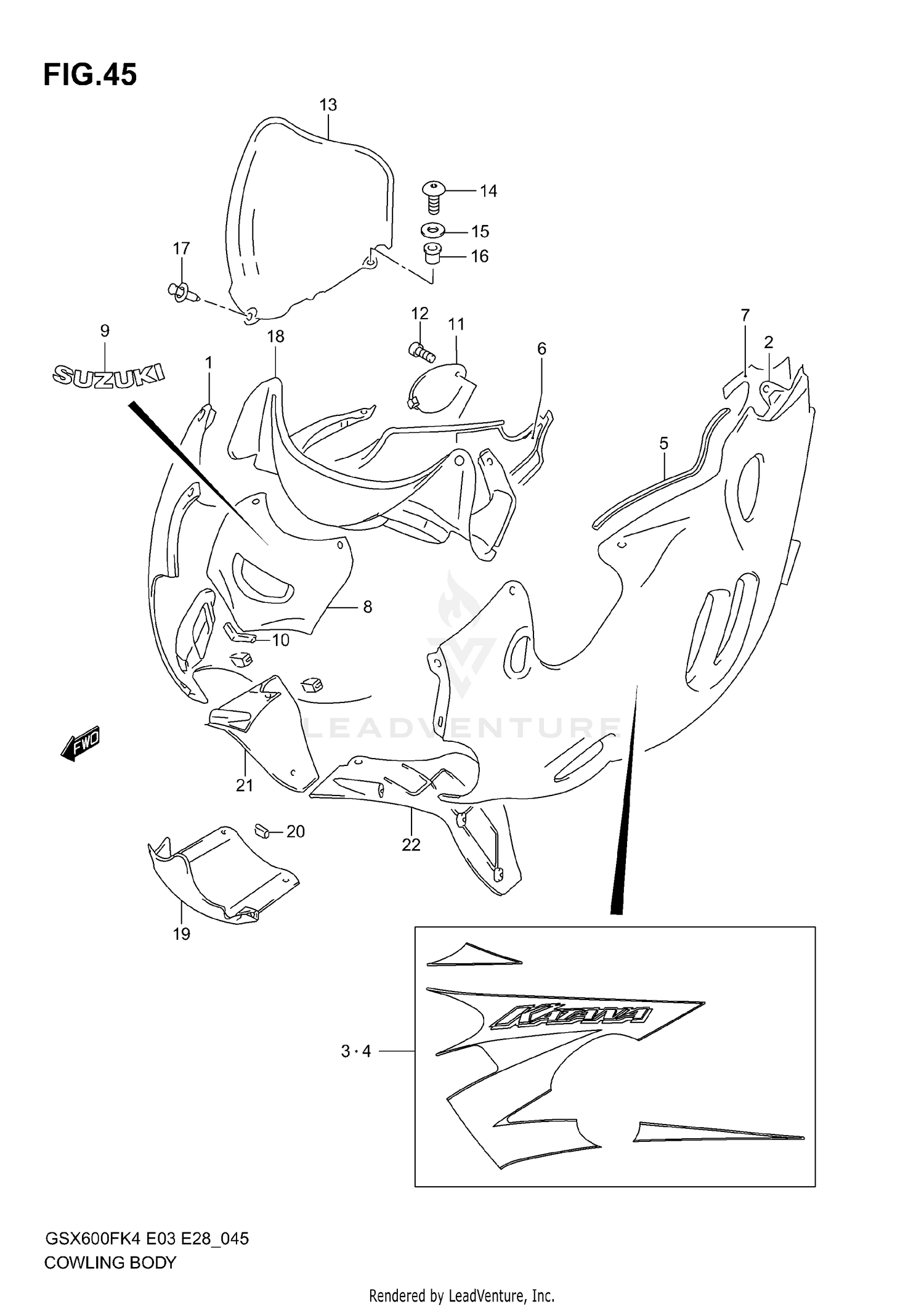

Cowling Body (model K4) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COWL ASSY, SIDE RH (YELLOW)
94503-08F00-YU9
|
$713.64 | ||
|
Unavailable |
|||
|
#1
COWL ASSY, SIDE RH (BLUE)
94503-08F00-YC2
|
$764.75 | ||
|
Available to order. Add to View Price |
|||
|
#2
COWL ASSY, SIDE LH (YELLOW)
94504-08F00-YU9
|
$749.45 | ||
|
Unavailable |
|||
|
#2
COWL ASSY, SIDE LH (BLUE)
94504-08F00-YC2
|
$713.64 | ||
|
Available to order. Add to View Price |
|||
|
#2
COWL ASSY, SIDE LH (YELLOW)
94504-08F10-YU9
|
$764.75 | ||
|
Unavailable |
|||
|
#2
COWL ASSY, SIDE LH (BLUE)
94504-08F10-YC2
|
$713.64 | ||
|
Unavailable |
|||
|
#3
TAPE, LOWER RH
68680-08F30-YGJ
|
$192.34 | ||
|
Available to order. Add to View Price |
|||
|
#3
TAPE, LOWER RH
68680-08F30-YGK
|
$161.38 | ||
|
Unavailable |
|||
|
#4
TAPE, LOWER LH
68690-08F30-YGJ
|
$172.91 | ||
|
Unavailable |
|||
|
#4
TAPE, LOWER LH
68690-08F30-YGK
|
$172.91 | ||
|
Unavailable |
|||
|
#4
TAPE, LOWER LH
68690-08F40-YGJ
|
$172.91 | ||
|
Unavailable |
|||
|
#4
TAPE, LOWER LH
68690-08F40-YGK
|
$172.91 | ||
|
Unavailable |
|||
|
#5
MOLDING
94631-44110
|
$41.59 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIELD, HEAT RH
94439-08F00
|
$67.32 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHIELD, HEAT LH
94449-08F00
|
$92.42 | ||
|
Available to order. Add to View Price |
|||
|
#8
PANEL, CENTER UPPER (YELLOW)
94410-08F00-YU9
|
$81.35 | ||
|
Unavailable |
|||
|
#8
PANEL,COWLING C
94410-08F00-YEX
Superseded by 94411-08F00
|
$37.46 | ||
|
Available to order. Add to View Price |
|||
|
#9
TAPE, UPPER PANEL (BLACK)
68185-05C10-019
|
$16.24 | ||
|
Available to order. Add to View Price |
|||
|
#9
TAPE, UPPER PANEL (WHITE)
68185-05C10-YBD
|
$13.84 | ||
|
Unavailable |
|||
|
#10
CUSHION
94413-08F00
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#11
LID,OIL
94435-08F00-YU9
Superseded by 94435-08F00
|
$38.77 | ||
|
Available to order. Add to View Price |
|||
|
#11
LID, OIL (BLUE)
94435-08F00-YC2
|
$45.39 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW
09139-06030
|
$4.64 | ||
|
Available to order. Add to View Price |
|||
|
#13
WIND SCREEN
94611-08F00
|
$303.91 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW (5X14)
09139-05025
|
$2.21 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER
08322-01053
Superseded by 08322-0105A
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT
09159-05019
|
$8.95 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#17
CLIP (7.6X25.7,BLACK)
09409-08308-5ES
|
$2.45 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#18
PANEL, METER
94421-08F00
|
$169.98 | ||
|
Available to order. Add to View Price |
|||
|
#19
PANEL, CENTER LOWER (YELLOW)
94412-08F00-YU9
|
$71.55 | ||
|
Unavailable |
|||
|
#19
PANEL, CENTER LOWER (BLUE)
94412-08F00-YC2
|
$50.73 | ||
|
Available to order. Add to View Price |
|||
|
#20
CUSHION, UPPER
94414-08F00
Superseded by 94413-08F00
|
$5.02 | ||
|
Unavailable |
|||
|
#21
PANEL, INNER RH
94461-08F10
|
$86.03 | ||
|
Available to order. Add to View Price |
|||
|
#22
PANEL, INNER LH
94462-08F10
|
$109.66 | ||
|
Available to order. Add to View Price |
|||
