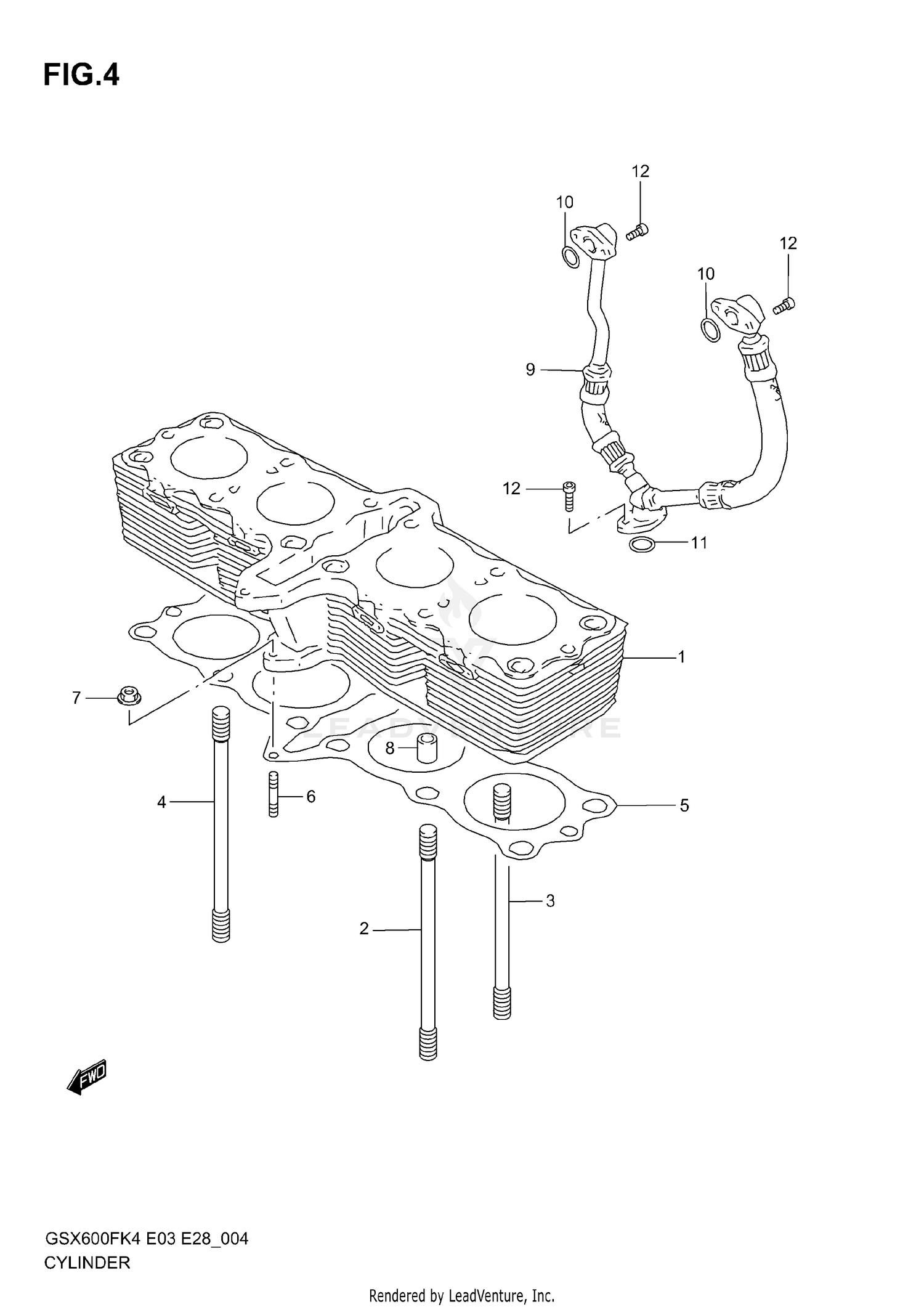

2004 Suzuki KATANA 600 CYLINDER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER
11210-26E00-0F0
|
$978.50 | ||
|
Unavailable |
|||
|
#1
CYLINDER
11210-26E10-0F0
|
$1,164.14 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#2
STUD BOLT (10X150)
09108-10144
|
$11.04 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
STUD BOLT (10X143)
09108-10073
|
$9.56 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
STUD BOLT (10X150)
09108-10144
|
$11.04 | ||
|
Unavailable |
|||
|
#5
GASKET, CYLINDER
11241-27A04
|
$17.27 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
BOLT,STUD
01421-06203
Superseded by 01421-0620A
|
$1.81 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
NUT
08316-10063
Superseded by 08316-1006B
|
$2.38 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#8
PIN
09206-13017
|
$7.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#9
HOSE, OIL HEAD COOLER
11328-27A04
|
$224.82 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
O RING (D:2.5,ID:13.8)
09280-14011
|
$4.58 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
O RING (D:2.4,ID:15.8)
09280-15007
|
$1.63 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
BOLT
07130-06163
Superseded by 07130-0616A
|
$1.94 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
