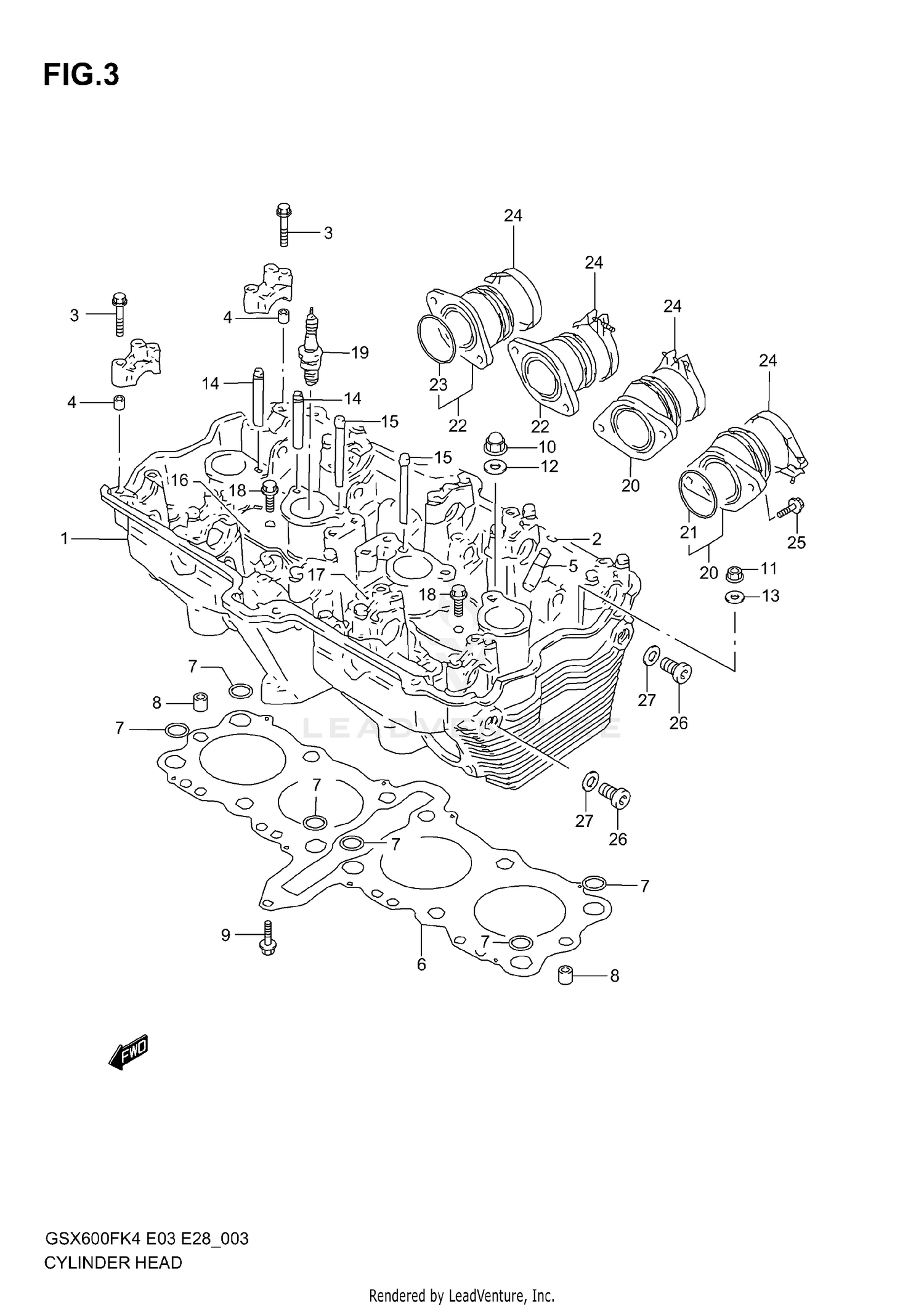

2004 Suzuki KATANA 600 CYLINDER HEAD OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY, CYLINDER
11100-26E00
|
$1,047.27 | ||
|
Unavailable |
|||
|
#1
HEAD ASSY, CYLINDER
11100-26E10
|
$1,427.27 | ||
|
Unavailable |
|||
|
#2
.SNAP RING (10X85)
09381-10004
|
$1.21 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#3
BOLT (6X39)
09103-06026
|
$1.61 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#4
.PIN (8X11)
09206-08001
|
$1.68 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#5
GUIDE, VALVE (OS:0.3)
11116-06B70
|
$34.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#6
GASKET, CYLINDER HEAD
11141-19C03
|
$72.91 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#7
O RING (D:2.6,ID:12.1)
09280-12013
|
$5.33 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#8
.PIN
04211-11169
|
$1.68 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#9
BOLT (L:30)
01550-06303
Superseded by 01550-0630A
|
$2.20 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#10
NUT
09159-10054
|
$6.38 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#11
NUT
08316-10103
Superseded by 08316-1010B
|
$2.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#12
GASKET (10.2X20X2.3)
09168-10031
|
$1.93 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#13
WASHER (10.5X22X2.3)
09160-10060
|
$1.02 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#14
PIPE, OIL NO.1, 2
11131-27A00
|
$5.41 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#15
PIPE, OIL NO.3
11133-27A00
|
$6.22 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#16
PLATE, OIL PIPE RH
11135-27A02
|
$2.87 | ||
|
Unavailable |
|||
|
#17
PLATE, OIL PIPE LH
11136-27A02
|
$2.87 | ||
|
Unavailable |
|||
|
#18
BOLT, CLAMP
01550-06123
Superseded by 01550-0612A
|
$1.87 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
PLUG,SPARK (CR9EK)
09482-00410
|
$12.53 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
PLUG,SPARK (U27ETR)
09482-00411
|
$11.37 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
PLUG,SPARK (CR8EK)
09482-00412
|
$11.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
PLUG,SPARK (U24ETR)
09482-00413
|
$14.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
SPARK PLUG (NGK,CR10EK)
09482-00462
|
$12.47 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#19
SPARK PLUG (DENSO,U31ETR)
09482-00463
|
$14.16 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#20
PIPE ASSY,INTAK
13101-19E00
Superseded by 13101-19E01
|
$34.45 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#21
O-RING (D:2.4,ID:39.7)
09280-40010
Superseded by 09280-40020
|
$2.76 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#22
PIPE ASSY,INTAK
13103-19E00
Superseded by 13103-19E01
|
$34.45 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#23
O-RING (D:2.4,ID:39.7)
09280-40010
Superseded by 09280-40020
|
$2.76 | ||
|
Unavailable |
|||
|
#24
CLAMP
09402-48208
|
$4.46 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#25
BOLT, EXHAUST COVER
07120-06163
Superseded by 07120-0616B
|
$2.32 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
PLUG (L:12)
09248-14010
|
$5.27 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#26
PLUG, SHAFT
09248-14012
Superseded by 09248-14011
|
$2.85 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
|
#27
GASKET (13.8X18.8X4.8)
09168-14002
|
$2.17 | ||
|
Available: Ships in 7-12 days. Add to View Price |
|||
