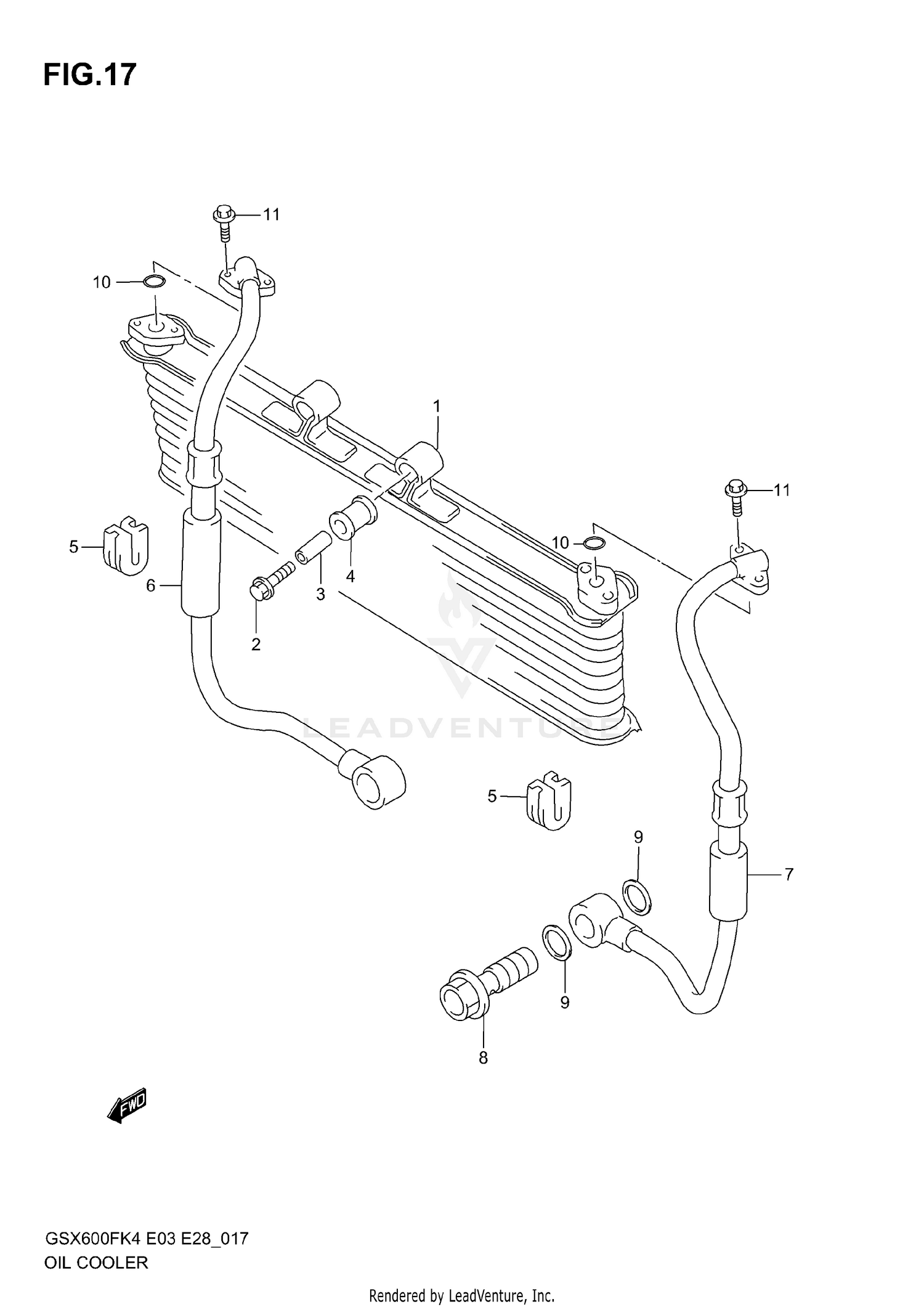

Oil Cooler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COOLER ASSY, OIL
16600-08F00
|
$890.23 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT (8X40)
09118-08131
|
$3.31 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPACER
09180-08304
|
$7.14 | ||
|
Available to order. Add to View Price |
|||
|
#4
CUSHION, NO.1
16629-27A01
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#5
CUSHION,OIL COOLER,NO.2
16628-27A00
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE, OIL COOLER, RH
16460-08F10
|
$198.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE, OIL COOLER, LH
16470-08F10
|
$198.13 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, UNION (16X32)
09360-16002
|
$17.71 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET
09168-16002
|
$2.30 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
O-RING (D:2.4,ID:11.8)
09280-12012
|
$5.66 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#11
BOLT
07130-06163
Superseded by 07130-0616B
|
$2.87 | ||
|
Available to order. Add to View Price |
|||
