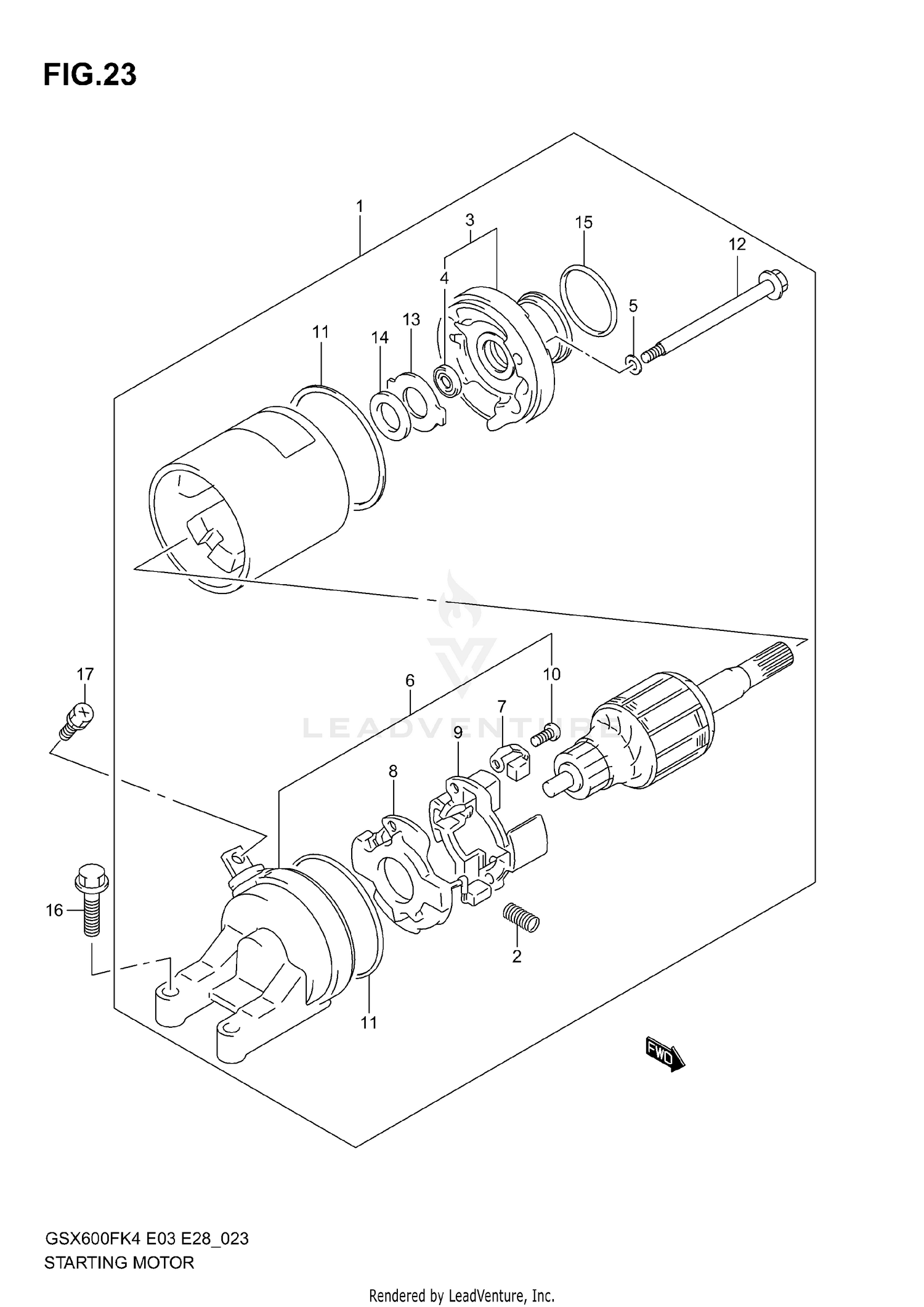

Starting Motor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MOTOR ASSY, STARTING
31100-08F00
|
$641.22 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING
31135-32C10
|
$5.35 | ||
|
Available to order. Add to View Price |
|||
|
#3
BRACKET
31150-08F00
|
$82.34 | ||
|
Unavailable |
|||
|
#4
..OIL SEAL
31153-49210
|
$27.32 | ||
|
Available to order. Add to View Price |
|||
|
#5
O RING
31156-08F00
|
$5.11 | ||
|
Available to order. Add to View Price |
|||
|
#6
FRAME ASSY, COMMUTATOR
31175-08F00
|
$70.32 | ||
|
Unavailable |
|||
|
#7
BRUSH
31132-32C10
|
$24.57 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRUSH SUB ASSY
31130-32C20
|
$41.97 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOLDER, BRUSH
31133-32C10
|
$13.40 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW
02112-34123
Superseded by 02112-3412B
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#11
.O-RING
31264-32C10
|
$16.03 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
31281-32C10
|
$12.32 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, LOCK
31361-32C10
|
$2.41 | ||
|
Unavailable |
|||
|
#14
SHIM, NO.3
31361-38300
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#15
.O RING (D:3,ID:24.5)
09280-24003
|
$1.94 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, STARTING MOTOR
09128-06024
Superseded by 09103-06212
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, MOT LEAD (5X8)
09137-05004
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
