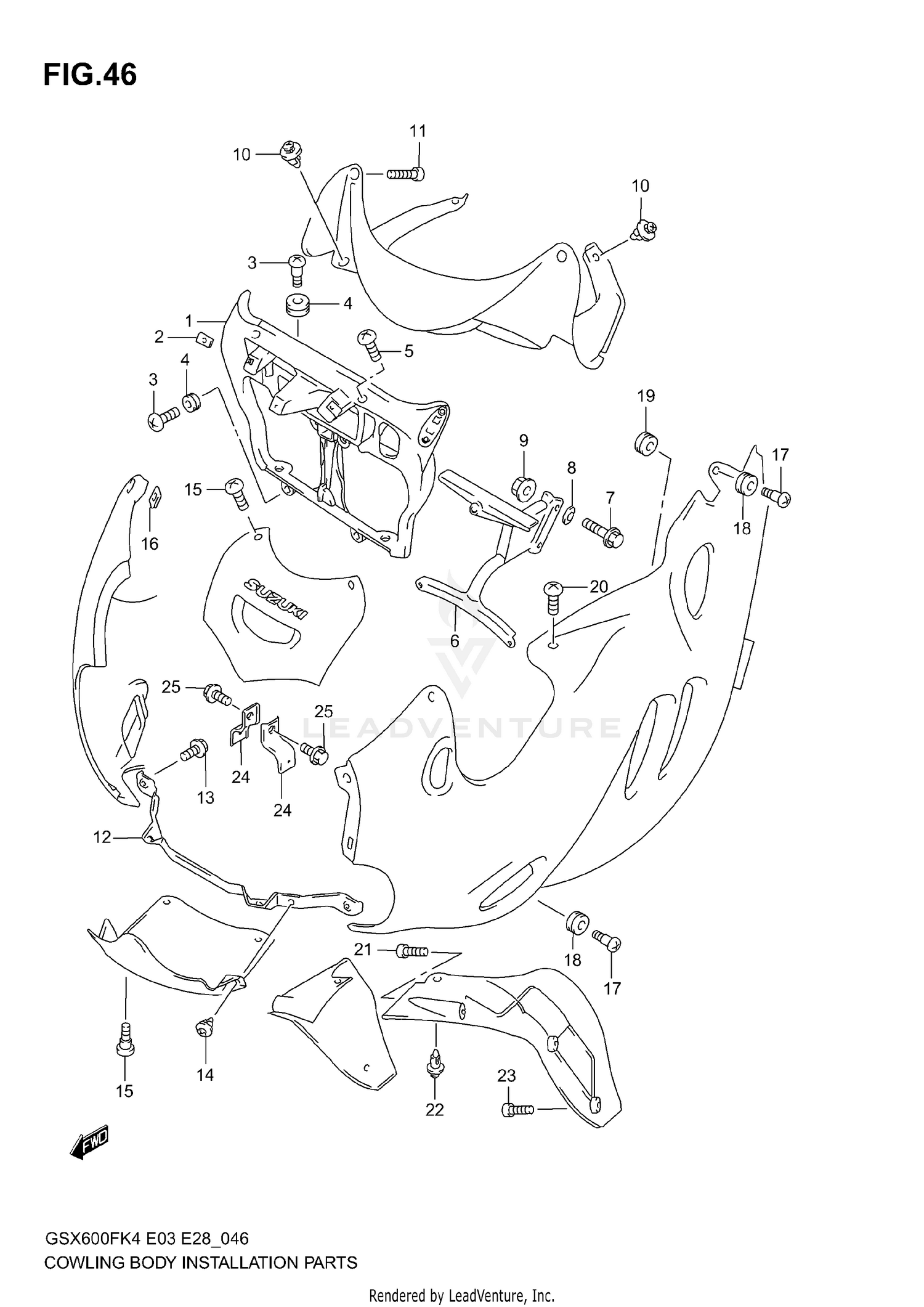

Cowling Body Installation Parts Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACE, COWLING FRONT
94520-08F00
|
$338.48 | ||
|
Available to order. Add to View Price |
|||
|
#2
NUT,COWL
94484-24F00
|
$5.12 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW
09139-06126
|
$5.06 | ||
|
Available to order. Add to View Price |
|||
|
#4
CUSHION
09320-09016
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW
02142-05163
Superseded by 02142-0516A
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACE, COWLING REAR
94510-08F10
|
$130.37 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT
09103-08222
|
$3.11 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER
09164-08020
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#9
.NUT
08316-10083
Superseded by 08316-1008B
|
$3.31 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#10
CLIP (7.6X25.7,BLACK)
09409-08308-5ES
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW
03541-05163
Superseded by 03541-0516A
|
$1.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET, CENTER LOWER
94540-08F00
|
$21.56 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
01580-06163
Superseded by 01580-0616A
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP (BLACK)
09409-06322-5PK
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, CENTER PANEL
09139-05042
|
$3.17 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#16
NUT, METER PANEL UPPER
09148-05038
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, SIDE COWLING
09139-06126
|
$5.06 | ||
|
Unavailable |
|||
|
#18
CUSHION
09320-09016
|
$2.45 | ||
|
Unavailable |
|||
|
#19
CUSHION
09320-08018
|
$3.81 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, METER PANEL REAR
09139-05054
|
$5.31 | ||
|
In Stock: Ready to ship. Add to View Price |
|||
|
#21
SCREW, INNER PANEL UPPER
09136-04003
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLIP (7.6X25.7,BLACK)
09409-08308-5ES
|
$2.45 | ||
|
Unavailable |
|||
|
#23
SCREW
02142-15163
Superseded by 02142-1516A
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRACKET, SIDE LOWER
94530-08F00
|
$7.28 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
09116-06109
|
$3.27 | ||
|
Available to order. Add to View Price |
|||
