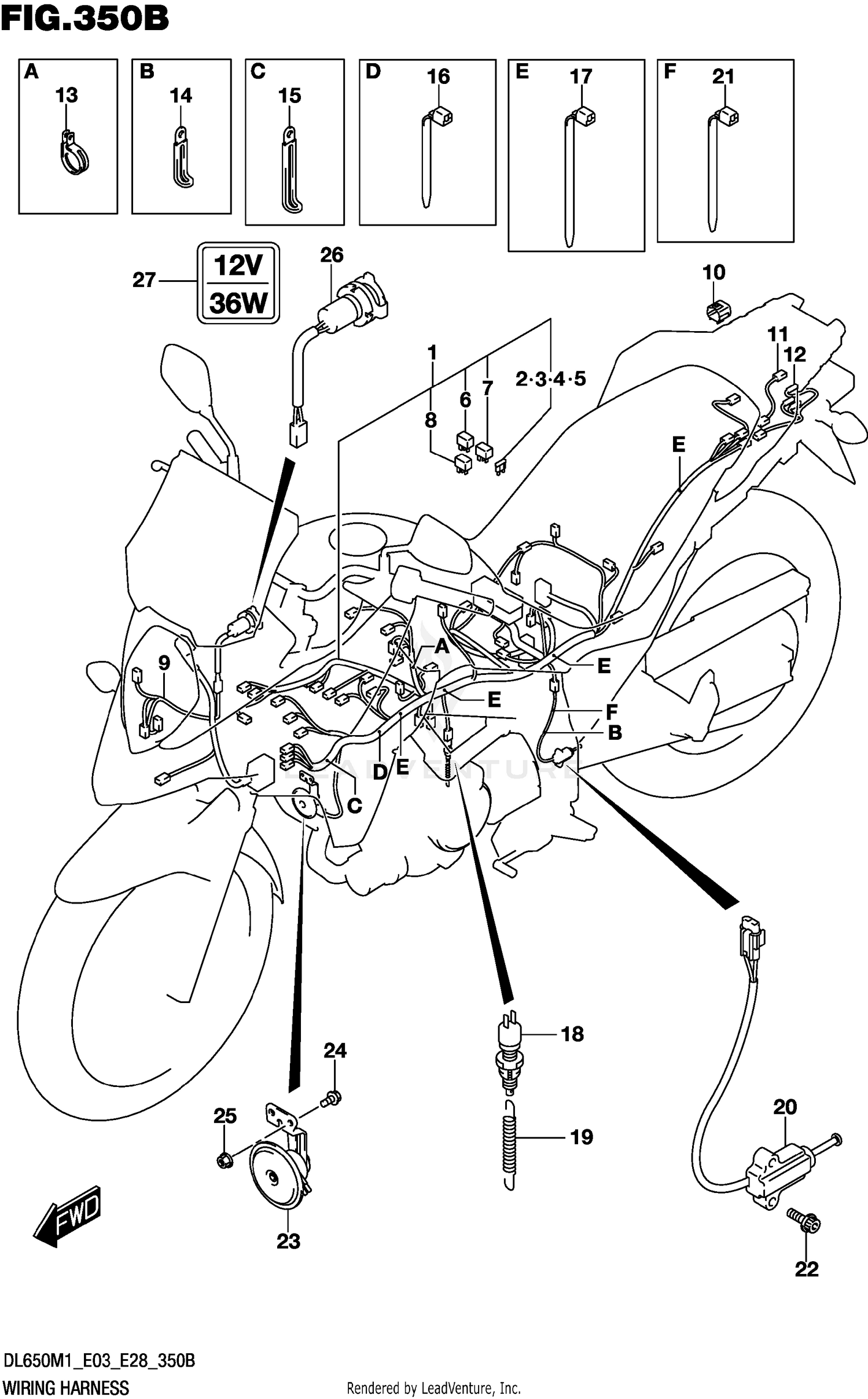

Wiring Harness (e03,e28) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS,WIRING NO.1
36610-28K10-000
|
|||
|
Unavailable |
|||
|
#2
.FUSE (3A)
09481-03501-000
|
|||
|
Unavailable |
|||
|
#3
.FUSE (10A)
09481-10504-000
|
|||
|
Unavailable |
|||
|
#4
.FUSE (15A)
09481-15504-000
|
|||
|
Unavailable |
|||
|
#5
.FUSE (25A)
09481-25504-000
|
|||
|
Unavailable |
|||
|
#6
.RELAY ASSY
38860-76F01-000
|
|||
|
Unavailable |
|||
|
#7
.RELAY ASSY
38860-76F01-000
|
|||
|
Unavailable |
|||
|
#8
.RELAY ASSY
38860-76F01-000
|
|||
|
Unavailable |
|||
|
#9
HARNESS,WIRING NO.2
36620-28K00-000
|
|||
|
Unavailable |
|||
|
#10
CAP,TS
36654-06J01-000
|
|||
|
Unavailable |
|||
|
#11
WIRE,REAR COMB LEAD
36853-28K00-000
|
|||
|
Unavailable |
|||
|
#12
WIRE,REAR TURNSIGNAL LEAD
36856-28K00-000
|
|||
|
Unavailable |
|||
|
#13
CLAMP
09403-26402-000
|
|||
|
Unavailable |
|||
|
#14
CLAMP (L:45)
09404-06429-000
|
|||
|
Unavailable |
|||
|
#15
CLAMP (L:80)
09404-06030-000
|
|||
|
Unavailable |
|||
|
#16
CLAMP (L:125)
09407-14403-000
|
|||
|
Unavailable |
|||
|
#17
CLAMP (L:165)
09407-18402-000
|
|||
|
Unavailable |
|||
|
#18
SWITCH ASSY,STOP LAMP
37740-31D00-000
|
|||
|
Unavailable |
|||
|
#19
SPRING
09443-06012-000
|
|||
|
Unavailable |
|||
|
#20
SWITCH ASSY,SIDE STAND
37840-06G01-000
|
|||
|
Unavailable |
|||
|
#21
CLAMP (L:100)
09407-10404-000
|
|||
|
Unavailable |
|||
|
#22
BOLT
01550-0616A-000
|
|||
|
Unavailable |
|||
|
#23
HORN ASSY
38500-11J00-000
|
|||
|
Unavailable |
|||
|
#24
BOLT (6X16)
09118-06017-000
|
|||
|
Unavailable |
|||
|
#25
NUT (6X12)
08316-1006A-000
|
|||
|
Unavailable |
|||
|
#26
TERMINAL,POWER SOURCE
38850-31J00-000
|
|||
|
Unavailable |
|||
|
#27
LABEL,MAX AMP
38852-28K01-000
|
|||
|
Unavailable |
|||
