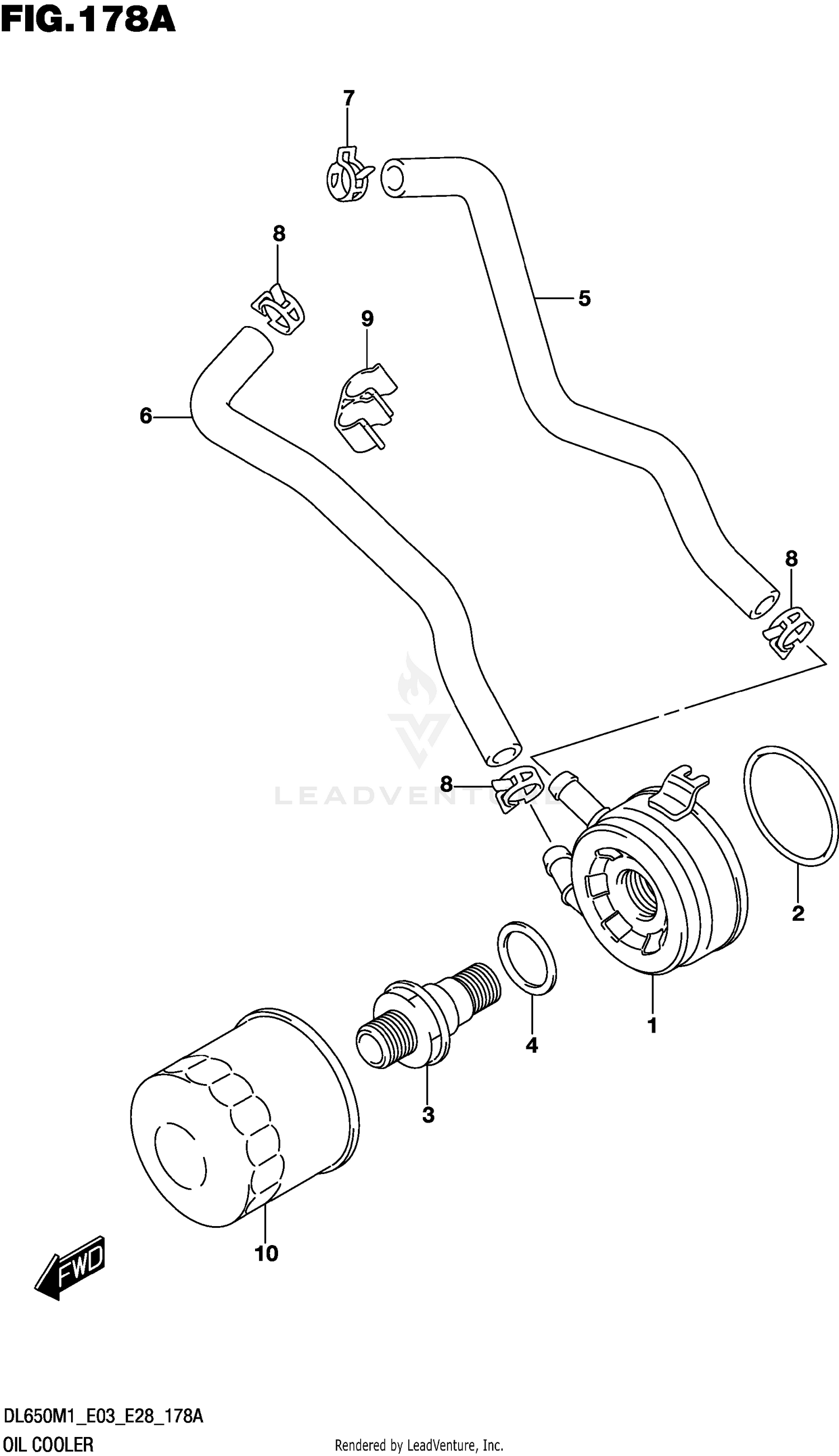

Oil Cooler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COOLER ASSY,OIL
16600-44H00-000
|
|||
|
Unavailable |
|||
|
#2
O RING (D:3.1,ID:54.5)
09280-55002-000
|
|||
|
Unavailable |
|||
|
#3
BOLT,OIL COOLER UNION
16591-02F00-000
|
|||
|
Unavailable |
|||
|
#4
SHIM (25X34X0.7)
09181-25160-000
|
|||
|
Unavailable |
|||
|
#5
HOSE,OIL COOLER IN
16461-44H00-000
|
|||
|
Unavailable |
|||
|
#6
HOSE,OIL COOLER OUT
16471-44H00-000
|
|||
|
Unavailable |
|||
|
#7
CLIP (ID:16.5)
09401-16407-000
|
|||
|
Unavailable |
|||
|
#8
CLIP
09401-16409-000
|
|||
|
Unavailable |
|||
|
#9
CLAMP
09408-00267-000
|
|||
|
Unavailable |
|||
|
#10
FILTER ASSY,ENGINE OIL (P1.0)
16510-07J00-000
|
|||
|
Unavailable |
|||
