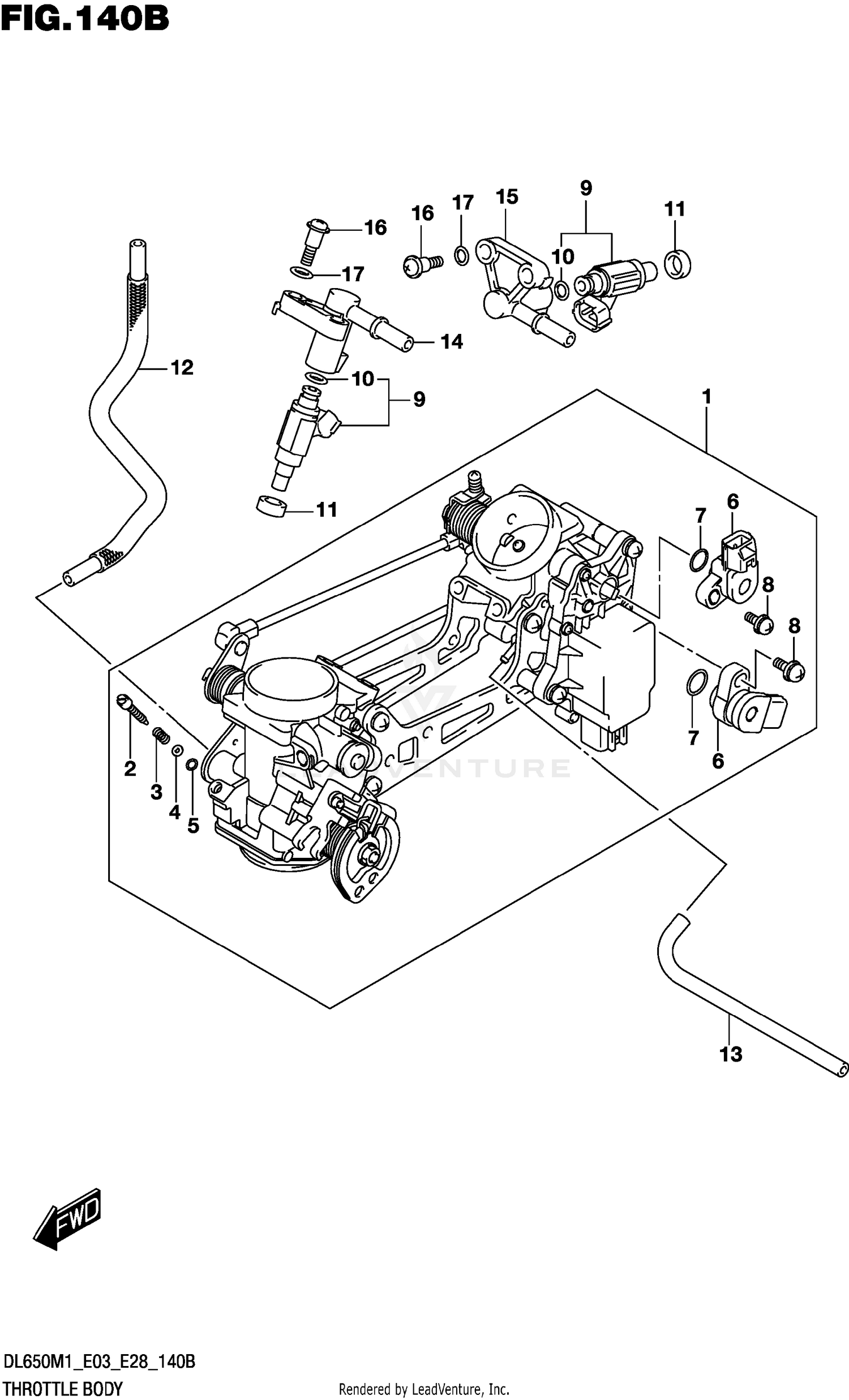

Throttle Body ((e03,e28)) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY ASSY,THROTTLE
13405-28K00-000
|
|||
|
Unavailable |
|||
|
#2
.SCREW
13269-33E00-000
|
|||
|
Unavailable |
|||
|
#3
.SPRING,THROTTLE SCREW
13268-48700-000
|
|||
|
Unavailable |
|||
|
#4
.WASHER
13606-47A00-000
|
|||
|
Unavailable |
|||
|
#5
.O RING
13295-29901-000
|
|||
|
Unavailable |
|||
|
#6
.SENSOR
13580-27G21-000
|
|||
|
Unavailable |
|||
|
#7
.O RING
13575-29G01-000
|
|||
|
Unavailable |
|||
|
#8
.SCREW
13605-02F00-000
|
|||
|
Unavailable |
|||
|
#9
INJECTOR ASSY
15710-11J00-000
|
|||
|
Unavailable |
|||
|
#10
.O-RING
15717-58B00-000
|
|||
|
Unavailable |
|||
|
#11
SEAL
15722-29G00-000
|
|||
|
Unavailable |
|||
|
#12
HOSE
13683-28K01-000
|
|||
|
Unavailable |
|||
|
#13
HOSE
13683-44H11-000
|
|||
|
Unavailable |
|||
|
#14
DELIVERY PIPE
15731-11J00-000
|
|||
|
Unavailable |
|||
|
#15
DELIVERY PIPE
15732-11J00-000
|
|||
|
Unavailable |
|||
|
#16
SCREW,DELIVERY PIPE
13601-11J00-000
|
|||
|
Unavailable |
|||
|
#17
PACKING
13602-29G01-000
|
|||
|
Unavailable |
|||
