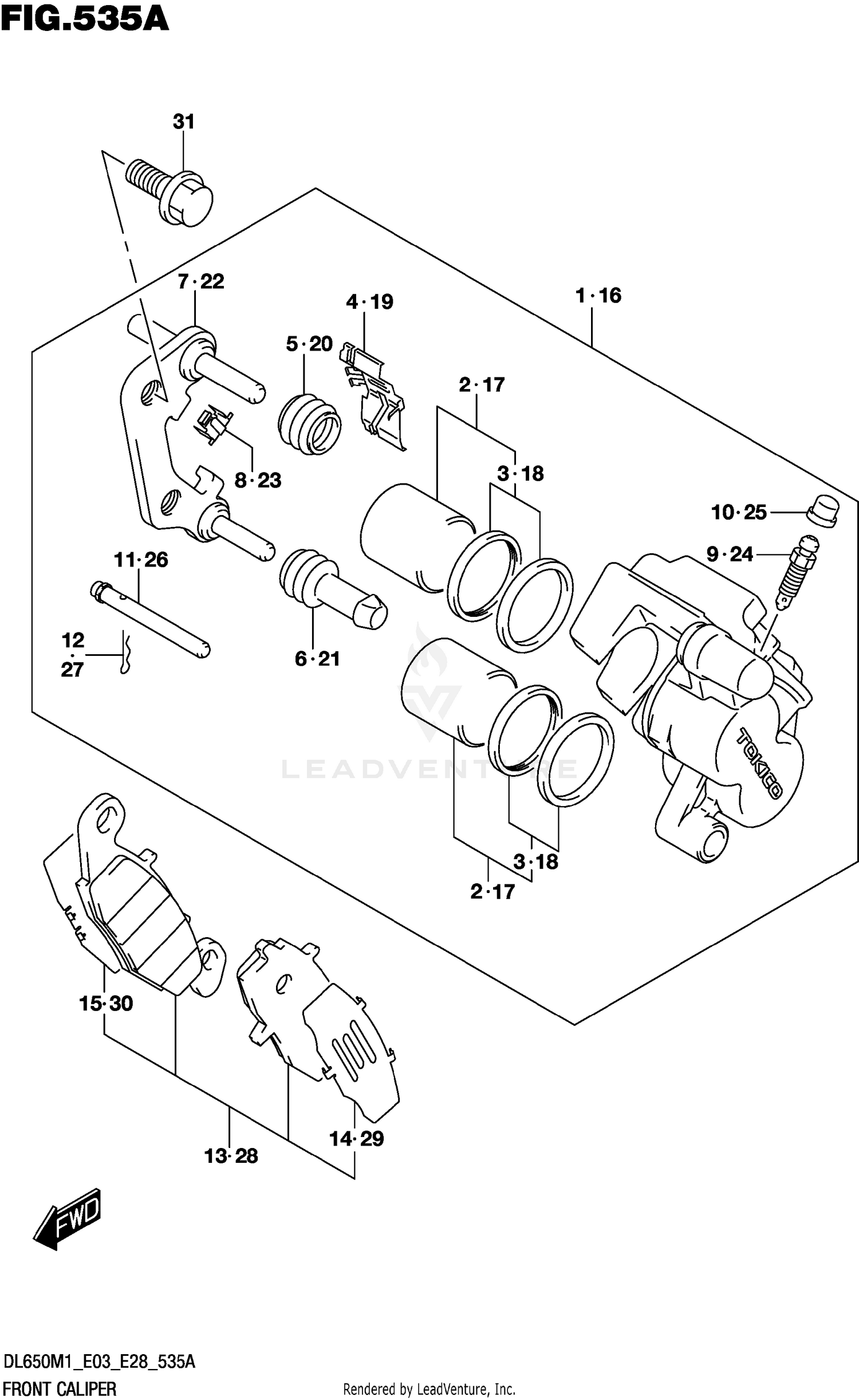

Front Caliper Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CALIPER ASSY,FR RH
59100-33DQ0-999
|
$442.66 | ||
|
Available to order. Add to View Price |
|||
|
#2
.PISTON SET
59300-01820-000
|
|||
|
Unavailable |
|||
|
#3
..SEAL SET,PISTON
59100-04851-000
|
|||
|
Unavailable |
|||
|
#4
.SPRING,PAD,R
59115-33D00-000
|
|||
|
Unavailable |
|||
|
#5
.BOOT,AXLE
59112-44B00-000
|
|||
|
Unavailable |
|||
|
#6
.INSULATOR,AXLE
59313-36500-000
|
|||
|
Unavailable |
|||
|
#7
.CARRIER,CALIPER,R
59150-33D01-000
|
|||
|
Unavailable |
|||
|
#8
.GUIDE,PAD
59116-33D00-000
|
|||
|
Unavailable |
|||
|
#9
.BLEEDER
59121-18410-000
|
|||
|
Unavailable |
|||
|
#10
.CAP,BLEEDER PLUG (M10X1)
55156-66310-000
|
|||
|
Unavailable |
|||
|
#11
.PIN,PAD
59141-44B01-000
|
|||
|
Unavailable |
|||
|
#12
.CLIP,PAD PIN
69142-45000-000
|
|||
|
Unavailable |
|||
|
#13
PAD & SHIM SET RH
59102-33870-000
|
|||
|
Unavailable |
|||
|
#14
.SHIM,PAD
59171-33D00-000
|
|||
|
Unavailable |
|||
|
#15
.SHIM,PAD NO.2
59172-33D00-000
|
|||
|
Unavailable |
|||
|
#16
CALIPER ASSY,FR LH
59300-33DQ0-999
|
$442.66 | ||
|
Available to order. Add to View Price |
|||
|
#17
.PISTON SET
59300-01820-000
|
|||
|
Unavailable |
|||
|
#18
..SEAL SET,PISTON
59100-04851-000
|
|||
|
Unavailable |
|||
|
#19
.SPRING,PAD LH
59315-33D00-000
|
|||
|
Unavailable |
|||
|
#20
.BOOT,AXLE
59112-44B00-000
|
|||
|
Unavailable |
|||
|
#21
.INSULATOR,AXLE
59313-36500-000
|
|||
|
Unavailable |
|||
|
#22
.CARRIER,CALIPER LH
59350-33D01-000
|
|||
|
Unavailable |
|||
|
#23
.GUIDE,PAD
59116-33D00-000
|
|||
|
Unavailable |
|||
|
#24
.BLEEDER
59121-18410-000
|
|||
|
Unavailable |
|||
|
#25
.CAP,BLEEDER PLUG (M10X1)
55156-66310-000
|
|||
|
Unavailable |
|||
|
#26
.PIN,PAD
59141-44B01-000
|
|||
|
Unavailable |
|||
|
#27
.CLIP,PAD PIN
69142-45000-000
|
|||
|
Unavailable |
|||
|
#28
PAD & SHIM SET LH
59302-33850-000
|
|||
|
Unavailable |
|||
|
#29
.SHIM,PAD
59171-33D00-000
|
|||
|
Unavailable |
|||
|
#30
.SHIM,PAD NO.2
59172-33D00-000
|
|||
|
Unavailable |
|||
|
#31
BOLT
01550-1025A-000
|
|||
|
Unavailable |
|||
