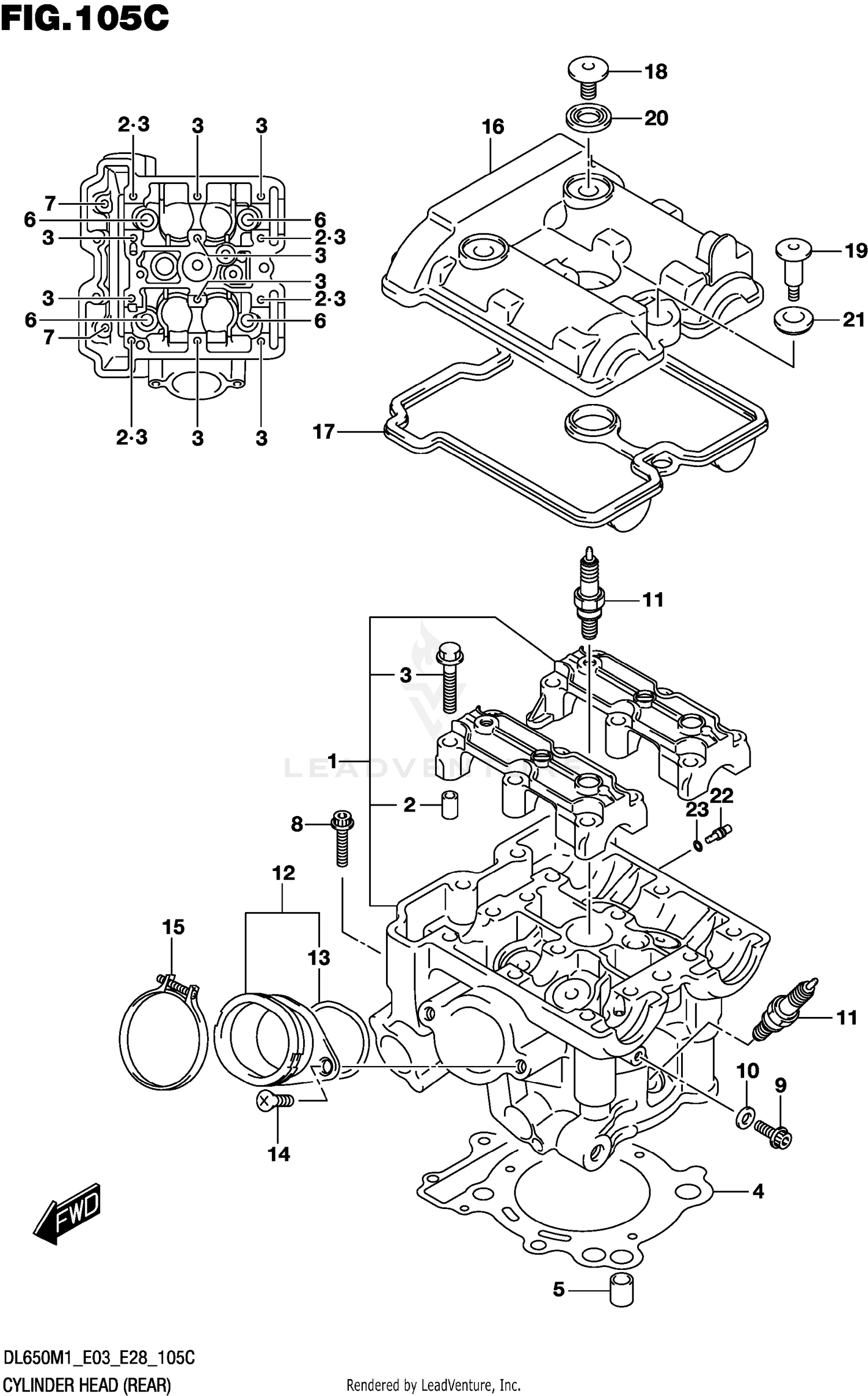

Cylinder Head (rear) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HEAD ASSY,CYLINDER REAR
11103-44H11-000
|
|||
|
Unavailable |
|||
|
#2
.PIN (8X11)
09206-08001-000
|
|||
|
Unavailable |
|||
|
#3
.BOLT (6X40)
09103-06266-000
|
|||
|
Unavailable |
|||
|
#4
.GASKET,CYLINDER HEAD
11141-20F00-000
|
|||
|
Unavailable |
|||
|
#5
PIN (10.4X13X18)
04211-13189-000
|
|||
|
Unavailable |
|||
|
#6
BOLT,CYL HEAD (L160)
11117-44H00-000
|
|||
|
Unavailable |
|||
|
#7
BOLT (6X70)
09103-06103-000
|
|||
|
Unavailable |
|||
|
#8
BOLT
07120-0640A-000
|
|||
|
Unavailable |
|||
|
#9
BOLT
01550-0612A-000
|
|||
|
Unavailable |
|||
|
#10
GASKET (5.8X13X1.2)
09168-06023-000
|
|||
|
Unavailable |
|||
|
#11
SPARK PLUG (MR8E-9)
09482-00646-000
|
|||
|
Unavailable |
|||
|
#12
PIPE ASSY,INTAKE REAR
13102-17G21-000
|
|||
|
Unavailable |
|||
|
#13
.O RING (D:2.4,ID:47X42)
09280-46007-000
|
|||
|
Unavailable |
|||
|
#14
SCREW
02122-0616B-000
|
|||
|
Unavailable |
|||
|
#15
CLAMP,INTAKE PIPE
13827-40H01-000
|
|||
|
Unavailable |
|||
|
#16
COVER,CYLINDER HEAD REAR
11172-19F20-000
|
|||
|
Unavailable |
|||
|
#17
.GASKET,CYLINDER HEAD COVER
11173-19F01-000
|
|||
|
Unavailable |
|||
|
#18
BOLT (7X17.5)
09106-07021-000
|
|||
|
Unavailable |
|||
|
#19
BOLT (L:19)
09106-07010-000
|
|||
|
Unavailable |
|||
|
#20
.WASHER,CYL HEAD COVER (L:5.5
11191-27E00-000
|
|||
|
Unavailable |
|||
|
#21
CUSHION,HEAD COVER BOLT
11192-13E00-000
|
|||
|
Unavailable |
|||
|
#22
JET (#80)
09493-80005-000
|
|||
|
Unavailable |
|||
|
#23
O-RING (D:1.2,ID:4)
09280-04004-000
|
|||
|
Unavailable |
|||
