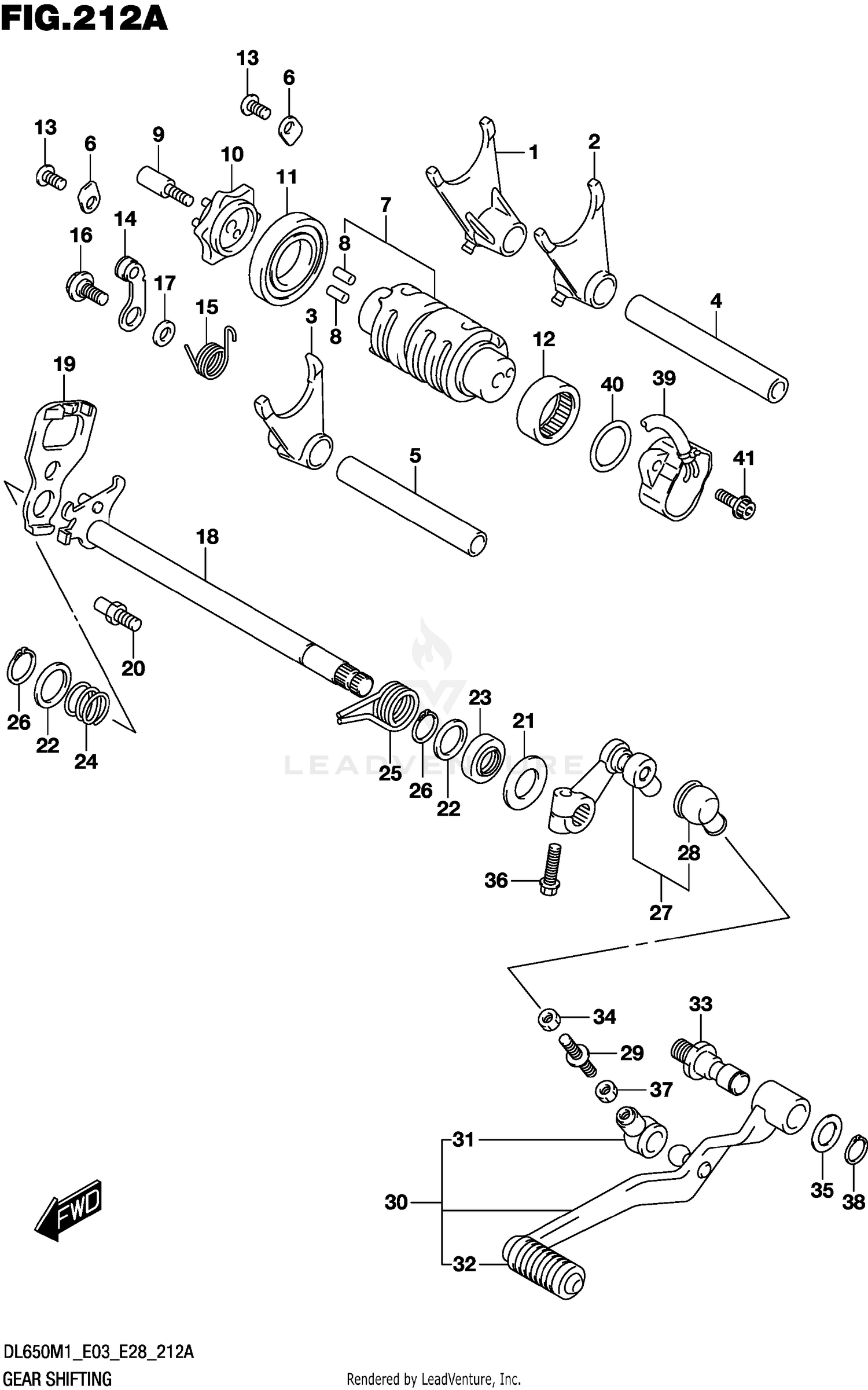

Gear Shifting Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FORK,GEAR SHIFT NO.1
25211-42E20-000
|
|||
|
Unavailable |
|||
|
#2
FORK,GEAR SHIFT NO.2
25221-42E20-000
|
|||
|
Unavailable |
|||
|
#3
FORK,GEAR SHIFT NO.3
25231-42E20-000
|
|||
|
Unavailable |
|||
|
#4
SHAFT,GEAR SHIFT FORK
25411-26D01-000
|
|||
|
Unavailable |
|||
|
#5
SHAFT,GEAR SHIFT FORK,NO.1
25411-44B00-000
|
|||
|
Unavailable |
|||
|
#6
RETAINER
24741-21A00-000
|
|||
|
Unavailable |
|||
|
#7
CAM,GEAR SHIFT
25310-19F00-000
|
|||
|
Unavailable |
|||
|
#8
.PIN
04221-04089-000
|
|||
|
Unavailable |
|||
|
#9
BOLT,GEAR SHIFT CAM PLATE
25312-42F01-000
|
|||
|
Unavailable |
|||
|
#10
PLATE,GEAR SHIFT CAM
25381-19F20-000
|
|||
|
Unavailable |
|||
|
#11
BEARING (25X47X8)
09262-25006-000
|
|||
|
Unavailable |
|||
|
#12
BEARING (25X32X12)
09263-25018-000
|
|||
|
Unavailable |
|||
|
#13
SCREW
02112-0612A-000
|
|||
|
Unavailable |
|||
|
#14
STOPPER,SHIFT CAM
25350-35F00-000
|
|||
|
Unavailable |
|||
|
#15
SPRING,SHIFT
25355-35F01-000
|
|||
|
Unavailable |
|||
|
#16
BOLT (6X14.3)
09111-06041-000
|
|||
|
Unavailable |
|||
|
#17
WASHER
08211-06141-000
|
|||
|
Unavailable |
|||
|
#18
SHAFT,GEAR SHIFT
25510-19F10-000
|
|||
|
Unavailable |
|||
|
#19
PLATE,GEAR SHIFT CAM DRIVE
25512-06G20-000
|
|||
|
Unavailable |
|||
|
#20
STOPPER,GEAR SHIFT ARM
25671-01011-000
|
|||
|
Unavailable |
|||
|
#21
WASHER (14X29X0.8)
09160-14016-000
|
|||
|
Unavailable |
|||
|
#22
SHIM (14X22X1.0)
09181-14167-000
|
|||
|
Unavailable |
|||
|
#23
OIL SEAL (14X22X6.0)
09283-14005-000
|
|||
|
Unavailable |
|||
|
#24
SPRING
09440-17009-000
|
|||
|
Unavailable |
|||
|
#25
SPRING,GEAR SHIFT SHAFT RETUR
25518-06L00-000
|
|||
|
Unavailable |
|||
|
#26
CIRCLIP
08331-3114A-000
|
|||
|
Unavailable |
|||
|
#27
ARM,GEAR SHIFT LINK
25520-27G01-000
|
|||
|
Unavailable |
|||
|
#28
.COVER,DUST
25526-47001-000
|
|||
|
Unavailable |
|||
|
#29
ROD,GEAR SHIFT LINK
25525-27G00-000
|
|||
|
Unavailable |
|||
|
#30
LEVER ASSY,GEAR SHIFT
25600-11J01-000
|
|||
|
Unavailable |
|||
|
#31
.COVER,DUST
25526-47001-000
|
|||
|
Unavailable |
|||
|
#32
.RUBBER,GEAR SHIFT PEDAL
25652-20C00-000
|
|||
|
Unavailable |
|||
|
#33
SHAFT,GEAR SHIFT LEVER
25617-03F10-000
|
|||
|
Unavailable |
|||
|
#34
NUT
08310-00067-000
|
|||
|
Unavailable |
|||
|
#35
WASHER (12.5X20X1.0)
09160-12011-000
|
|||
|
Unavailable |
|||
|
#36
BOLT
01547-0620A-000
|
|||
|
Unavailable |
|||
|
#37
NUT
09140-06025-000
|
|||
|
Unavailable |
|||
|
#38
CIRCLIP
08331-3112A-000
|
|||
|
Unavailable |
|||
|
#39
SENSOR ASSY,GEAR POSITION
37730-44H01-000
|
|||
|
Unavailable |
|||
|
#40
O-RING (D:2.4,ID:26.2)
09280-26005-000
|
|||
|
Unavailable |
|||
|
#41
BOLT (5X16)
09106-05023-000
|
|||
|
Unavailable |
|||
