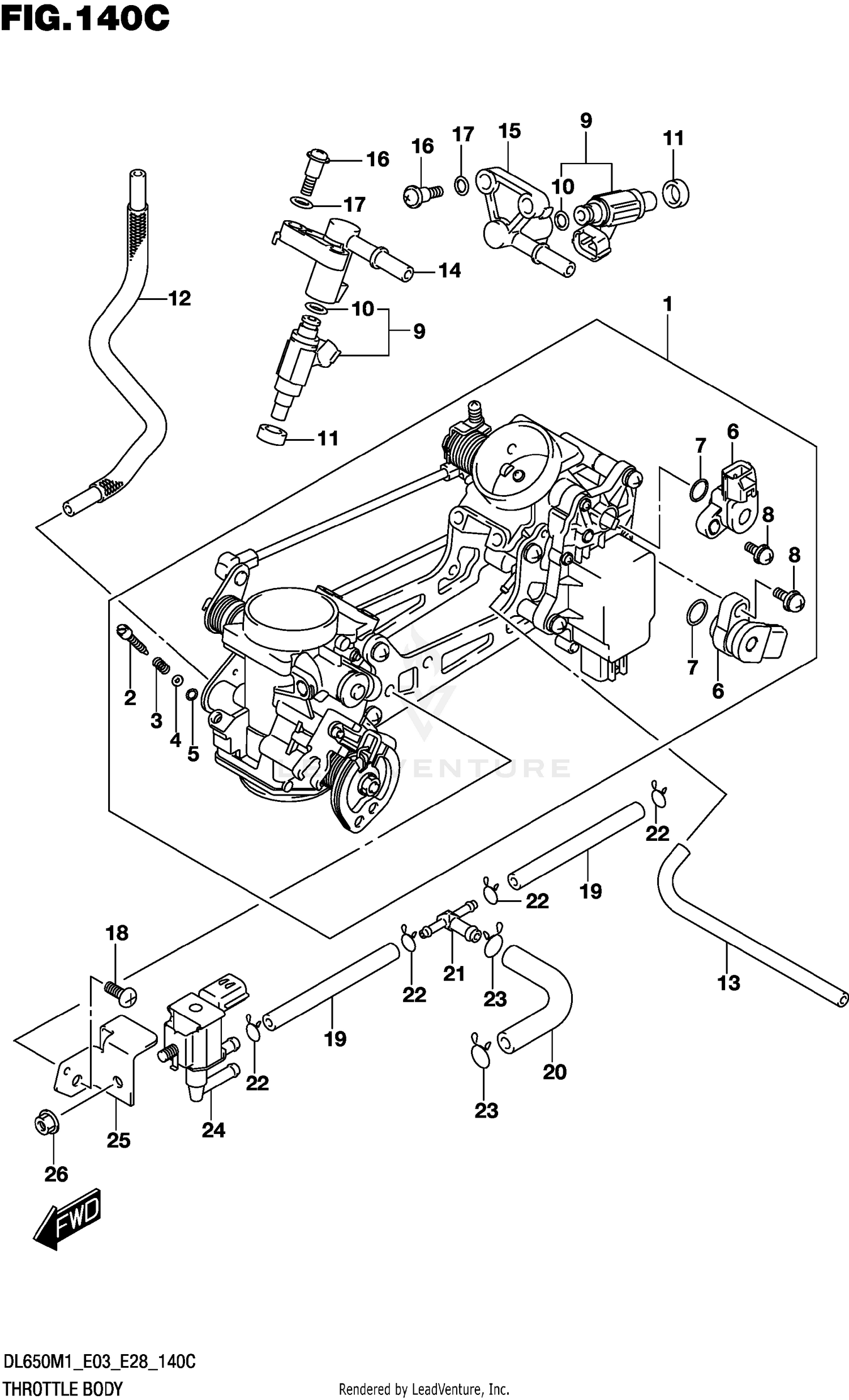

Throttle Body (e33) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BODY ASSY,THROTTLE
13405-28K10-000
|
|||
|
Unavailable |
|||
|
#2
.SCREW
13269-33E00-000
|
|||
|
Unavailable |
|||
|
#3
.SPRING,THROTTLE SCREW
13268-48700-000
|
|||
|
Unavailable |
|||
|
#4
.WASHER
13606-47A00-000
|
|||
|
Unavailable |
|||
|
#5
.O RING
13295-29901-000
|
|||
|
Unavailable |
|||
|
#6
.SENSOR
13580-27G21-000
|
|||
|
Unavailable |
|||
|
#7
.O RING
13575-29G01-000
|
|||
|
Unavailable |
|||
|
#8
.SCREW
13605-02F00-000
|
|||
|
Unavailable |
|||
|
#9
INJECTOR ASSY
15710-11J00-000
|
|||
|
Unavailable |
|||
|
#10
.O-RING
15717-58B00-000
|
|||
|
Unavailable |
|||
|
#11
SEAL
15722-29G00-000
|
|||
|
Unavailable |
|||
|
#12
HOSE
13683-28K01-000
|
|||
|
Unavailable |
|||
|
#13
HOSE
13683-44H11-000
|
|||
|
Unavailable |
|||
|
#14
DELIVERY PIPE
15731-11J00-000
|
|||
|
Unavailable |
|||
|
#15
DELIVERY PIPE
15732-11J00-000
|
|||
|
Unavailable |
|||
|
#16
SCREW,DELIVERY PIPE
13601-11J00-000
|
|||
|
Unavailable |
|||
|
#17
SCREW
13602-06128-000
|
|||
|
Unavailable |
|||
|
#18
PACKING
13602-29G01-000
|
|||
|
Unavailable |
|||
|
#19
HOSE
13681-06G40-000
|
|||
|
Unavailable |
|||
|
#20
HOSE
13683-44H30-000
|
|||
|
Unavailable |
|||
|
#21
NIPPLE
13685-04F10-000
|
|||
|
Unavailable |
|||
|
#22
CLIP
13671-12C00-000
|
|||
|
Unavailable |
|||
|
#23
CLIP
09401-10401-000
|
|||
|
Unavailable |
|||
|
#24
VALVE,CANISTER PURGE
18117-52G10-000
|
|||
|
Unavailable |
|||
|
#25
BRACKET
18119-44H00-000
|
|||
|
Unavailable |
|||
|
#26
NUT (6X12)
08316-1006A-000
|
|||
|
Unavailable |
|||
