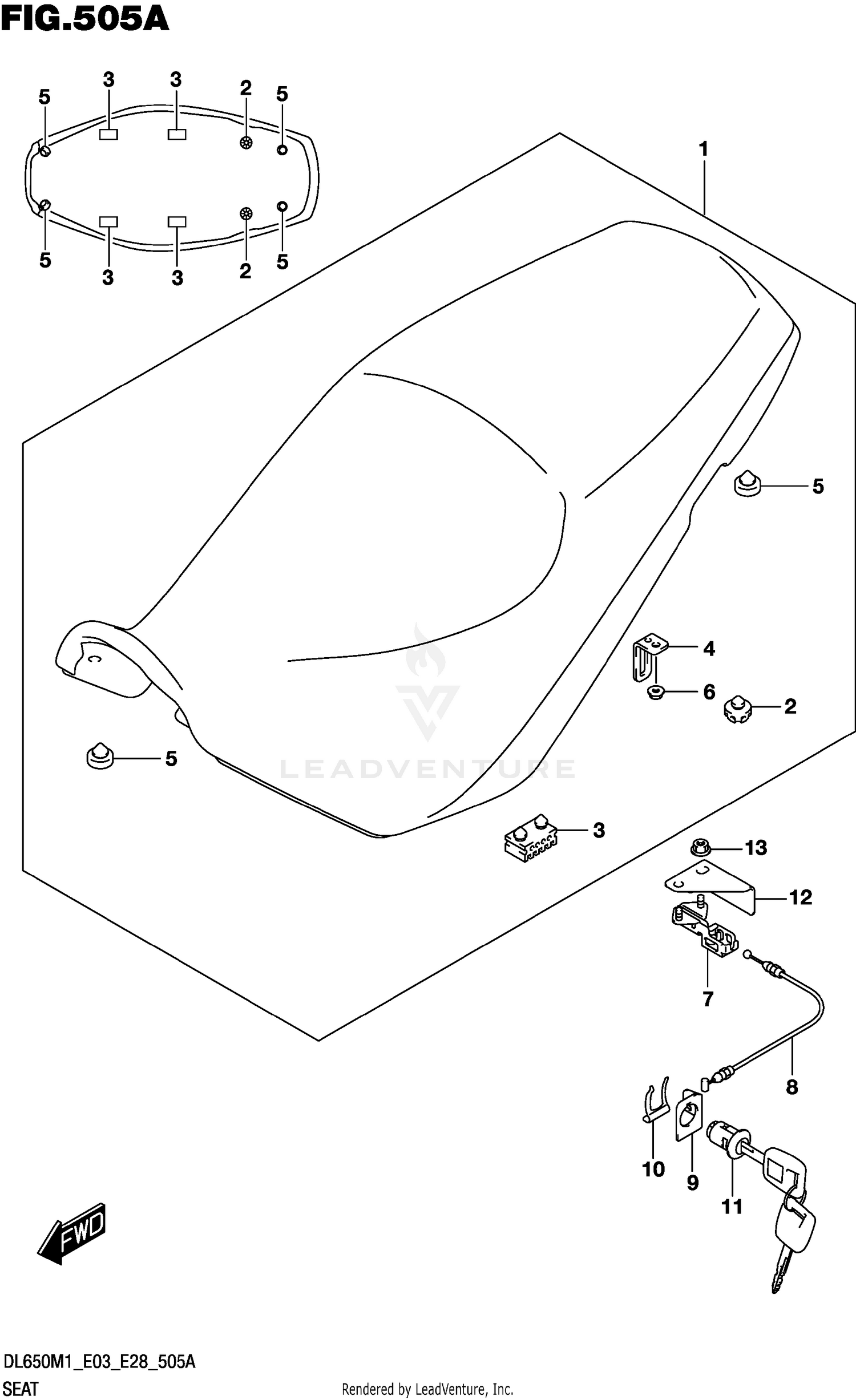

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SEAT ASSY
45100-28K01-BGP
Superseded by 45100-28K02-BGP
|
$460.01 | ||
|
Unavailable |
|||
|
#2
.CUSHION,SEAT MOUNT
45148-20G90-000
|
|||
|
Unavailable |
|||
|
#3
.CUSHION
09321-08006-000
|
|||
|
Unavailable |
|||
|
#4
.STRIKER,SEAT LOCK
45212-18K00-000
|
|||
|
Unavailable |
|||
|
#5
.CUSHION
45148-28K00-000
|
|||
|
Unavailable |
|||
|
#6
NUT (6X12)
08316-1006A-000
|
|||
|
Unavailable |
|||
|
#7
BRACKET,STRIKER SUPPORT
45220-04K20-000
|
|||
|
Unavailable |
|||
|
#8
CABLE,SEAT LOCK
45280-28K00-000
|
|||
|
Unavailable |
|||
|
#9
GUIDE,SEAT LOCK CABLE
45288-14F00-000
|
|||
|
Unavailable |
|||
|
#10
GUARD,SEAT LOCK
45288-28K00-000
|
|||
|
Unavailable |
|||
|
#11
LOCK SET,SEAT
95700-14810-000
|
|||
|
Unavailable |
|||
|
#12
PLATE,SEAT LOCK ASSY
45289-28K00-000
|
|||
|
Unavailable |
|||
|
#13
NUT (6X12)
08316-1006A-000
|
|||
|
Unavailable |
|||
