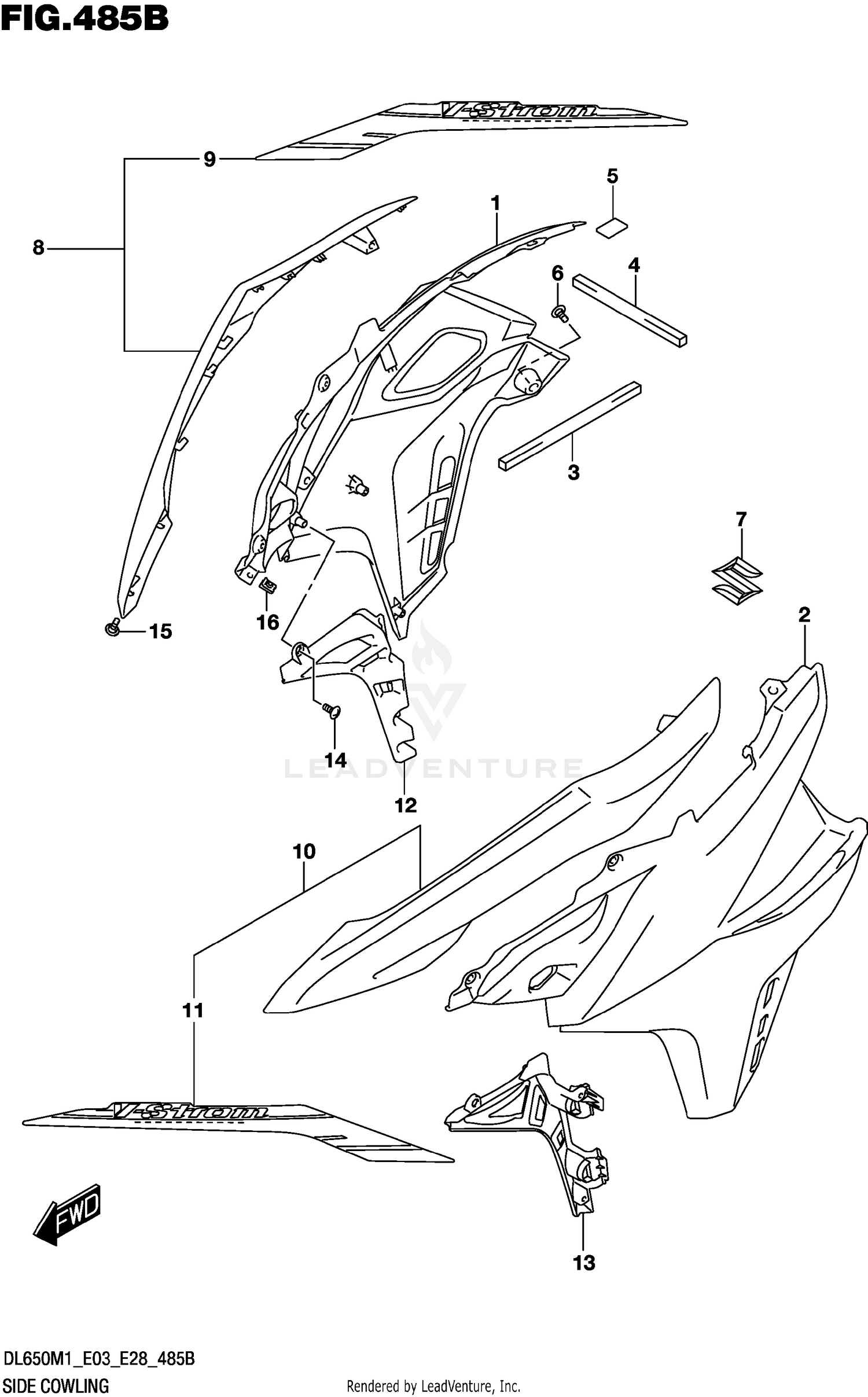

Side Cowling (dl650xa) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER,SIDE COWL RH
94413-28K00-000
|
|||
|
Unavailable |
|||
|
#2
COVER,SIDE COWL LH
94414-28K00-000
|
|||
|
Unavailable |
|||
|
#3
CUSHION (5X120X6)
44176-31J00-000
|
|||
|
Unavailable |
|||
|
#4
CUSHION,TANK COVER SIDE NO.3
44178-31J00-000
|
|||
|
Unavailable |
|||
|
#5
CUSHION (10X20X4)
47829-10F00-000
|
|||
|
Unavailable |
|||
|
#6
SCREW (6X12)
47913-31J00-000
|
|||
|
Unavailable |
|||
|
#7
EMBLEM,S
68111-47HA0-000
|
|||
|
Unavailable |
|||
|
#8-1
COVER, SIDE COWL RH (YELLOW)
94420-28K70-YU1
|
$123.91 | ||
|
Available to order. Add to View Price |
|||
|
#8-2
COVER,SIDE COWL,R (GRAY)
94420-28K70-QEB
|
$122.76 | ||
|
Available to order. Add to View Price |
|||
|
#8-3
COVER, SIDE COWL RH (WHITE)
94420-28K70-YUH
|
$123.91 | ||
|
Available to order. Add to View Price |
|||
|
#8-4
COVER,SIDE COWL,R (RED)
94420-28K70-YYG
|
$122.76 | ||
|
Available to order. Add to View Price |
|||
|
#9-1
.TAPE, COVER SIDE RH
68275-28K70-B5U
|
$38.51 | ||
|
Available to order. Add to View Price |
|||
|
#9-2
.TAPE,COVER SIDE,R (BLUE,GRAY
68275-28K70-B5V
|
$38.51 | ||
|
Available to order. Add to View Price |
|||
|
#9-3
.TAPE, COVER SIDE RH
68275-28K70-B5W
|
$38.51 | ||
|
Available to order. Add to View Price |
|||
|
#9-4
.TAPE,COVER SIDE,R (BLACK,GRA
68275-28K70-B5Y
|
$38.51 | ||
|
Available to order. Add to View Price |
|||
|
#10-1
COVER, SIDE COWL LH (YELLOW)
94430-28K70-YU1
|
$126.25 | ||
|
Available to order. Add to View Price |
|||
|
#10-2
COVER,SIDE COWL,L (GRAY)
94430-28K70-QEB
|
$126.25 | ||
|
Available to order. Add to View Price |
|||
|
#10-3
COVER, SIDE COWL LH (WHITE)
94430-28K70-YUH
|
$126.25 | ||
|
Available to order. Add to View Price |
|||
|
#10-4
COVER,SIDE COWL,L (RED)
94430-28K70-YYG
|
$126.25 | ||
|
Available to order. Add to View Price |
|||
|
#11-1
.TAPE, COVER SIDE LH
68285-28K70-B5U
|
$38.51 | ||
|
Available to order. Add to View Price |
|||
|
#11-2
.TAPE,COVER SIDE,L (BLUE,GRAY
68285-28K70-B5V
|
$38.51 | ||
|
Available to order. Add to View Price |
|||
|
#11-3
.TAPE, COVER SIDE LH
68285-28K70-B5W
|
$38.51 | ||
|
Available to order. Add to View Price |
|||
|
#11-4
.TAPE,COVER SIDE,L (BLACK,GRA
68285-28K70-B5Y
|
$38.51 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER,SIDE COWL INNER RH
94461-28K00-000
|
|||
|
Unavailable |
|||
|
#13
COVER,SIDE COWL INNER LH
94462-28K00-000
|
|||
|
Unavailable |
|||
|
#14
SCREW
03541-0512A-000
|
|||
|
Unavailable |
|||
|
#15
SCREW (5X13)
09139-05091-000
|
|||
|
Unavailable |
|||
|
#16
.NUT (M5)
09148-05052-000
|
|||
|
Unavailable |
|||
